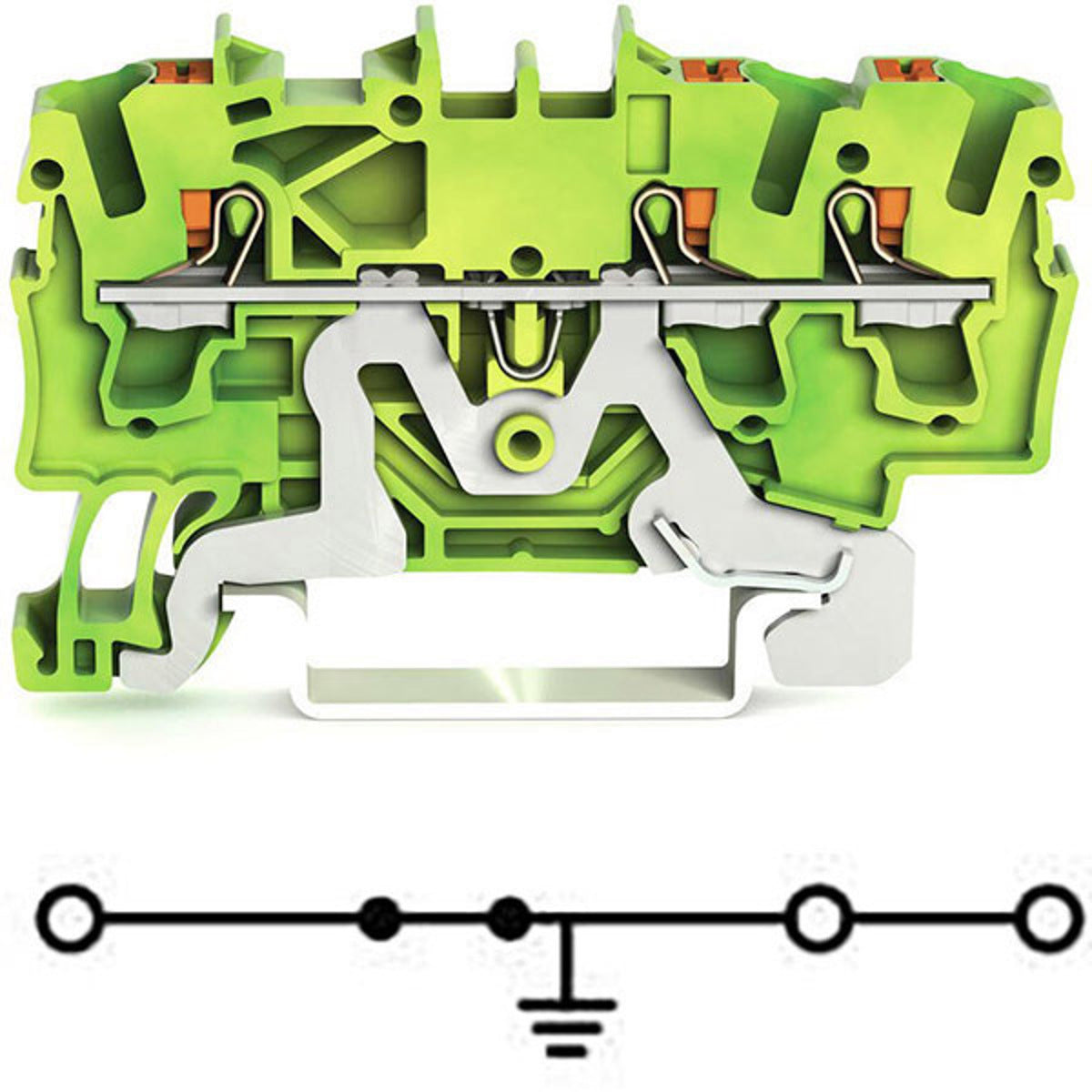

WAGO 2202-1307 Ground/Earthing Terminal Block with 1-Deck/Level + Btn. + Side and Center Marking Slot - With Test Port

Product Description

The WAGO 2202-1307 is a reliable ground and earthing terminal block designed for efficient electrical connections. It is suitable for various applications, featuring a push-in cage clamp for easy installation. This unit supports three wires with a nominal cross-section of 2.5 mm² and works with conductor ranges from 0.25 mm² to 4 mm² or from #22 AWG to #12 AWG.

• Push-button actuator for secure connections
• Mounts on DIN-35 rail with a width of 5.2 mm
• Constructed from durable polyamide material

Product Highlights

The terminal block includes a test port and a clear marking slot for easy identification. With terminals supporting cage clamps, it allows for solid and dependable connections.

Product Information

Standard Information

• Manufacturer: WAGO
• Catalog Number: 2202-1307

Technical Specifications

• Actuator: Push-button
• Color: Green-yellow
• Conductor Material: Copper
• Conductor Range: 12-22 AWG
• Connection: Terminals (Cage-clamp)
• Material: Polyamide (PA66)
• Mounting: DIN Rail
• Weight: 9.21 grams
• Dimensions: H59.2 mm x W5.2 mm x D32.9 mm
• GTIN: 4055143713856
• RoHS Indicator: Yes
