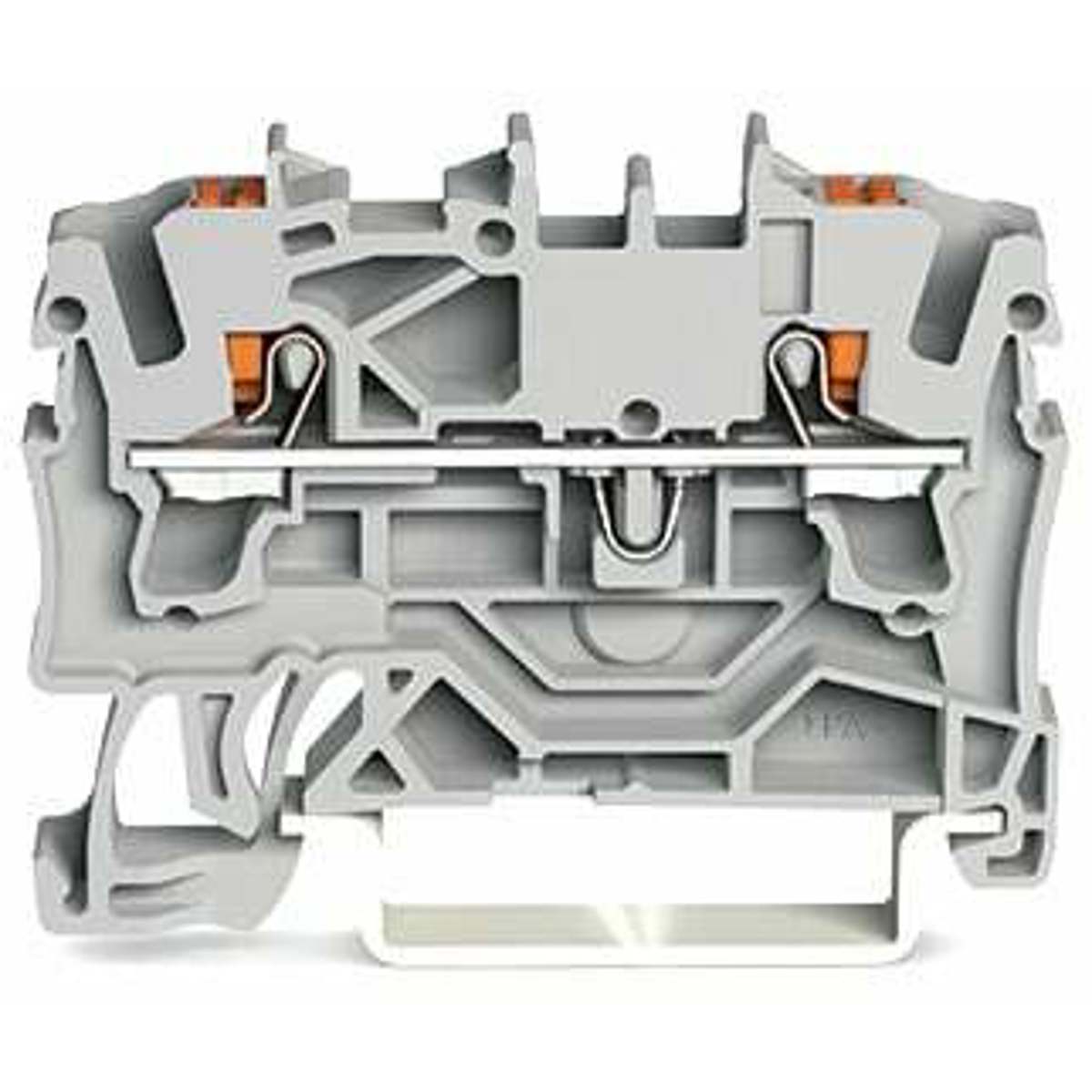

WAGO 2202-1209 Feed-Through Terminal Block Push-In 24A Light Gray

Product Description

The WAGO 2202-1209 feed-through terminal block is engineered for efficient power distribution in industrial settings, suitable for Ex e II applications. This light gray terminal block facilitates streamlined installations with its innovative push-in cage clamp spring connections, designed for rapid wiring while ensuring reliable conductivity.

• Includes a centrally located test port for easy maintenance checks.
• Supports conductor sizes from 22AWG to 12AWG, accommodating a nominal cross section of 2.5mm2.
• Rated for currents up to 24A, supporting voltage ratings up to 800V.

Product Highlights

Optimized for mounting on DIN-35 rails, the compact design of this terminal block measures 48.5mm in height and just 5.2mm in width, making it an ideal choice for space-constrained environments. The polyamide construction enhances durability, suited for demanding industrial conditions.

Product Information

Standard Information

• MPN: 2202-1209
• Brand: WAGO
• Material: Polyamide (PA66)

Technical Specifications

• Connection Type: Cage-clamp terminals
• Current Rating: 24 A
• Voltage Rating: 800
• Color: Light gray
• Mounting Type: DIN Rail
• Conductor Range: 12-22 AWG
• Dimensions: H48.5mm x W5.2mm x D32.9mm
• Country of Origin: Germany
