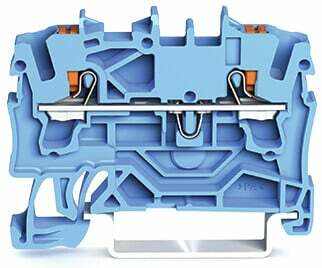

WAGO 2202-1204 Neutral-Through Terminal Block with Push-In Connections

Product Description

The WAGO 2202-1204 is a neutral-through terminal block designed for Ex e II and Ex I applications. It features a test port and can handle up to 24A. This terminal block allows for the connection of two wires using two push-in connections. It is suitable for conductors ranging from 0.25mm² to 4mm², accommodating wire sizes from #22 AWG to #12 AWG.

• Test port for easy testing
• Push-in CAGE CLAMP spring connections
• DIN rail mounting for easy installation

Product Highlights

Ideal for power distribution in hazardous environments, this terminal block is made of durable polyamide material and is simple to use. The smart design accommodates various wire sizes and ensures secure connections in electrical installations.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer: WAGO

Technical Specifications

• Catalog Number: 2202-1204
• Current Rating: 24A
• Voltage Rating: 800V
• Conductor Range: 12-22 AWG
• Nominal Cross Section: 2.5mm²
• Material: Polyamide (PA66)
• Country of Origin: Germany
• Mounting Type: DIN Rail
