Product Description

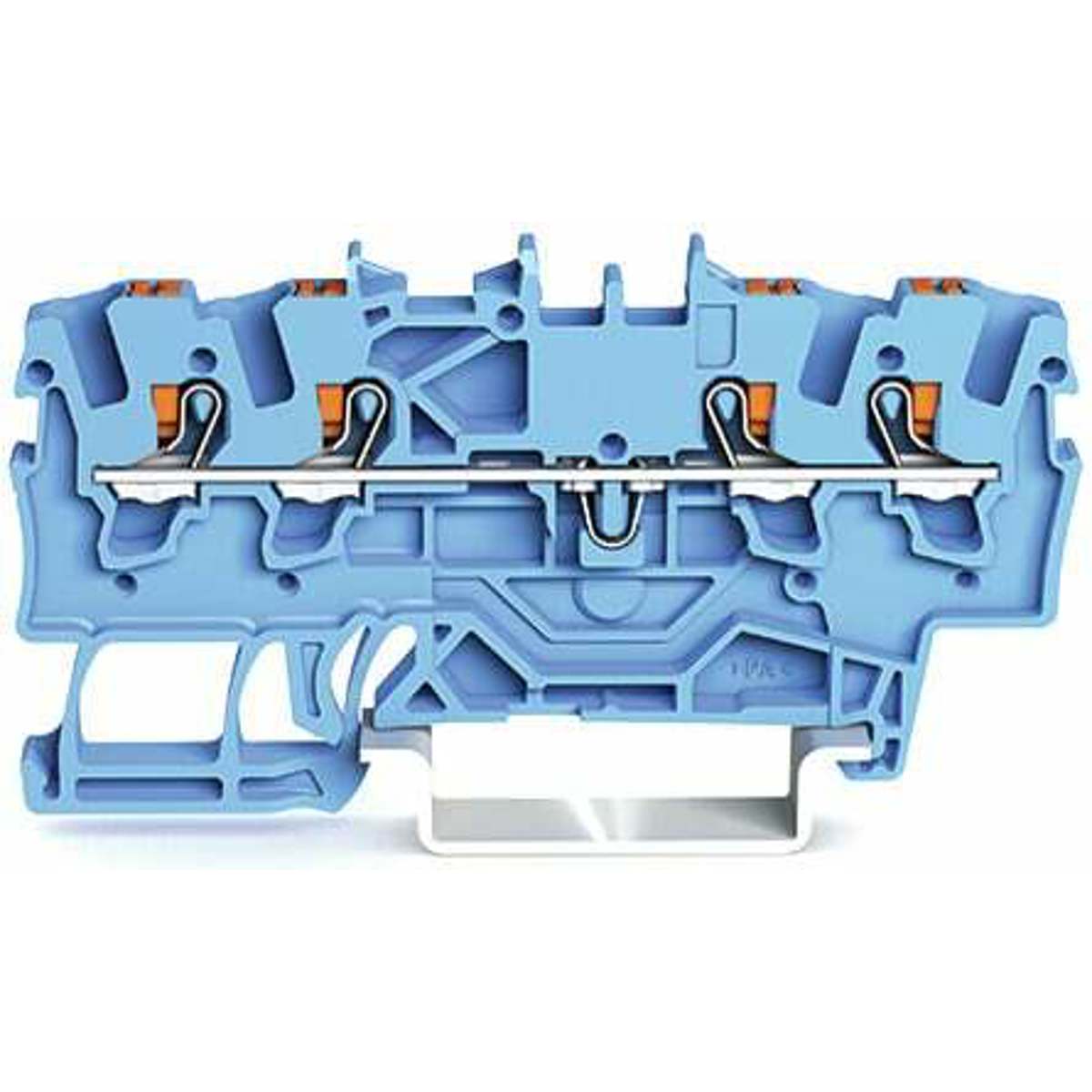

The WAGO 2201-1404 Neutral-Through Terminal Block is designed for secure and reliable electrical connections in challenging environments. Manufactured in Germany, this blue terminal block is part of the TOPJOB S series and is ideal for Ex e II / Ex I applications.
- Features push-in CAGE CLAMP spring connections for quick wiring without tools.
- Supports a conductor range from 14 AWG to 22 AWG, ensuring versatility in connectivity.
- Compatible with DIN-35 rail mounting, allowing for easy and stable installation.
Product Highlights
This terminal block is equipped with a test port and dual push-in connectivity on each side, promoting efficient testing and flexible usage. With its polyamide build, it guarantees durability and resistance against environmental factors.
Product Information
Standard Information
Technical Specifications
-
Connection Type: Terminals (Cage-clamp)
-
Current Rating: 18 A
-
Nominal Cross Section: 1.5 mm²
-
Voltage Rating: 800 V
-
Material: Polyamide (PA66)
-
Mounting Type: Din Rail
-
Dimensions: H69.9mm x W4.2mm x D32.9mm
-
Weight: 5.993 grams
