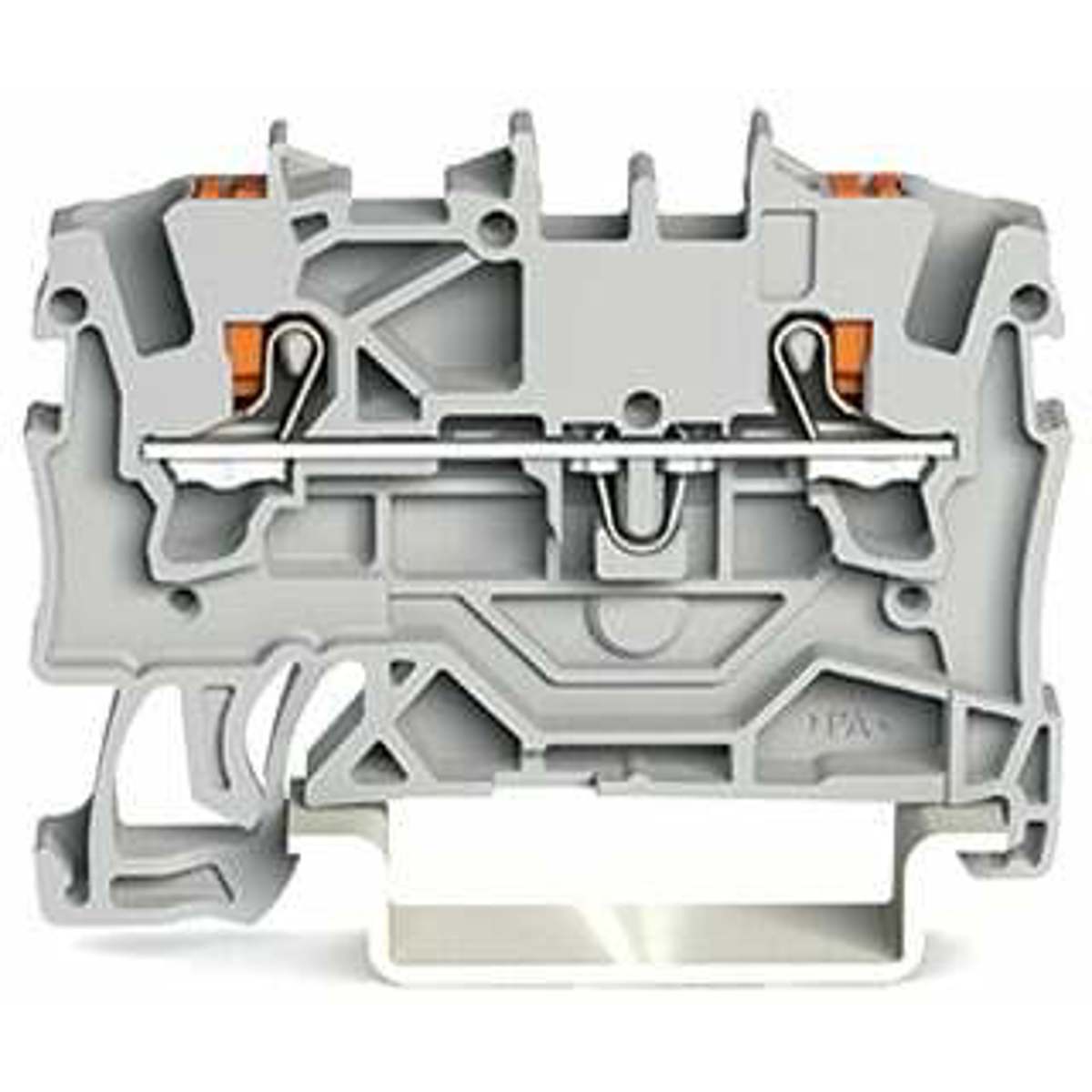

WAGO 2201-1201 Topjob S Series Terminal Block 18A Gray

Product Description

The WAGO 2201-1201 Topjob S Series Terminal Block provides efficient and reliable wire connections with a feed-through pole configuration, suitable for Ex e II applications. Crafted from high-quality polyamide (PA66), this terminal block features push-in CAGE CLAMP spring connections accommodating conductor sizes from #22AWG to #14AWG.

• Designed for push-button actuation and easy wiring.
• Supports a nominal cross section of 1.5mm².
• Mountable on standard DIN-35 rails for versatile installation.

Product Highlights

This terminal block excels in environments requiring stringent explosion safety measures and provides a reliable connection for rated currents up to 18A. Its compact design, featuring dimensions of 48.5mm in height and 4.2mm in width, allows for optimal use of space on the rail.

Product Information

Standard Information

• Brand: WAGO
• MPN: 2201-1201
• Color: Gray
• Material: Polyamide (PA66)

Technical Specifications

• Connection Type: Push-in Terminals (Cage-clamp)
• Conductor Range: 14-22 AWG
• Current Rating: 18 A
• Mounting Type: Din Rail
• Width: 0.165 inches
• Height: 1.909 inches
• Weight: 4.091 grams
• Voltage Rating: 800 volts
