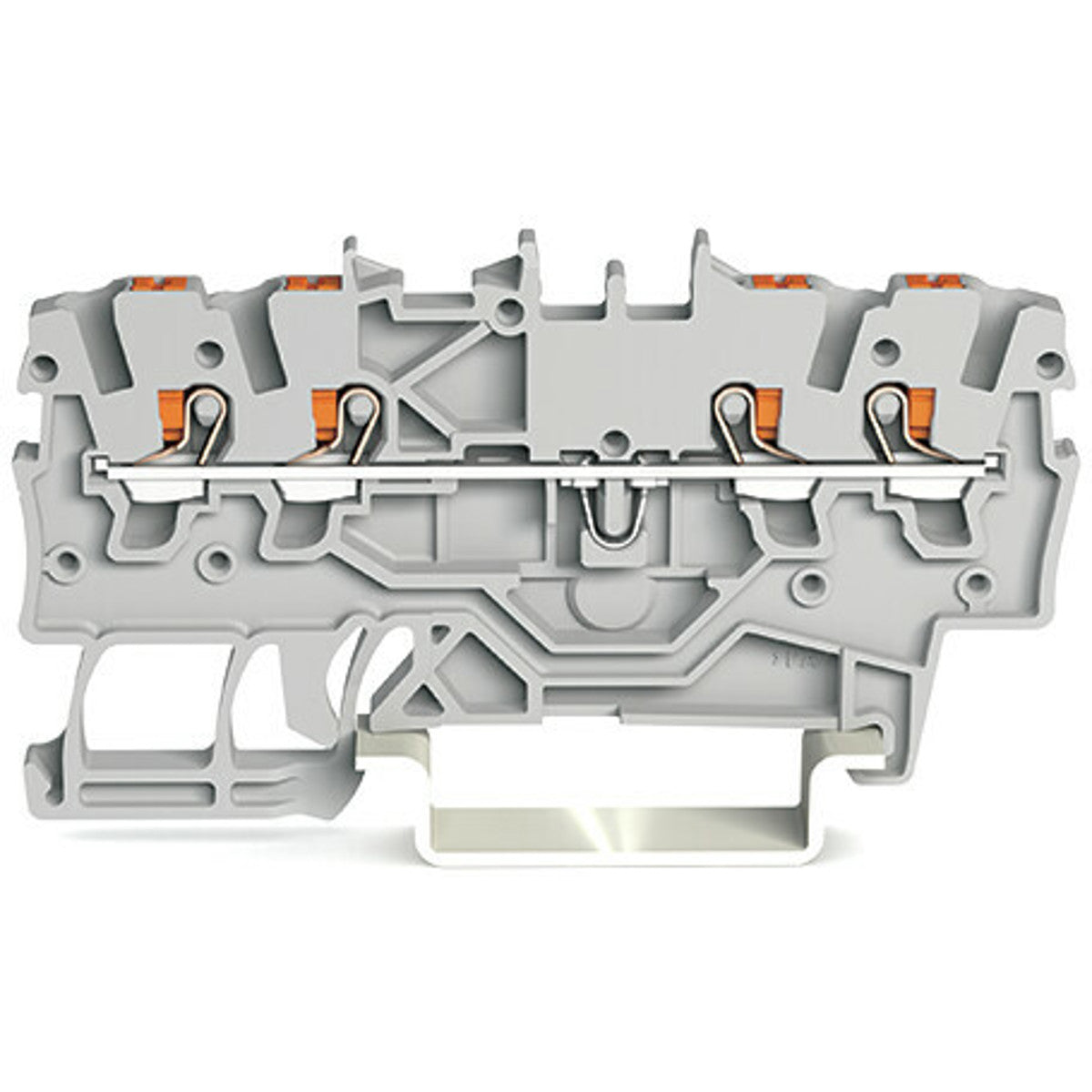

WAGO 2200-1401 Feed-through Terminal Block 13.5A 800V Push-in Cage Clamp Mount

Product Description

The WAGO 2200-1401 Feed-through Terminal Block ensures reliable electrical connections in power distribution applications. Manufactured by WAGO, a reputable leader in electrical components, this terminal block is designed for mounting on DIN-35 rails and supports wire sizes from 16 to 24 AWG.

• Equipped with push-button actuation for easy operation.
• Features polyamide housing for durability and resistance to environmental factors.
• Designed using Cage Clamp technology for secure, maintenance-free connections.

Product Highlights

This terminal block is rated for currents up to 13.5A and voltages up to 800V, making it suitable for a wide range of applications in power distribution. Its compact design (width of only 0.138 inches) allows for efficient use of space within electrical enclosures.

Product Information

Standard Information

• Brand: WAGO
• MPN: 2200-1401

Technical Specifications

• Color: gray
• Material: Polyamide (PA66)
• Mounting: Din Rail
• Connection Type: Cage-clamp
• Current Rating: 13.5 A
• Voltage Rating: 800
• Conductor Range: 16-24 AWG
• Dimensions: H67.9mm x W3.5mm x D32.9mm
