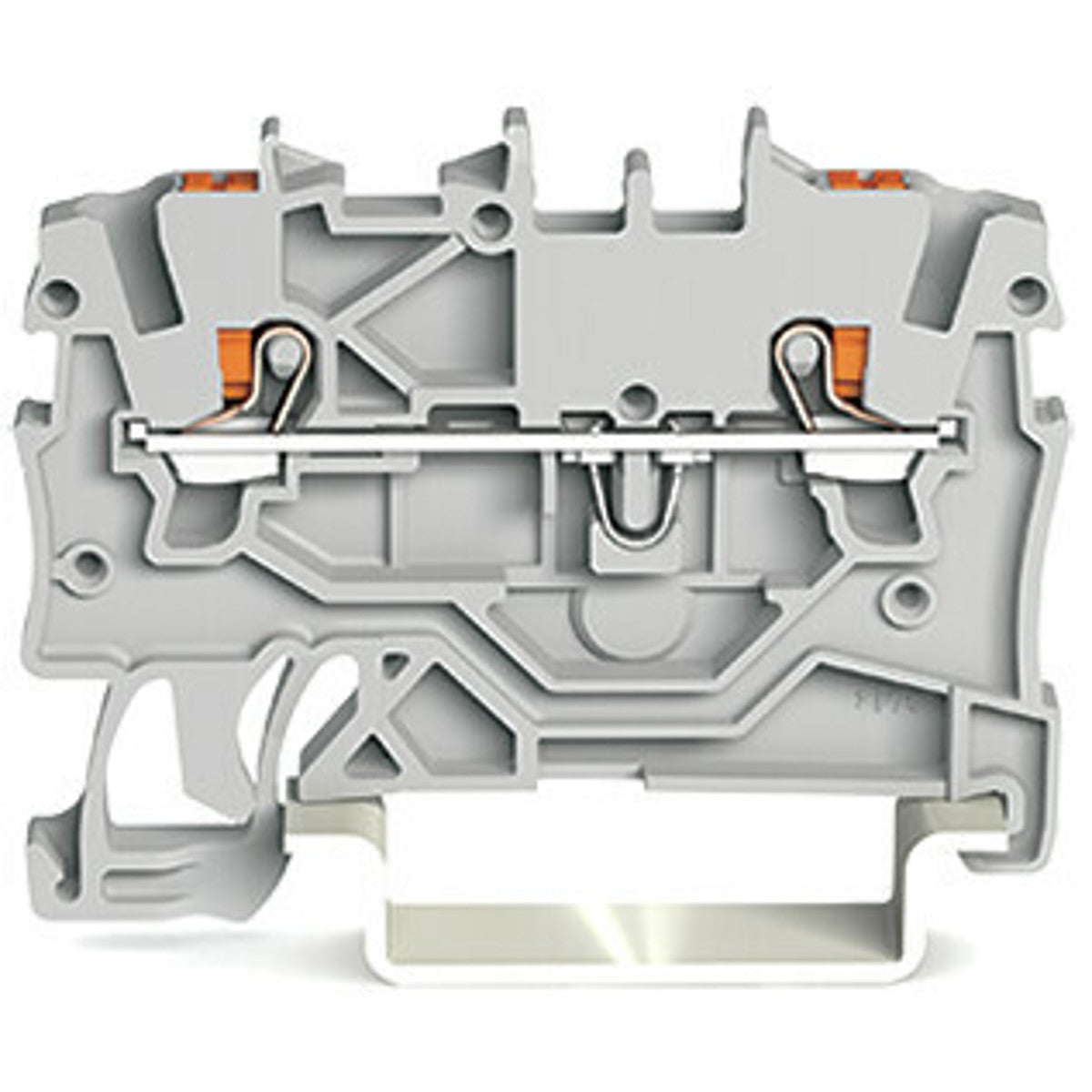

WAGO 2200-1201 Terminal Block for Power Distribution Gray

Product Description

The WAGO 2200-1201 terminal block is engineered for effective power distribution in professional electrical installations. It features a one-deck design with a gray color scheme, suitable for Ex e II applications. This terminal block is specifically crafted for a nominal cross-section of 1mm2.

• Push-in CAGE CLAMP spring connections for secure wiring.
• Rated for currents up to 13.5 A and voltage up to 800 volts.
• Din Rail mounting offers flexibility in installation.

Product Highlights

The WAGO 2200-1201 provides reliable connections with its copper conductors and polyamide build, ensuring durability and resistance against environmental factors. Its compact design, measuring just 3.5mm in width, makes it an ideal choice for tight spaces.

Product Information

Standard Information

• Connection Type: Push-in terminals
• AWG Compatibility: 16-24 AWG conductor range

Technical Specifications

• Dimensions: 48.5mm height x 3.5mm width x 32.9mm depth
• Material: Polyamide (PA66)
• Mounting: DIN-35 rail
• Current Rating: 13.5 A
• Voltage Rating: 800 V
