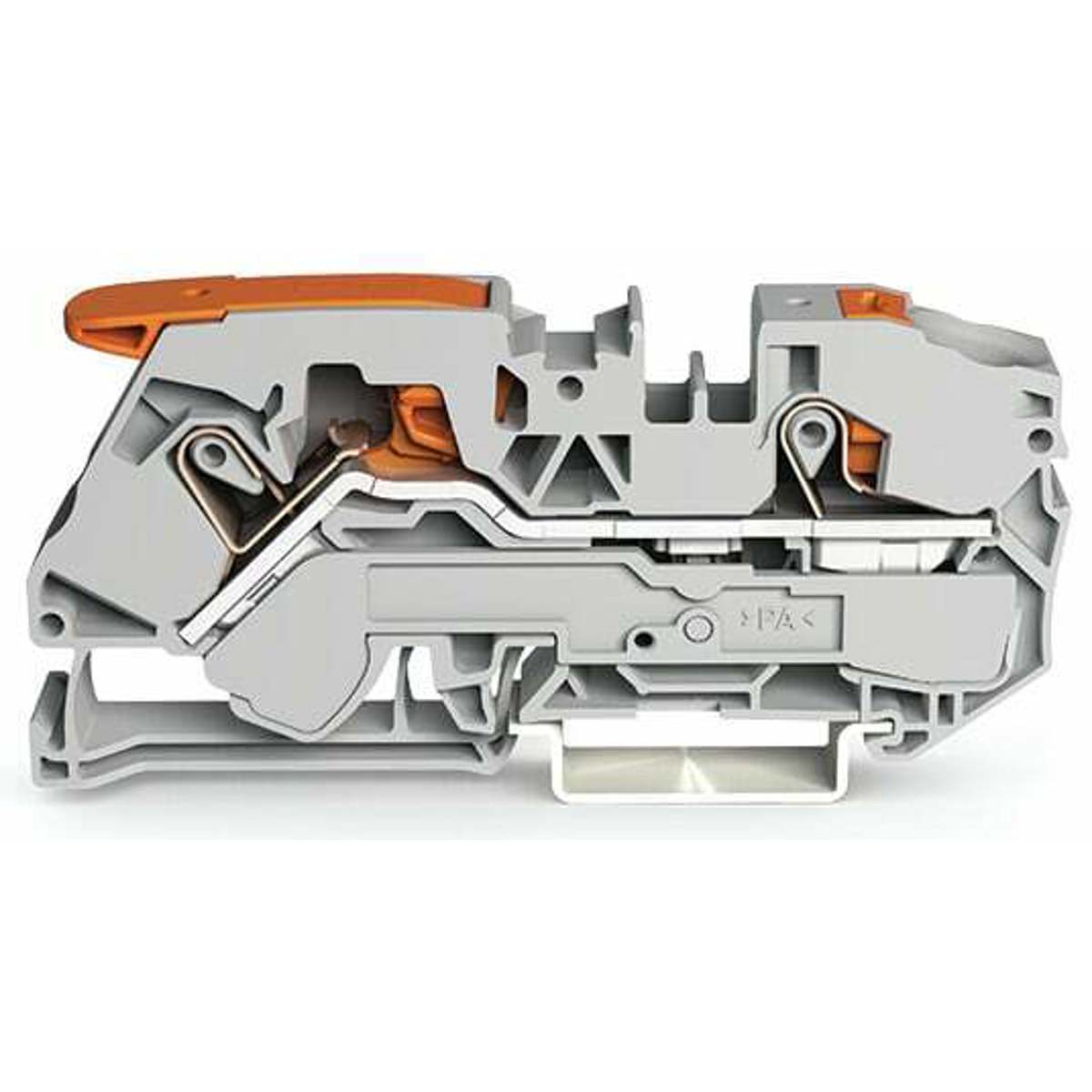

WAGO 2116-5201 Terminal Block 76A 1P 2-Wires Push-In

Product Description

The WAGO 2116-5201 is a high-quality feed-through terminal block designed for professional use in electrical and power distribution. Manufactured in Germany, this terminal block is suitable for Ex e II applications and features robust polyamide construction with copper conduitors for superior performance.

• Push-in CAGE CLAMP spring connections for quick installation.
• Compatible with #20AWG to #4AWG wire sizes.
• Designed for mounting on DIN-35 rails, ensuring secure and reliable installation.

Product Highlights

This terminal block supports a nominal cross-section of 16 mminchu00b2 and operates with a current rating of 76A. It is equipped with lever actuation for easy handling and has a compact design with dimensions measuring 3.602 inches in height and 0.472 inches in width.

Product Information

Standard Information

• Actuator Type: Lever
• Material: Polyamide (PA66)
• Connection Type: Cage-clamp Terminals

Technical Specifications

• Current Rating: 76 A
• Wire Size: 6-20 AWG
• Mounting Standard: DIN Rail
• Product Dimensions: H91.5mm x W12mm x D37.1mm
