Product Description

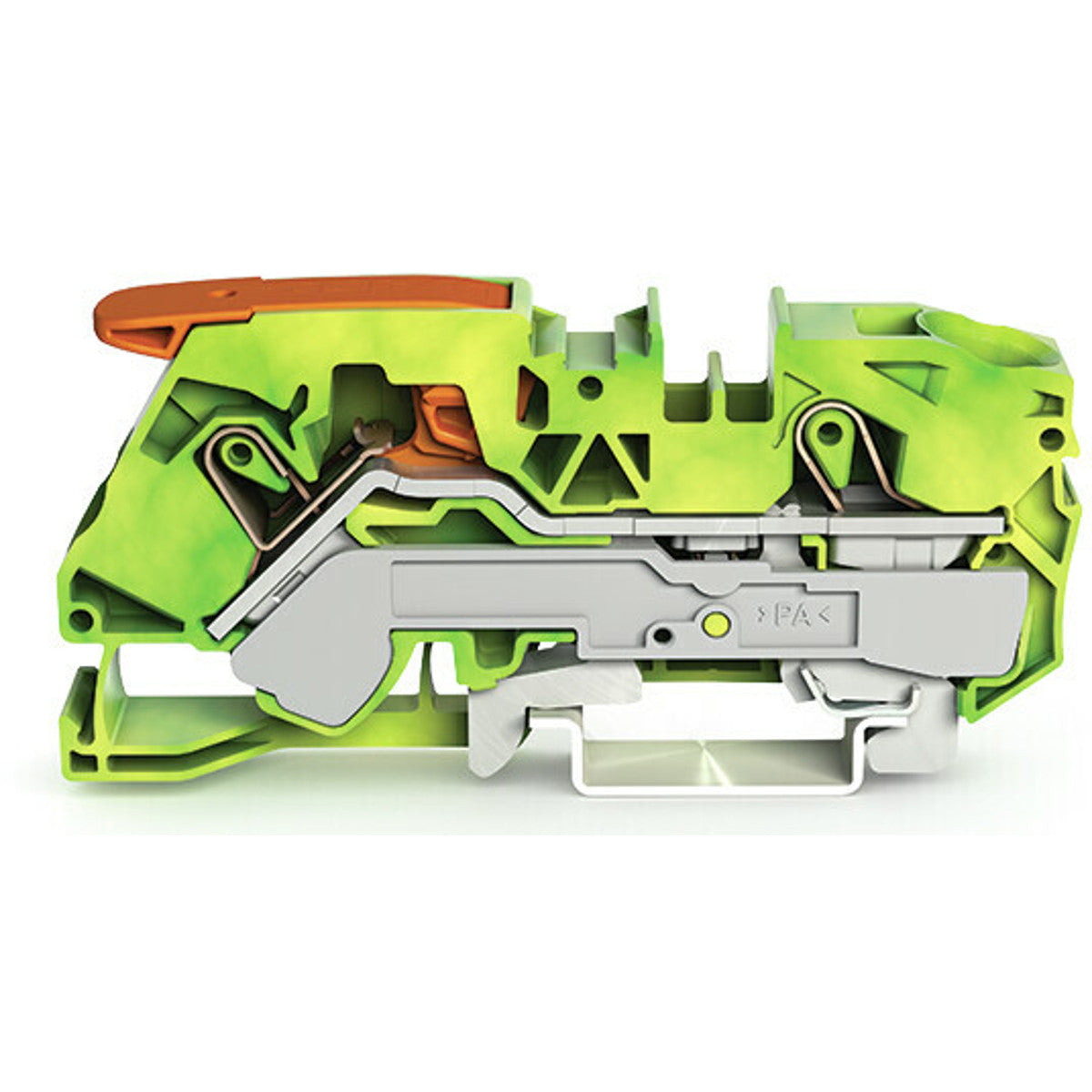

The WAGO 2116-1207 Terminal Block is designed for efficient grounding and earthing applications in electrical circuits. This model, part of the TOPJOB S series, is notable for its green-yellow color coding, which signifies safety and compliance. It features a nominal cross-section for main feed-through conductors of 16mm2, making it suitable for a wide variety of wire sizes, from 0.5mm2 to 25mm2 or #20AWG to #4AWG.
- Simple push-in connection system for quick installation and maintenance.
- Dual-wire entry improves versatility and application scope.
- Designed with a lever actuator for easy operation and secure connections.
Product Highlights
This terminal block supports push-in CAGE CLAMP spring connections and is mountable on DIN-35 rails, providing a solid and reliable installation.
Product Information
Standard Information
-
Brand: WAGO
-
GTIN: 4055143754446
Technical Specifications
-
Manufacturer: WAGO
-
Country of Origin: Germany
-
Material: Polyamide (PA66)
-
Mounting Type: Din Rail
-
Color: Green-Yellow
-
Connection Type: Terminals (Cage-clamp)
-
Dimensions: Height: 91.5 mm, Width: 12 mm, Depth: 36.9 mm
-
Weight: 39.781 Grams
