Product Description

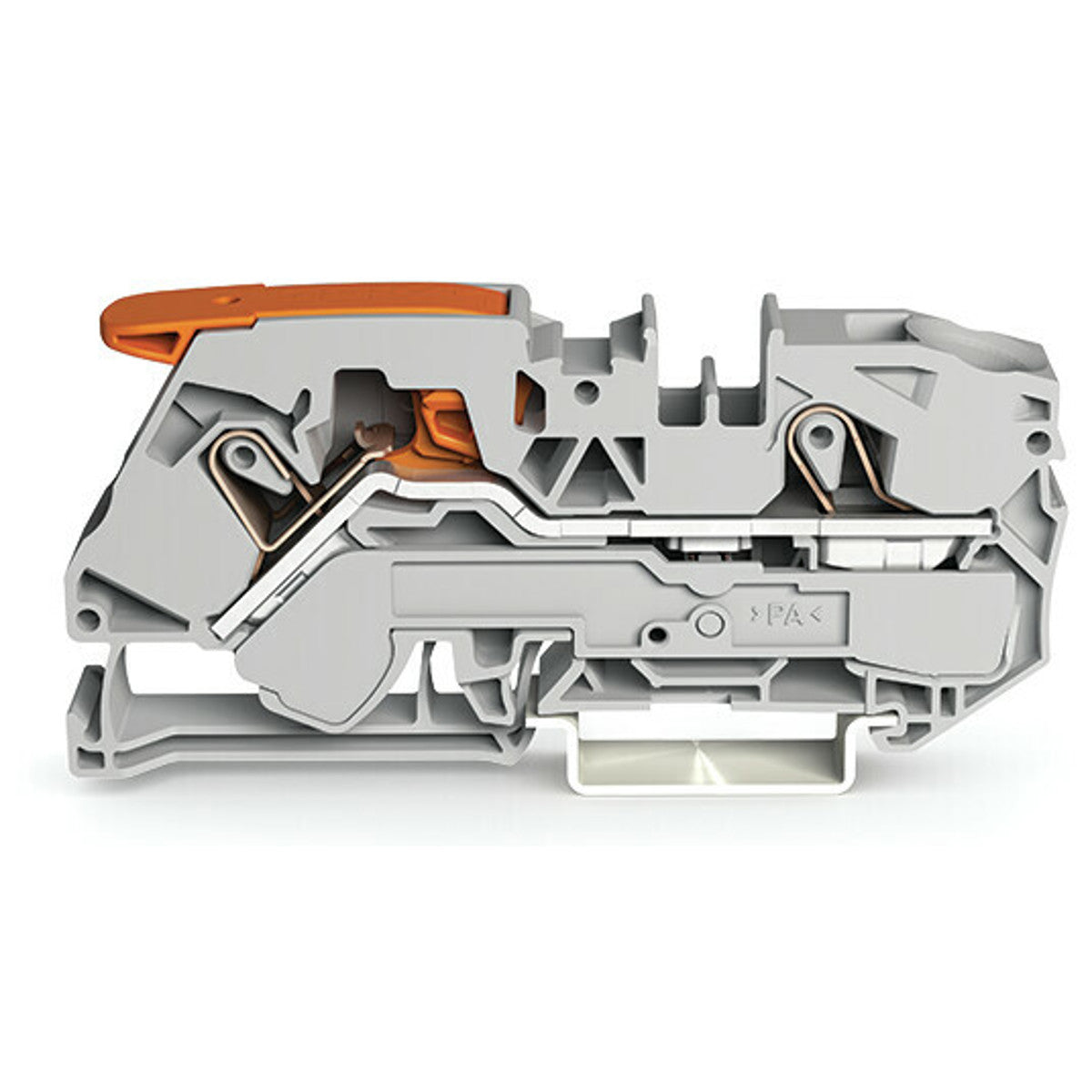

The WAGO 2116-1201 is a feed-through terminal block designed for efficient wire organisation and secure connections. This product, part of the TOPJOB S Series, supports a wide range of wire sizes and is suitable for applications requiring up to 76A current and 800V voltage ratings.
- Push-in CAGE CLAMP spring connections for quick installation.
- Gray polyamide build ensures durability and resistance to environmental factors.
- Compact design with dimensions of 91.5mm height, 12mm width, and 36.9mm depth, making it ideal for dense wiring setups.
Product Highlights
Featuring a lever actuator and dual wire entry, it allows straightforward wiring adjustments. The central marking area enhances the visibility of wire identifications.
Product Information
Standard Information
-
Country of Origin: Germany
-
RoHS Indicator: Yes
Technical Specifications
-
Current Rating: 76 A
-
Voltage Rating: 800 V
-
Connection Type: Push-in CAGE CLAMP
-
Conductor Range: 6-20 AWG
-
Mounting Type: Din Rail
-
Material: Polyamide (PA66)
-
Dimensions: H91.5mm x W12mm x D36.9mm
