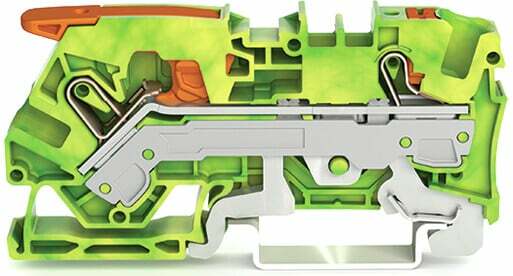

WAGO 2106-5207 Ground/Earthing Terminal Block 1 Deck 1 Lever Green-Yellow

Product Description

The WAGO 2106-5207 terminal block is designed for efficient grounding and earthing applications, ensuring a secure and reliable electrical connection. This product is part of the WAGO TOPJOB S series and is crafted for high-performance use, especially in explosive environments (Ex e II applications).

• Durable and versatile with a green-yellow color coding for easy identification.
• Supports a conductor range of #20AWG to #8AWG, accommodating a wide variety of wire sizes.
• Features Push-in CAGE CLAMP spring connections for quick and effective wire securing.

Product Highlights

Equipped with a lever actuator and dual push-in connection ports, this terminal block simplifies installations. Its compact design, measuring only 0.295 inches in width, allows for efficient use of space on DIN-35 rails.

Technical Specifications

• Manufacturer: WAGO
• Color: Green-Yellow
• Material: Polyamide (PA66)
• Mounting Type: DIN Rail
• Dimensions: Height: 2.961 inches, Width: 0.295 inches, Depth: 1.296 inches
• Weight: 23.381 grams
• Connection Type: Terminals (Cage-clamp)
• Compliance: RoHS
