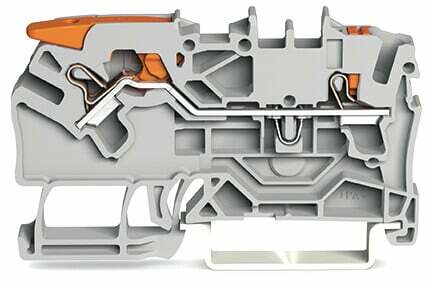

WAGO 2102-5201 Feed-through Terminal Block 24A 32A 5.2mm

Product Description

The WAGO 2102-5201 Feed-through Terminal Block is a compact solution for efficient electrical connections. Designed to meet Ex e II applications, this terminal block offers flexibility and reliability in various industrial environments.

• Push-in CAGE CLAMP spring connections for quick and secure wiring.
• Integrated test port and dual entry wiring facilitate maintenance and testing.
• Gray polyamide housing ensures durability and supports DIN-rail mounting.

Product Highlights

This terminal block supports a wire size range from 22 AWG to 12 AWG and can handle a rated current of 24A to 32A, meeting rigorous industry standards. Its slim profile of 5.2mm width allows for high-density mounting on standard DIN-35 rails, optimizing space within control panels.

Product Information

Standard Information

• Catalog number: 2102-5201
• Brand: WAGO

Technical Specifications

• Dimensions: H61.5mm x W5.2mm x D32.9mm
• Rated Voltage: 800V
• Rohs Compliance: Yes
• Connection Type: Push-in Cage Clamp
• Material: Polyamide (PA66)
• Mounting Type: DIN Rail
• Color: Gray
