Product Description

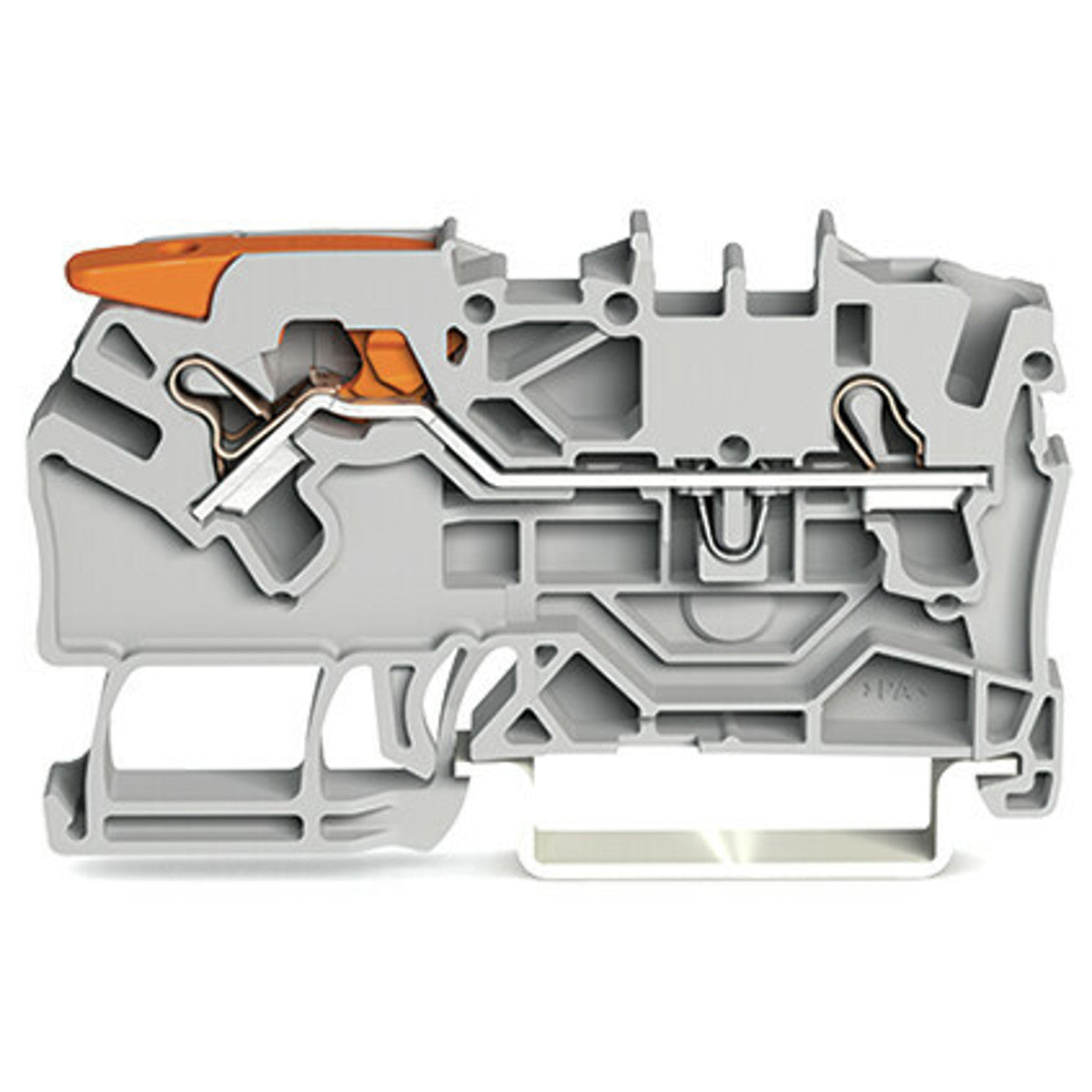

WAGO's 2102-1201 Topjob S Terminal Block provides a reliable and efficient method for wiring, suitable for Ex e II applications. This gray terminal block features a single-deck with easy-to-use lever operation and dual push-in connection for solid and flexible conductors. Designed for mounting on DIN-35 rails, it makes installation quick and secure.
- Supports a conductor range of 12-22 AWG, accommodating various wire sizes.
- Equipped with a test port for straightforward testing and maintenance.
- The nominal cross-section of 2.5mm2 supports a current rating of up to 24A.
Product Highlights
This terminal block is crafted from durable polyamide (PA66) ensuring long-term reliability. The innovative push-in CAGE CLAMP technology offers a vibration-proof, thermal-resistant, and maintenance-free connection.
Product Information
Technical Specifications
-
Catalog Number: 2102-1201
-
Current Rating: 24 A
-
Conductor Range: 12-22 AWG
-
Connection Type: Push-in CAGE CLAMP
-
Mounting: DIN Rail
-
Material: Polyamide (PA66)
-
Dimensions: Height 61.5mm x Width 5.2mm x Depth 32.9mm
-
Color: Gray
