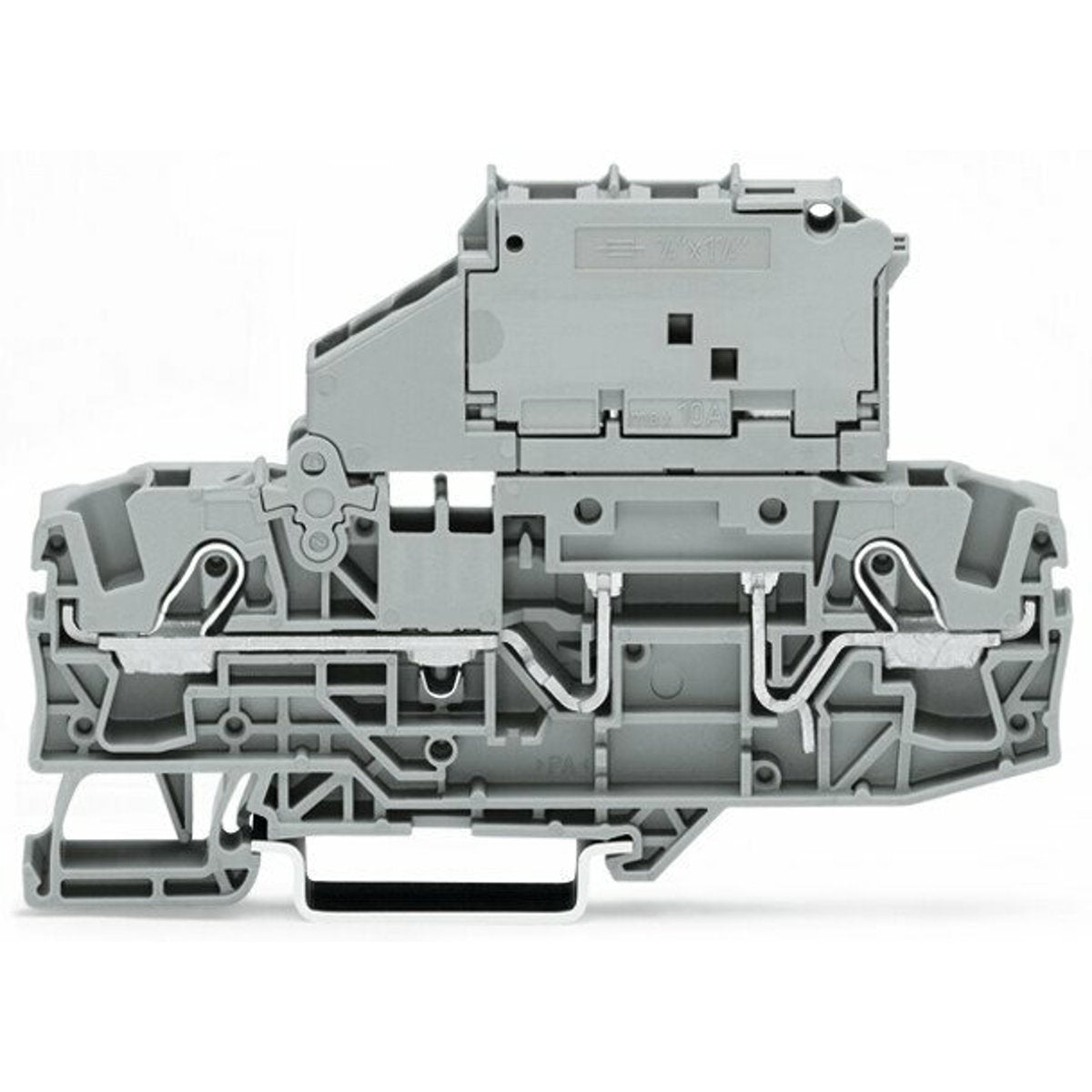

WAGO 2006-1631/1000-867 Feed-through Terminal Block with Fused Disconnect 120Vdc

Product Description

The WAGO 2006-1631/1000-867 is a feed-through terminal block designed for efficient electrical connections. It features a lever type for easy operation and is rated for 10 Amperes at 120 Volts DC. This terminal block accommodates two wires with a push-in connection type, making it versatile for different applications.

• Rated current of 10A.
• Designed for conductor sizes ranging from #20AWG to #8AWG.
• Compliant with RoHS standards.

Product Highlights

The WAGO feed-through terminal block is ideal for various electrical setups. It is compatible with din rail mounting and includes a blown-fuse LED indicator for easy monitoring.

Product Information

Standard Information

• Brand: WAGO
• Color: Gray

Technical Specifications

• Catalog Number: 2006-1631/1000-867
• Current Rating: 10 A
• Voltage Rating: 800 V
• Conductor Material: Copper
• Conductor Range: 8-20 AWG
• Connection Type: Push-in terminals (Cage-clamp)
• Dimensions: H96.3mm x W7.5mm x D59mm
• Weight: 24.85 grams
