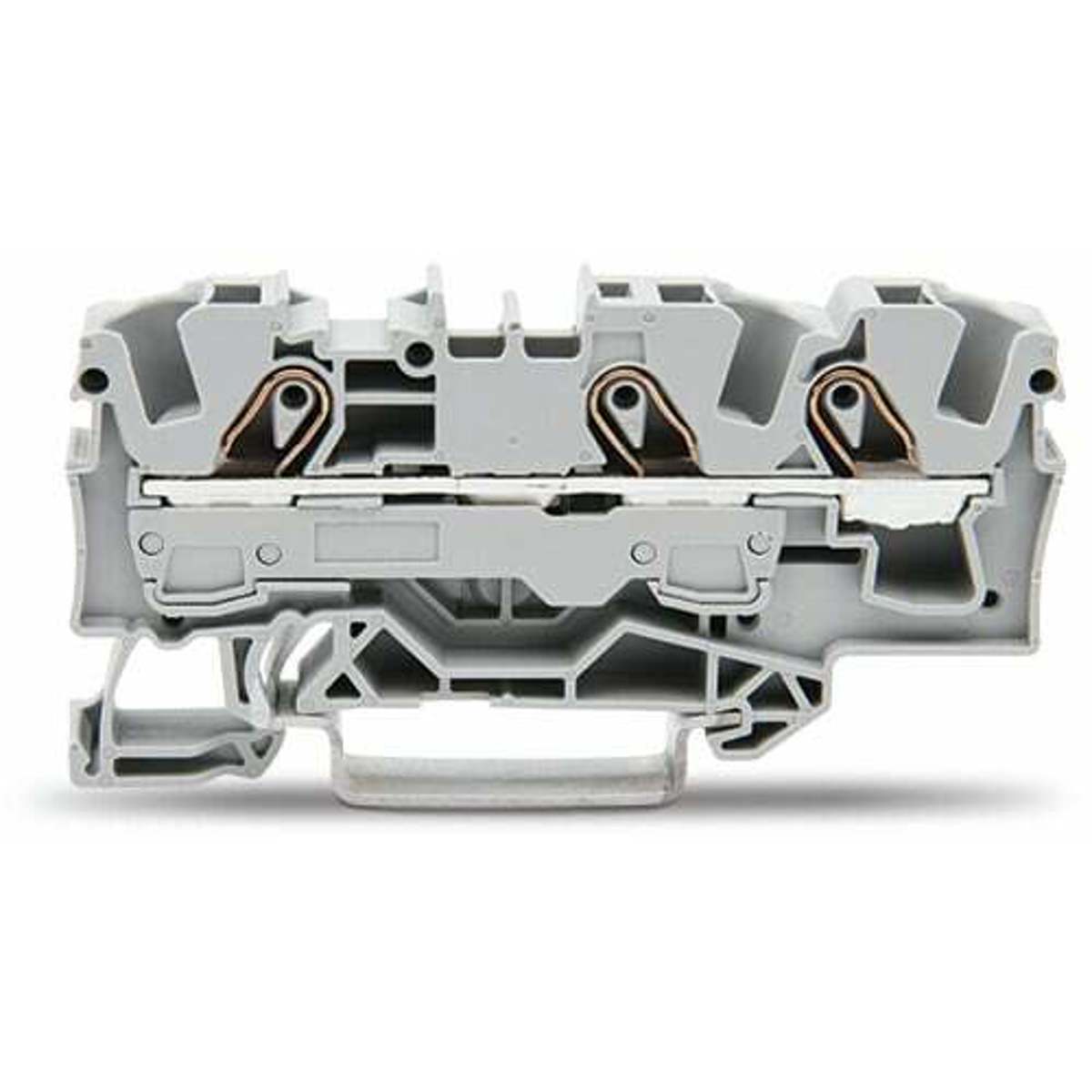

WAGO 2006-1301 Terminal Block 41A Gray for DIN Rail Mount

Product Description

The WAGO 2006-1301 Terminal Block is engineered for efficient wiring in control cabinets. This gray feed-through terminal block, part of the TOPJOB S series, is designed for use on DIN-35 rails and supports push-in CAGE CLAMP spring connections. Ideal for applications requiring Ex e II compliance, it accommodates wires from #20AWG to #8AWG.

• 41A current rating for high-performance needs.
• Suitable for 0.5mm² to 10mm² wire cross-sections.
• Push-in connection technology simplifies installation.

Product Highlights

Robust polyamide build ensures durability and reliability in demanding environments. Its compact design facilitates easy installation and maintenance, making it a preferred choice for electricians and technicians.

Product Information

Standard Information

• Catalog Number: 2006-1301
• Brand: WAGO

Technical Specifications

• Dimensions: H 2.886 inches x W 0.295 inches x D 1.296 inches
• Current Rating: 41 A
• Connection Type: Cage-clamp
• Color: Gray
• Conductor Range: 8-20 AWG
• Material: Polyamide (PA66)
• Mounting Type: DIN Rail
• RoHS Compliance: Yes
