Product Description

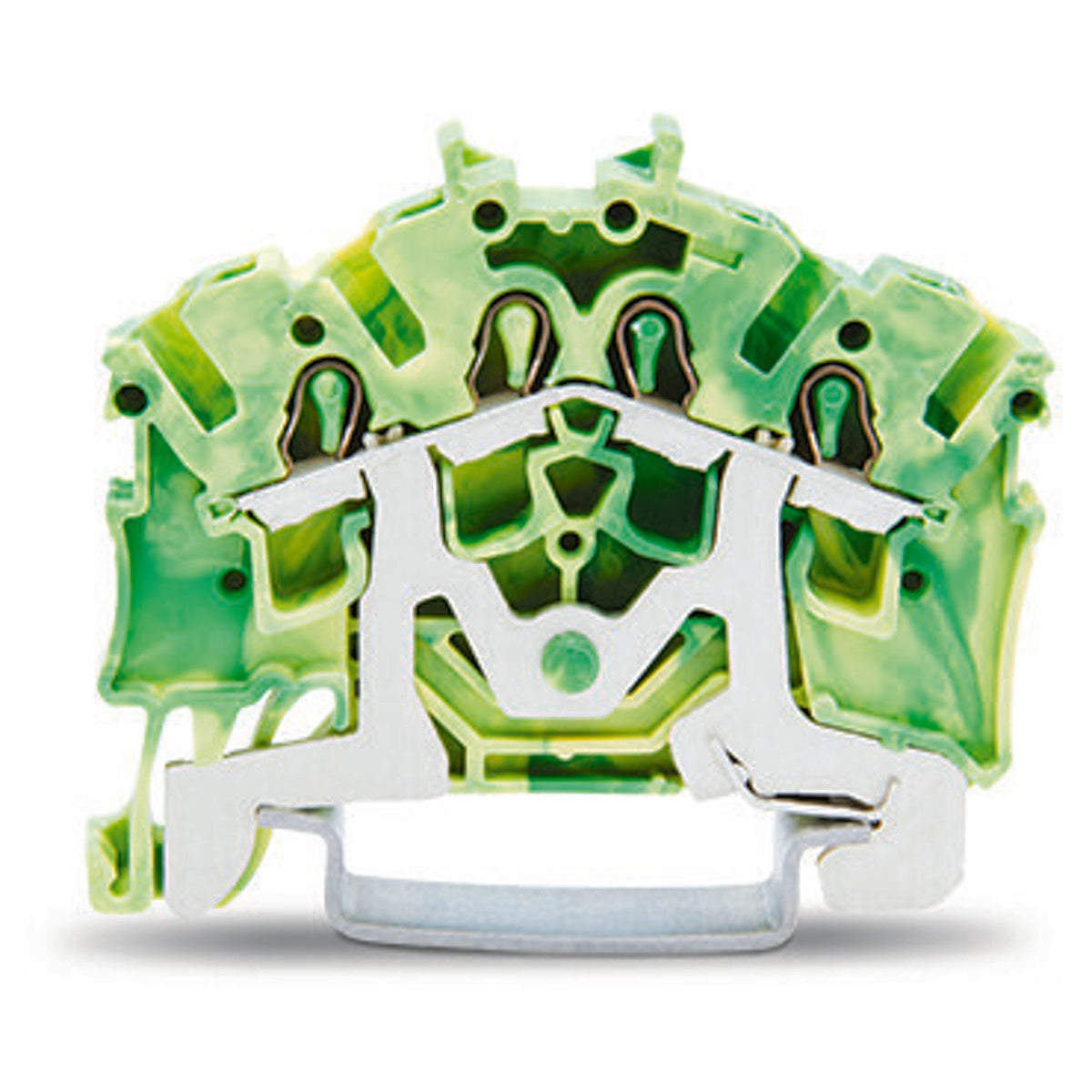

The WAGO 2002-6407 terminal block is engineered for secure and efficient grounding applications in hazardous environments, specifically Ex e II areas. This product features a convenient one-deck design with both side and center marking slots, facilitating easy wiring and inspection.
- Integrates a push-in CAGE CLAMP spring connection for reliable wire holding.
- Accommodates conductor sizes from #22AWG to #12AWG, with a nominal cross-section of 2.5mm2.
- Mountable on a standard DIN-35 rail, enhancing installation flexibility.
Product Highlights
Constructed with high-quality polyamide (PA66) and equipped with copper conductors, this terminal block ensures durability and superior conductivity. Its green-yellow color coding aids in easy identification of ground connections in complex circuits.
Product Information
Standard Information
-
Brand: WAGO
-
MPN: 2002-6407
-
Color: Green-Yellow
-
Mounting Type: Din Rail
Technical Specifications
-
Connection Type: Cage-clamp Terminals
-
Conductor Range: 12-22 AWG
-
Dimensions: Height 52.6mm x Width 5.2mm x Depth 38.9mm
-
Weight: 8.865 grams
-
Nominal Cross Section: 2.5 mm²
