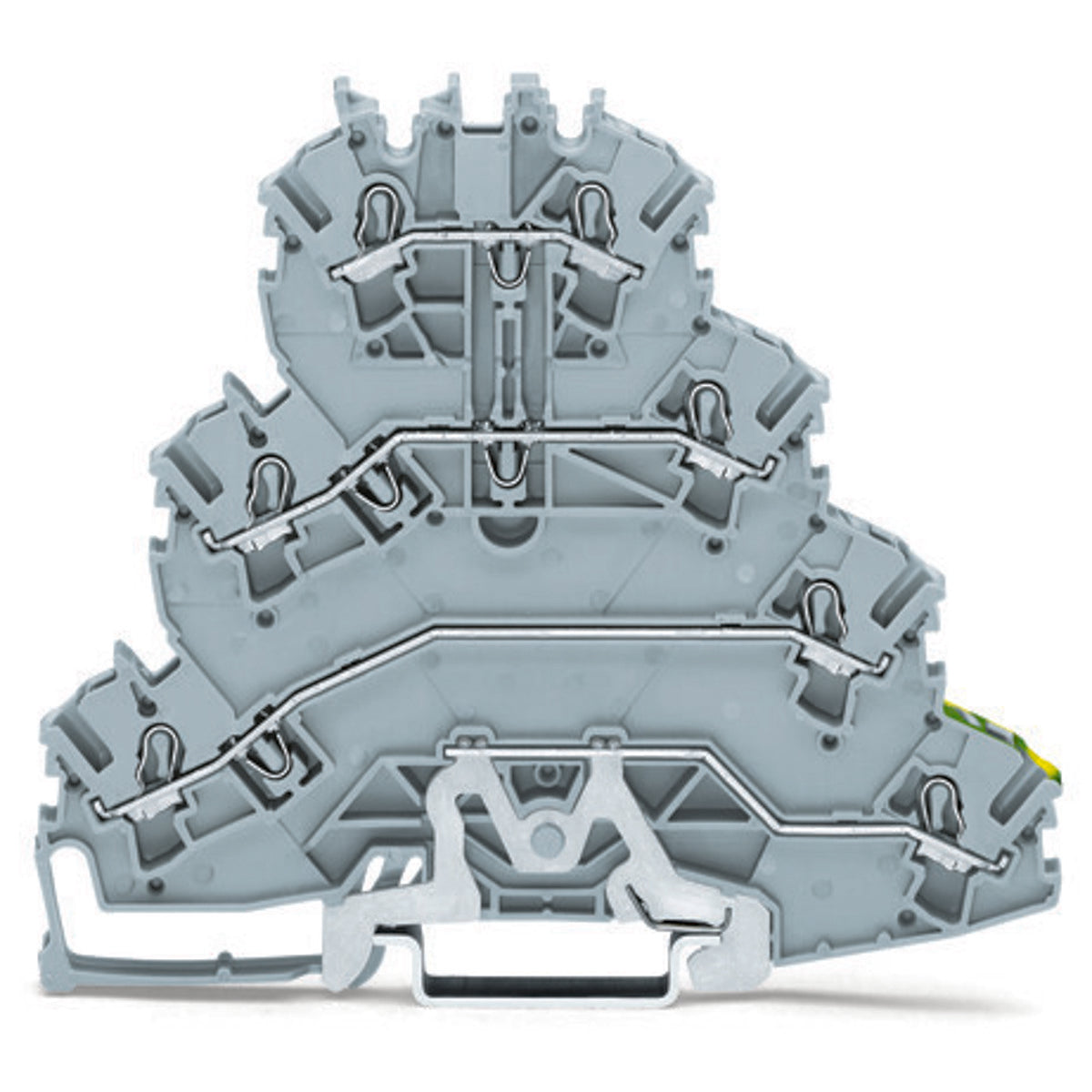

WAGO 2002-4157 Terminal Block 20A Gray 3 Feed-Through Poles

Product Description

The WAGO 2002-4157 terminal block is designed for efficient electrical motor wiring, featuring a four-level feed-through and grounding system. This model, part of the TOPJOB S series, is specially suitable for Ex e II applications and includes a marker carrier with 'L1-L2-L3-PE' indications.

• Gray terminal block with 3 feed-through and 3 protective-earth poles.
• Supports conductor sizes from 12 to 22 AWG.
• Designed for mounting on a standard DIN-35 rail.

Product Highlights

This terminal block ensures reliable and safe electrical connections in industrial environments, offering simple push-in CAGE CLAMP spring connections for quick installation and maintenance. The 2.5mm² nominal cross-section accommodates various wire sizes, making it a versatile choice for power distribution applications.

Product Information

Standard Information

• UPC: No UPC available
• Color: Gray

Technical Specifications

• Material: Polyamide (PA66)
• Current Rating: 20A
• Conductor Range: 12-22 AWG
• Voltage Rating: 800V
• Connection Type: Cage-clamp terminals
• Mounting Type: Din Rail
• Dimensions: Height 103.5mm, Width 5.2mm, Depth 96.8mm
• Weight: 25.965 grams
