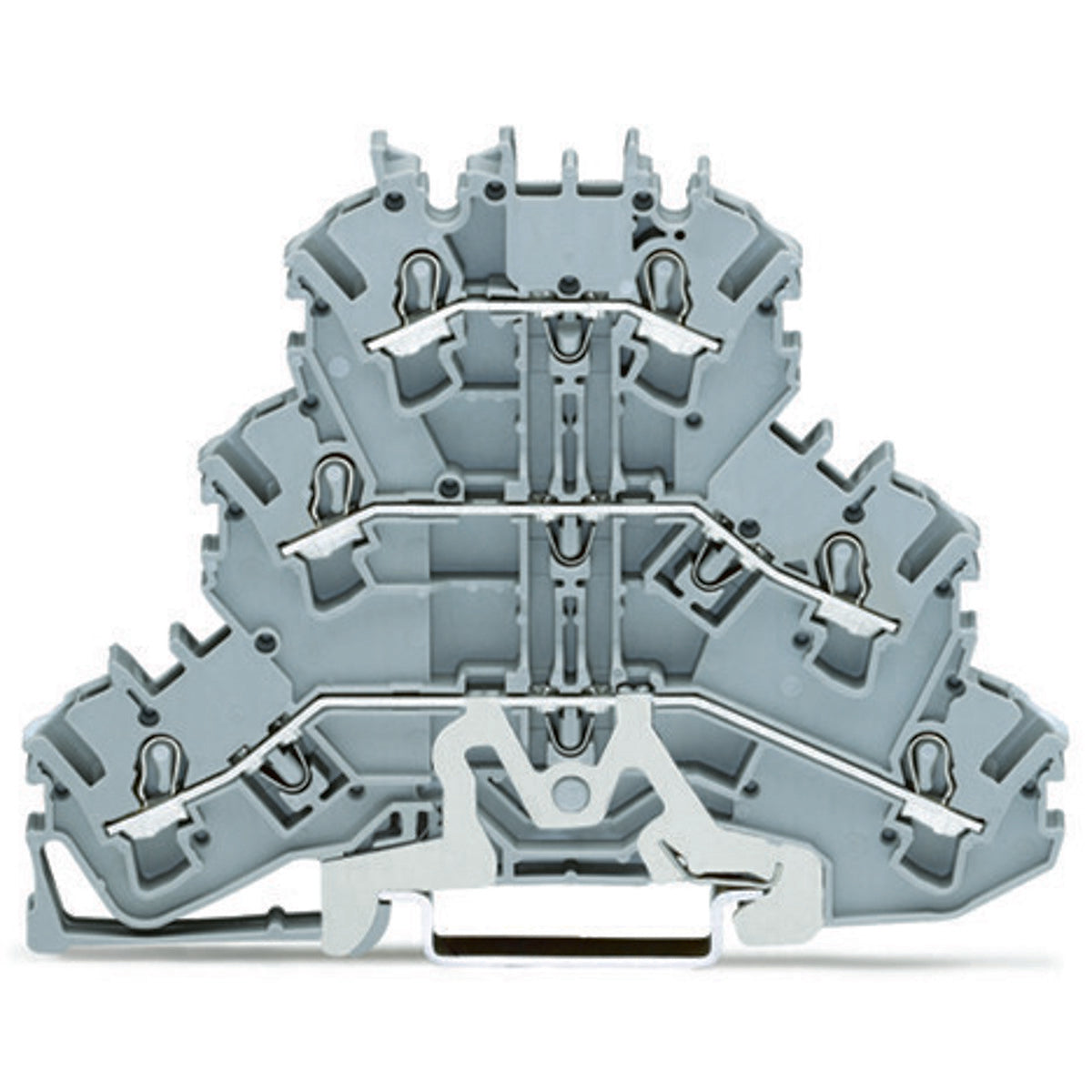

WAGO 2002-3228 Feed-through Terminal Block + Shield 3-Deck Gray 2.5mm2

Product Description

Introducing the WAGO 2002-3228 Feed-through Terminal Block, an essential component for efficient power distribution and protection. This triple-deck feed-through and shield through terminal block is designed for a firm and secure wire connection, supporting a broad range of wire sizes from 22AWG to 12AWG.

• Integrated with Push-in CAGE CLAMP spring connections for rapid and reliable wiring.
• Features three levels for organized wire management and clear labeling to enhance safety and ease of maintenance.
• Compact design with dimensions of 93.3mm height, 5.2mm width, and 69.5mm depth, allows easy installation on DIN-35 rail mountings.

Product Highlights

The WAGO 2002-3228 Terminal Block is rated for currents up to 24A and handles voltages up to 500 volts, demonstrating its capability in various industrial applications.

Specifications

• Catalog Number: 2002-3228
• Brand: WAGO
• Country of Origin: Germany
• Color: Gray
• Material: Polyamide (PA66)
• Mounting: Din Rail
• Connection Type: Terminals (Cage-clamp)
• Current Rating: 24 A
• Rated Voltage: 500 volts
• Conductor Range: 22-12 AWG
• Nominal Cross Section: 2.5 mm²
