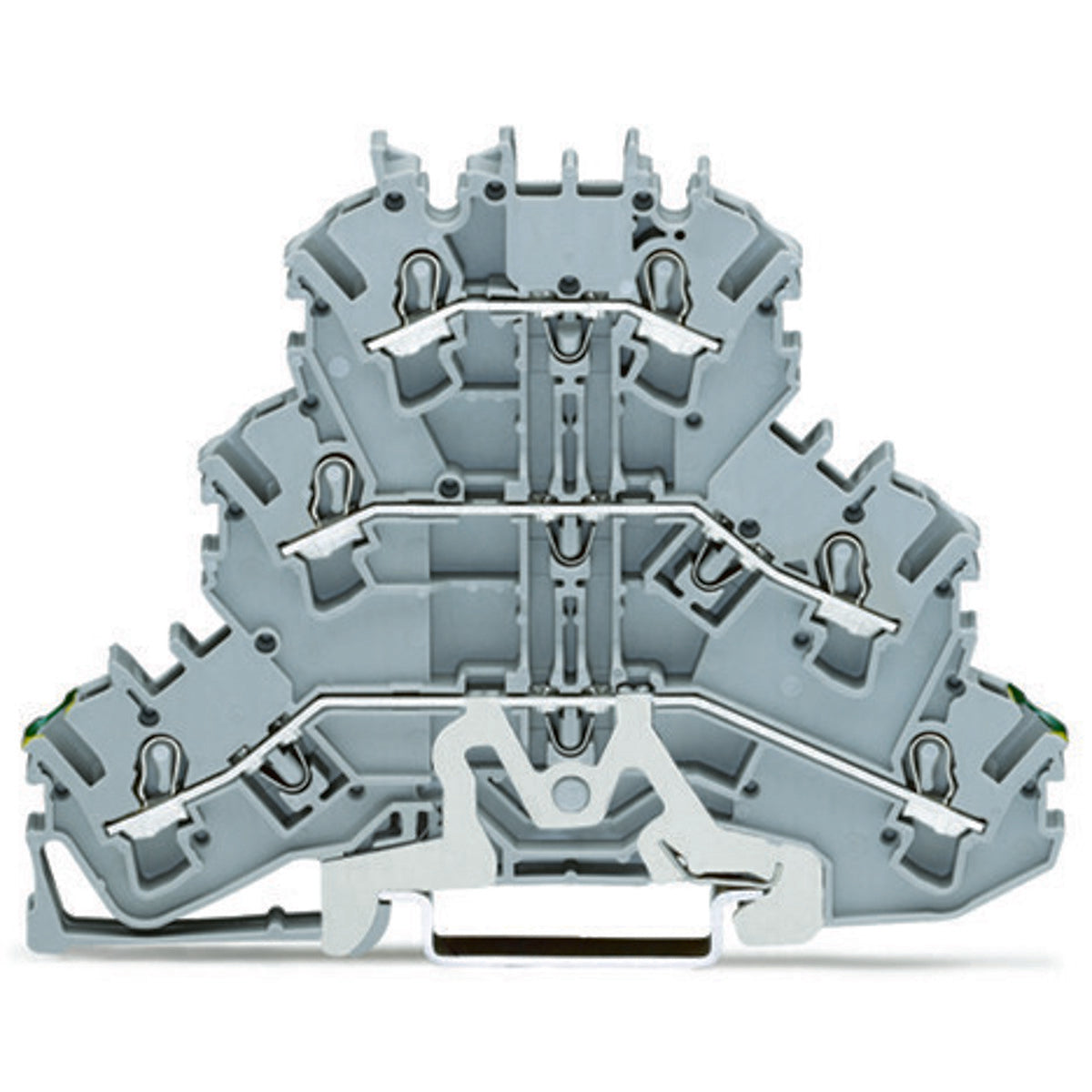

WAGO 2002-3227 Terminal Block 2 Feed-Through Poles + Protective-Earth Triple Deck

Product Description

The WAGO 2002-3227 Terminal Block ensures reliable electrical connections in a compact, triple-deck design, perfect for Ex e II applications. Manufactured in Germany, this product utilizes innovative push-in CAGE CLAMP spring connections for quick and secure wire installation.

• Supports wires from #22AWG to #12AWG with 2.5mm² nominal cross-section.
• Rated for 500 volts and a current of 24A, ideal for demanding setups.
• Mountable on DIN-35 rail for easy integration into your electrical distribution assemblies.

Product Highlights

This terminal block features a gray polyamide build, offering excellent durability and resistance to environmental factors. Its triple-deck layout maximizes connection possibilities in confined spaces, accommodating up to six wires.

Product Information

Standard Information

• Dimensions: Height: 93.3 mm, Width: 5.2 mm, Depth: 69.5 mm
• Weight: 19.673 grams

Technical Specifications

• Connection Type: Push-in Cage-Clamp
• Conductor Material: Copper
• Mounting Type: DIN Rail
• Color: Gray
• Material: Polyamide (PA66)
• Conductor Range: 12-22 AWG
• Country of Origin: Germany
