Product Description

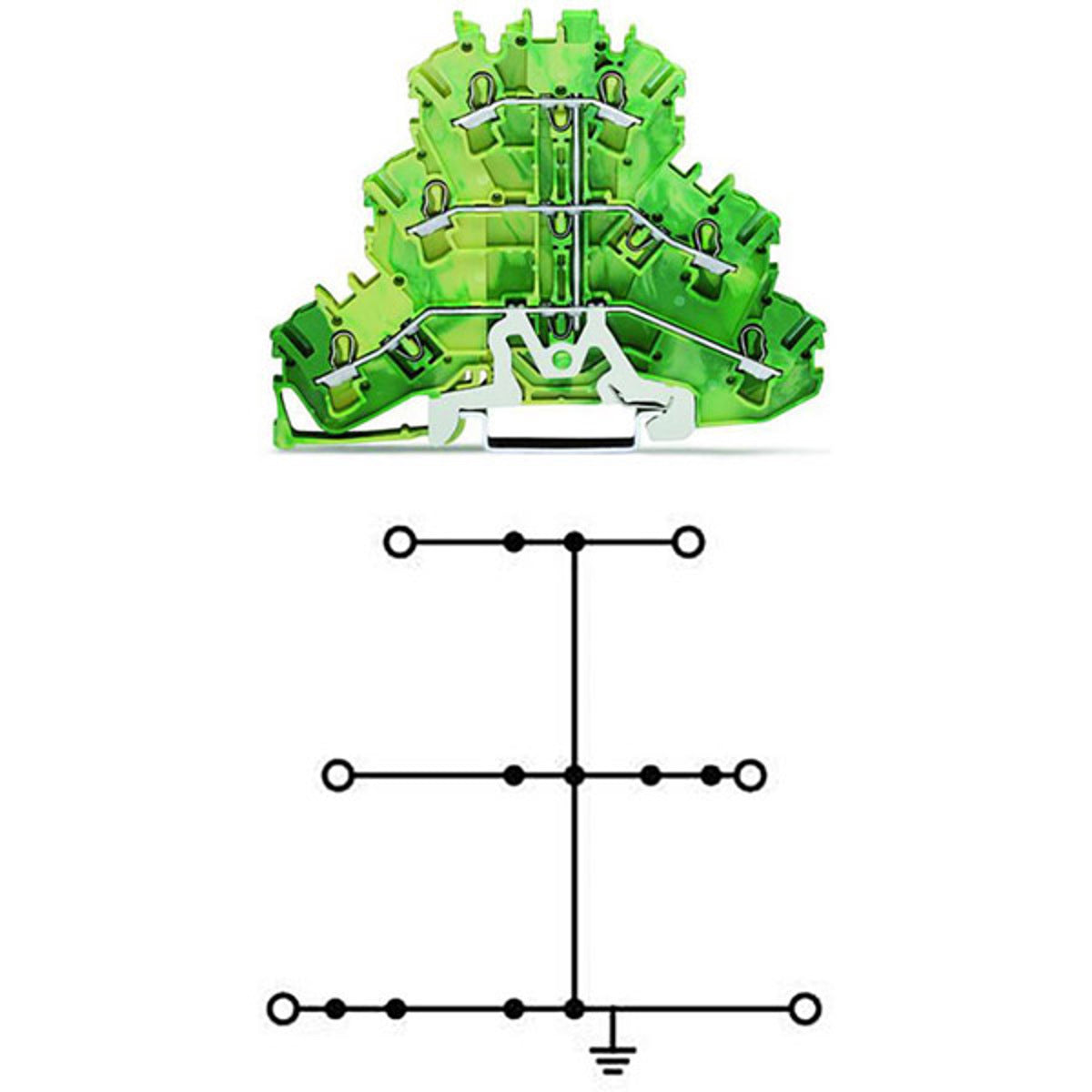

Designed for sophisticated and safe wiring, the WAGO 2002-3207 Terminal Block is ideal for establishing secure electrical ground connections in hazardous environments. This triple-deck, green-yellow terminal block is engineered for Ex e II applications and features an internal commoning system.
- Supports a conductor range of 12-22 AWG, making it versatile for various wire sizes.
- Equipped with Push-in CAGE CLAMP spring connections for a hassle-free, reliable installation.
- Constructed from high-quality polyamide for durability and resistance to environmental factors.
Product Highlights
Optimized for use on DIN-35 rails, the compact design ensures a minimal footprint while providing maximum efficiency and ease of use.
Technical Specifications
-
Color: Green-Yellow
-
Material: Polyamide (PA66)
-
Connection Type: Cage-clamp terminals
-
Mounting Type: Din Rail
-
Dimensions: Height: 93.3 mm, Width: 5.2 mm, Depth: 69.5 mm
-
Weight: 20.5 grams
-
Country of Origin: Germany
-
RoHS Compliant: Yes
