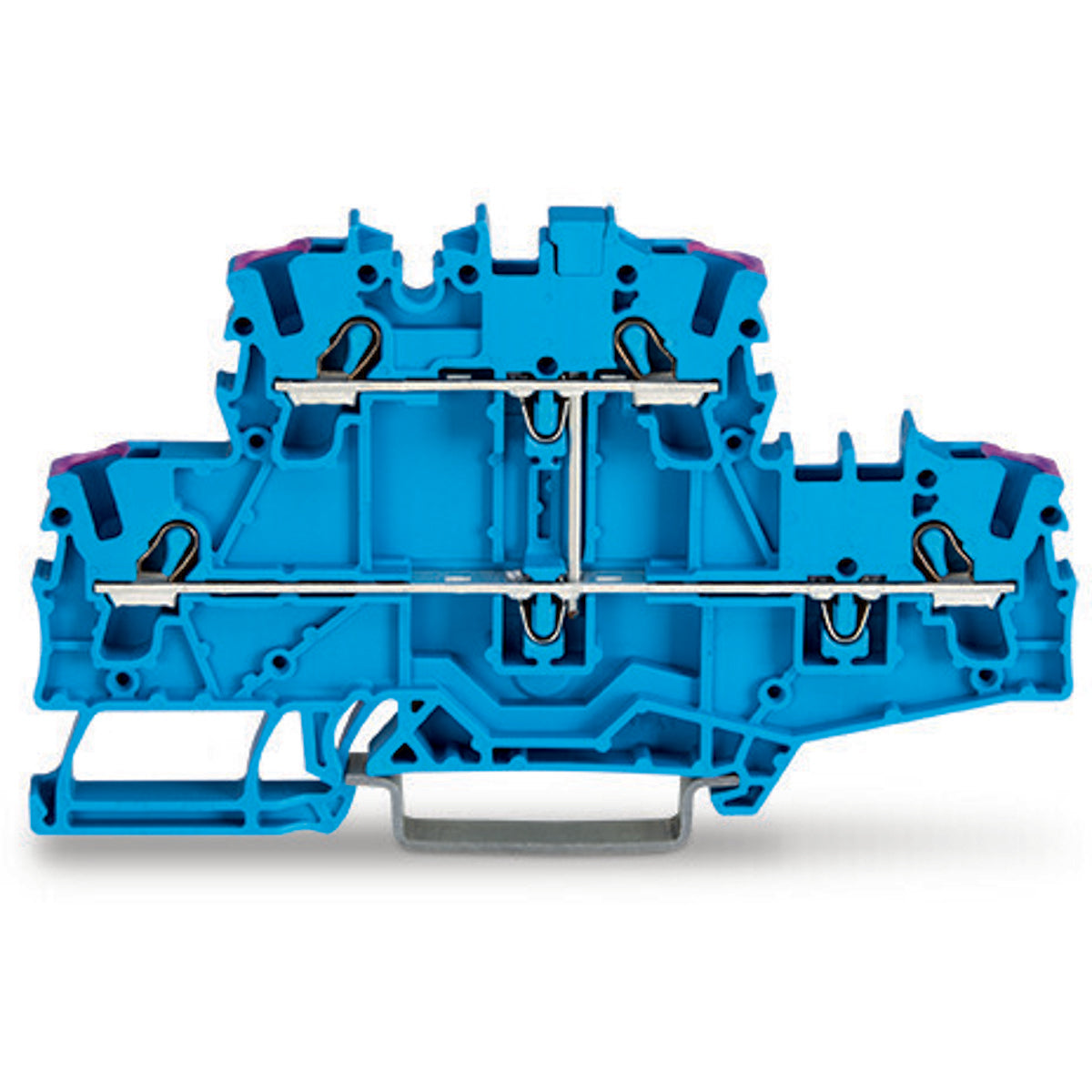

WAGO 2002-2709 Neutral-through Terminal Block with 2-decks/levels (double-deck) - Suitable for Ex e II / Ex I applications

Product Description

The WAGO 2002-2709 is a neutral-through terminal block designed with two decks and internal commoning suitable for Ex e II and Ex I applications. This component can handle a nominal cross-section of two point five square millimeters and is compatible with wire ranges from zero point twenty-five square millimeters to four square millimeters or from twenty-two AWG to twelve AWG. The terminal block supports a rated current of twenty-four amps with a voltage rating of eight hundred volts.

• Rated for use in diverse environmental conditions
• Push-in CAGE CLAMP spring connections for secure wiring
• Mounts easily on DIN-35 rail systems

Product Highlights

This terminal block provides reliable and effective connections in electrical systems. The robust construction and material components ensure durability and compliance with safety standards.

Product Information

Standard Information

• Catalog Number: 2002-2709
• Manufacturer: WAGO

Technical Specifications

• Current Rating: 24 A
• Voltage Rating: 800 V
• Dimensions: H92.5mm x W5.2mm x D51.7mm
• Material: Polyamide (PA66)
• Conductor Material: Copper
• Conductor Range: 12-22 AWG
• Mounting: DIN Rail
• RoHS Indicator: Yes
