WAGO 2002-2708 Feed-through Thru Terminal Block With 2 Decks Levels Double Deck Internal Commoning Suitable For Ex E II Applications With L Marking

Product Description

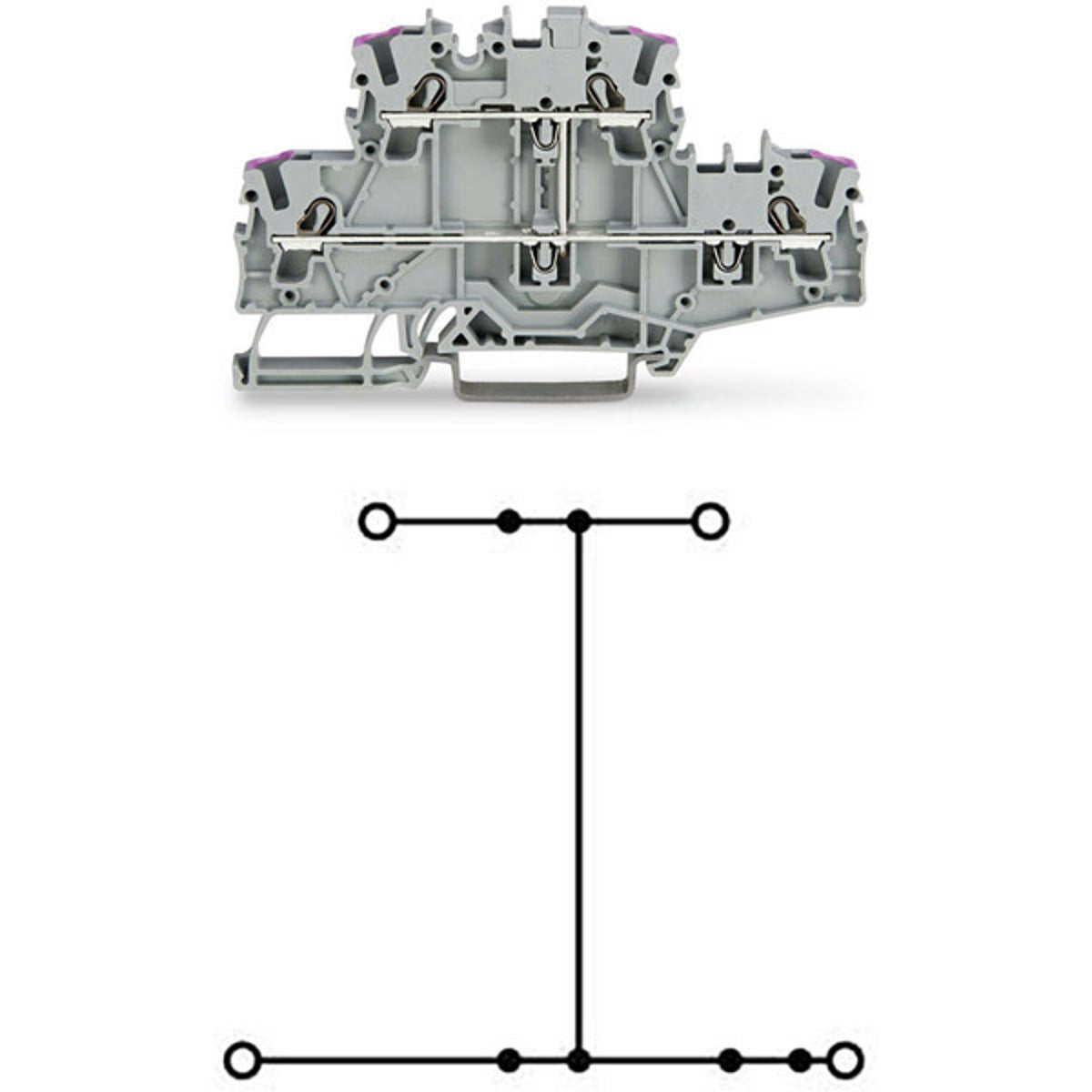

The WAGO 2002-2708 is a feed-through terminal block designed for secure electrical connections. This unit has two decks which enable internal commoning. It is suitable for Ex e II applications and is marked with the L marking. The terminal block accommodates two wires and features two push-in connections for easy setup. It can handle conductor ranges from zero point two five millimeters squared to four millimeters squared, or from #22 AWG to #12 AWG.

• Rated current of twenty-four amperes at twenty-eight amperes.
• Push-in CAGE CLAMP connections for reliable wire retention.
• Compatible with DIN-35 rail mounting.

Product Highlights

This terminal block is ideal for panel builders and electricians needing reliable connections in tight spaces.

Product Information

Standard Information

• Catalog Number: 2002-2708
• Manufacturer: WAGO

Technical Specifications

• Current Rating: 24 A
• Voltage Rating: 800 V
• Nominal Cross Section: 2.5 mm²
• Conductor Range: 12-22 AWG
• Conductor Material: Copper
• Mounting: DIN Rail
• Material: Polyamide (PA66)
• Dimensions: Height ninety-two point five millimeters, Width five point two millimeters, Depth fifty-one point seven millimeters
