Product Description

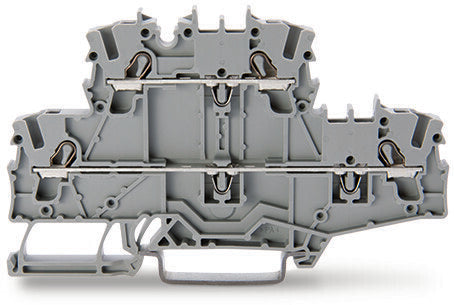

The WAGO 2002-2701 Feed-Through Terminal Block is crafted for seamless and reliable electrical connectivity. Rising as a premier choice in the electrical distribution field, this double-deck terminal block is designed to accommodate Ex e II applications. Its gray color ensures a professional look while maintaining functionality with an intuitive push-in cage clamp connection system. Suitable for mounting on DIN-35 rails, it streamlines the installation process, making it a go-to solution for both industrial and commercial settings.
- Feature-Packed Design with marked 'L/L' for quick identification.
- Integrated with two feed-through poles allowing for efficient wire management.
- Constructed from high-quality polyamide (PA66) and copper for long-lasting use and reliability.
Product Highlights
This terminal block supports a wide conductor range (12-22 AWG), making it versatile for various wire sizes. Its compact size of 5.2mm wide ensures space efficiency on rails. Rated for up to 800 volts and a 24A current, this component assures safety and a high degree of performance.
Technical Specifications
-
Catalog Number: 2002-2701
-
Connection Type: Terminals (Cage-clamp)
-
Current Rating: 24 A
-
Material: Polyamide (PA66), Copper
-
Mounting Type: DIN-35 Rail Mounting
-
Color: Gray
-
Dimensions: Height 92.5 mm / Width 5.2 mm / Depth 51.7 mm
-
RoHS Compliant: Yes
