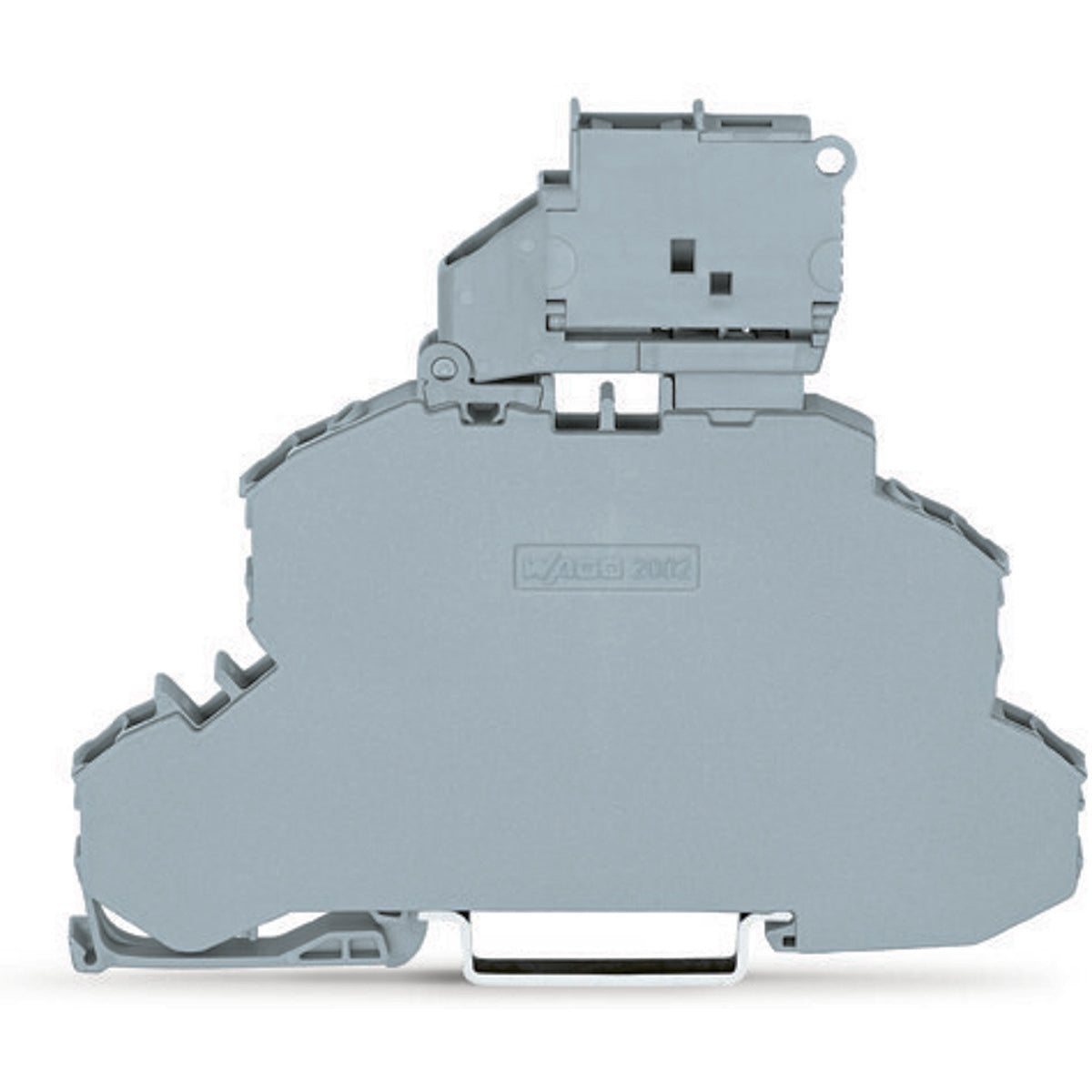

WAGO 2002-2611 Feed-through Terminal Block Lever Type Fused Disconnect Double Deck Topjob S Series

Product Description

The WAGO 2002-2611 terminal block is designed for reliable electrical connections in industrial settings. This double-deck feed-through terminal block features a fused disconnect with a lever actuator, suitable for Ex e II applications. It offers a compact solution with a gray color finish and supports a nominal cross-section of 2.5mm2.

• Designed for use with 12-22 AWG conductor range.
• Equipped with Push-in CAGE CLAMP for strong, stable wire connections.
• Designed for mounting on a DIN-35 rail, ensuring easy installation and secure placement.

Product Highlights

This terminal block is constructed from high-quality polyamide (PA66) and copper conductors, ensuring durability and efficient conductivity. It features a dual push-in connection system that simplifies the process of wire insertion and removal.

Product Information

Standard Information

• Brand: WAGO
• Color: gray

Technical Specifications

• Connection Type: Terminals (Cage-clamp)
• Current Rating: 6.3 A
• Fuse Type: Cylindrical fuse; 5 x 20 mm
• Material: Polyamide (PA66)
• Mounting Type: Din Rail
• Dimensions: Height 93 mm, Width 0.244 inches, Depth 76.4 mm
