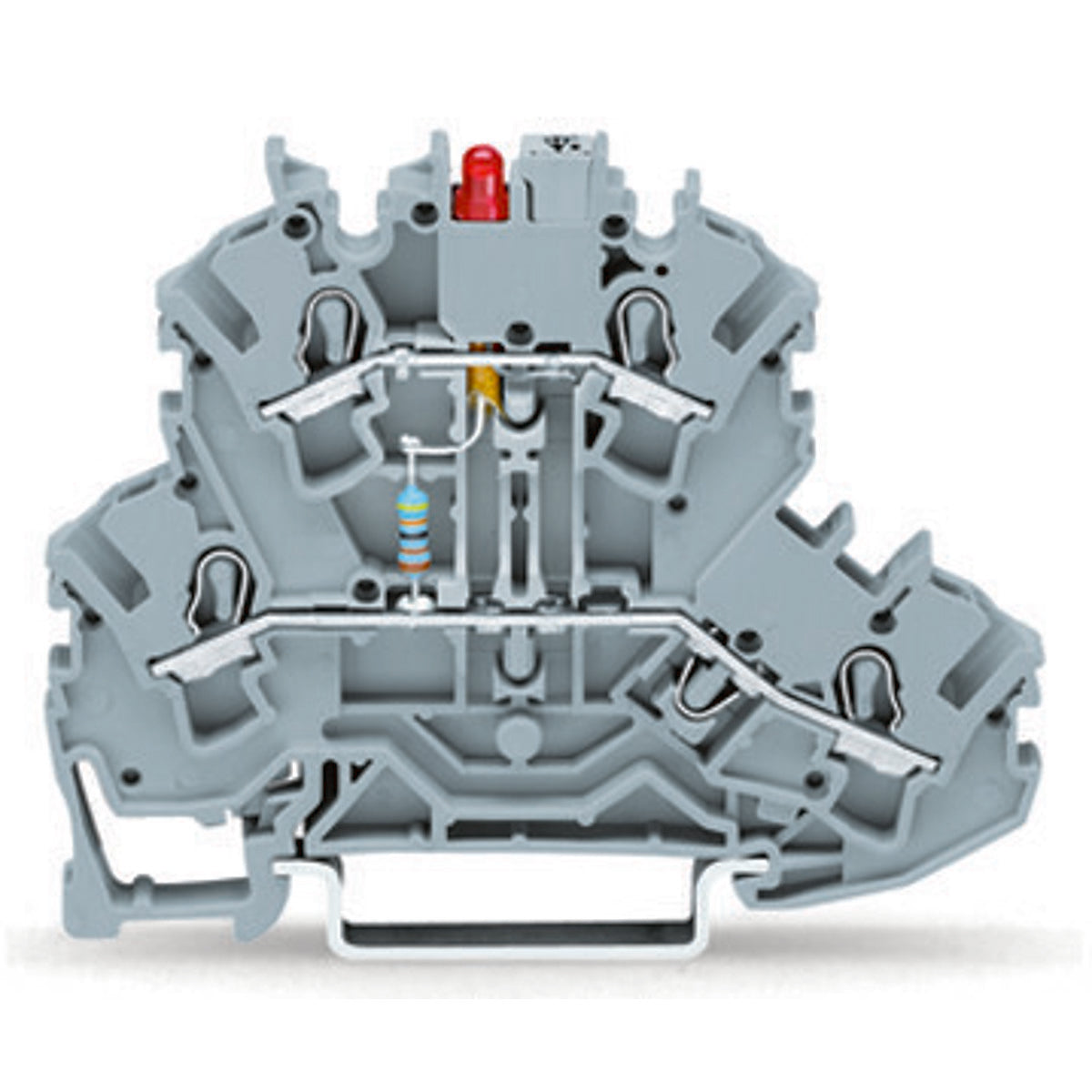

WAGO 2002-2221/1000-413 Terminal Block 2 Decks/Levels with Red LED 24Vdc Gray Replacement 2002-2221/1000-413

Product Description

The WAGO 2002-2221/1000-413 terminal block features a double-deck design with two feed-through poles and is equipped with a 24Vdc red LED indicator for visual feedback. This reliable component is designed for straightforward mounting on a DIN-35 rail, making it a favored choice for electrical distribution within industrial settings.

• Enhanced visual operation control through integrated 24Vdc red LED indicator.
• User-friendly installation with push-in CAGE CLAMP spring connections.
• Compact design with a width of 0.205 inches, suitable for dense panel layouts.

Product Highlights

Optimized for use with a wide range of wire sizes from #22AWG to #12AWG, the WAGO 2002 series terminal block ensures a secure connection with minimal effort. The polyamide construction offers superior durability and resistance to environmental factors.

Product Information

Standard Information

• GTIN: 4045454373818
• Manufacturer: WAGO
• Country of Origin: Germany

Technical Specifications

• Color: Gray
• Material: Polyamide (PA66)
• Mounting Type: Din Rail
• Connection Method: Terminals (Cage-clamp)
• Nominal Cross Section: 2.5 mminchu00b2
• Current Rating: 0.025 A
• Dimensions: H69.7mm x W5.2mm x D51.7mm
