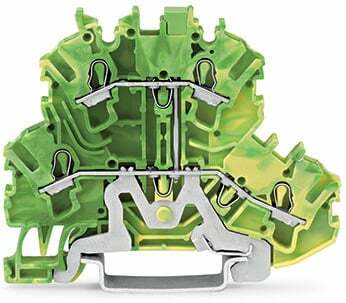

WAGO 2002-2207 Ground/Earthing Terminal Block Double-Deck Internal Commoning for Ex e II Applications

Product Description

The WAGO 2002-2207 terminal block is designed to connect and ground wires efficiently in environments requiring Ex e II safety standards. This green-yellow terminal block is part of the TOPJOB S series, renowned for its reliability and ease of use.

• Double-deck design for compact wire connections.
• Push-in CAGE CLAMP spring connections for quick wire installation.
• DIN-35 rail mounting ensures solid and secure attachment.

Product Highlights

With an internal commoning function and PE marking, the WAGO 2002-2207 is an exceptional choice for grounding tasks in industrial settings. It supports wire sizes from 22 to 12 AWG and has a nominal cross-section of 2.5mm2.

Product Information

Standard Information

• Catalog Number: 2002-2207
• Brand: WAGO

Technical Specifications

• Material: Polyamide (PA66)
• Connection Type: Terminals (Cage-clamp)
• Mounting Type: Din Rail
• Dimensions: H2.744 inches x W0.205 inches x D2.037 inches
• Color: green-yellow
• Conductor Range: 12-22 AWG
• Country of Origin: Germany
• RoHS Indicator: Yes
