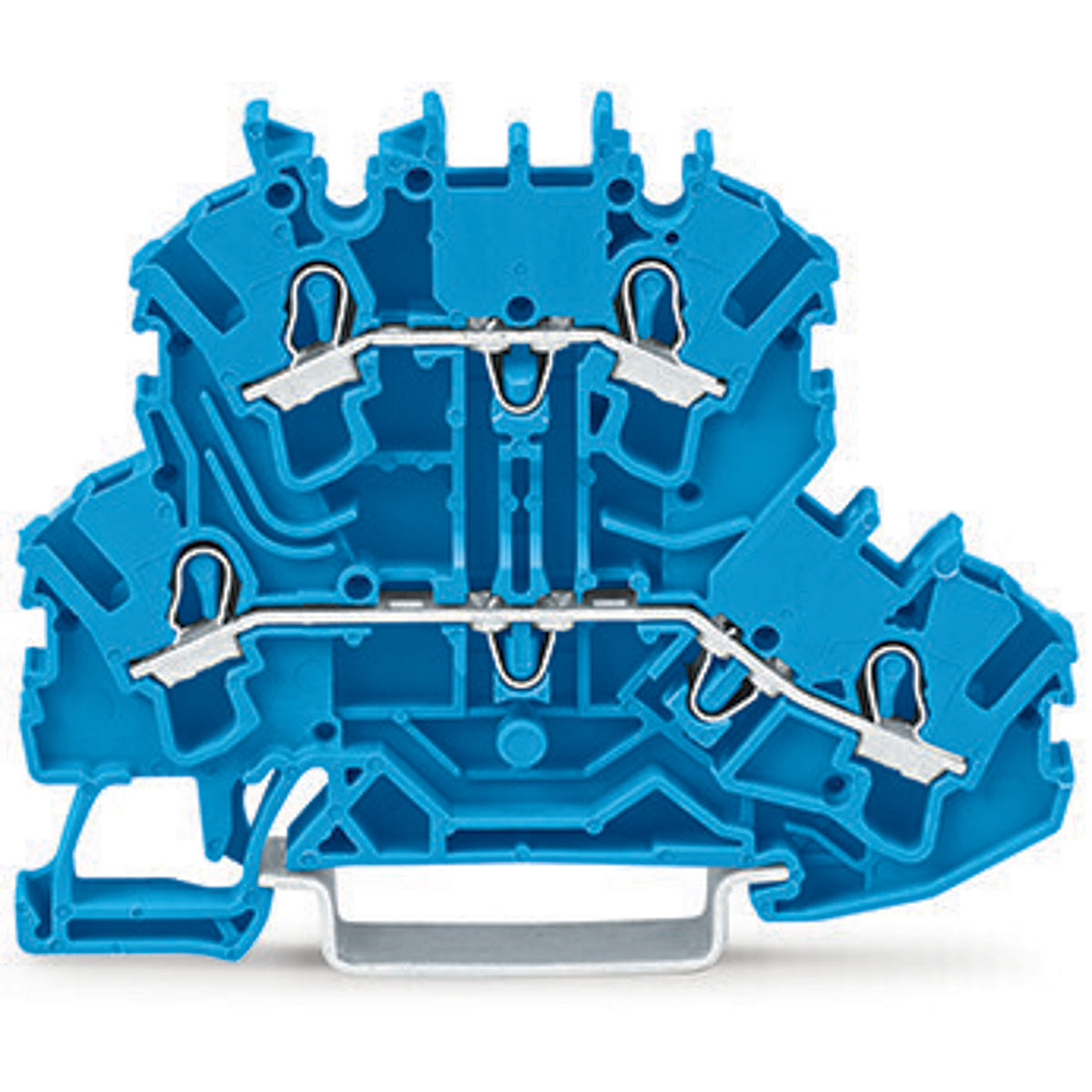

WAGO 2002-2204 Neutral-through Terminal Block with 2-decks/levels Double-deck Suitable for Ex e II / Ex I Applications

Product Description

The WAGO 2002-2204 is a neutral-through terminal block designed with two decks, catering to Ex e II and Ex I applications. This terminal block features two neutral-through poles and is equipped for two wires with push-in connections.

• Rated current capacity between 24A and 28A.
• Compatible with conductors ranging from #22AWG to #12AWG.
• Mounting is through standard DIN rail.

Product Highlights

This terminal block is suited for professionals in power distribution and protection applications. It offers reliable connections with a spring-loaded cage clamp design, ensuring secure wire engagement.

Product Information

Standard Information

• Catalog Number: 2002-2204
• Manufacturer: WAGO

Technical Specifications

• Brand: WAGO
• Color: Blue
• Current Rating: 24A
• Voltage Rating: 500V
• Conductor Range: 12-22 AWG
• Material: Polyamide (PA66)
• Mounting: DIN Rail
• Dimensions: H69.7mm x W5.2mm x D51.7mm
