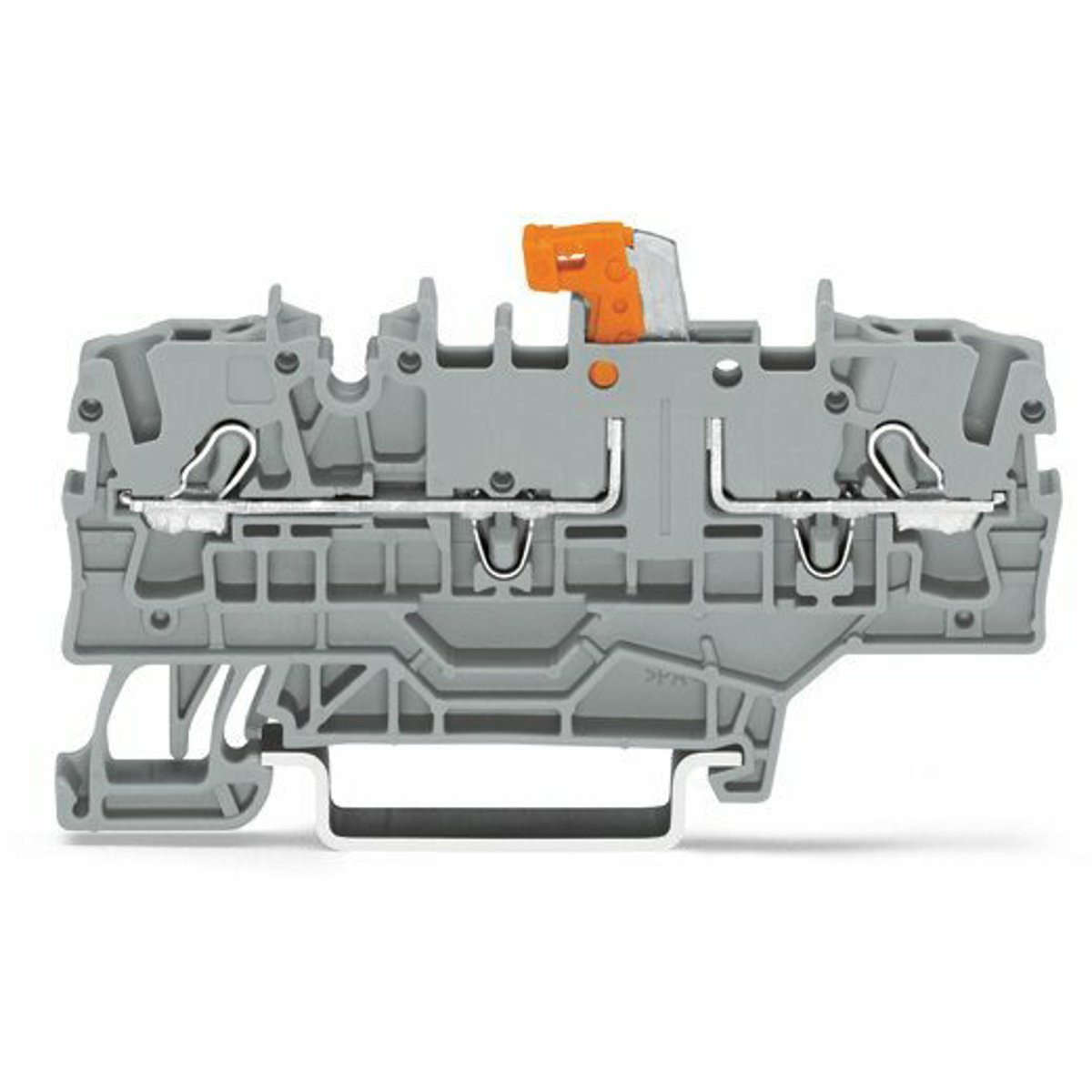

WAGO 2002-1971 Feed-through/thru disconnect/test terminal block with 1-deck/level + additional jumper position - Suitable for Ex e II applications

Product Description

The WAGO 2002-1971 is a feed-through disconnect and test terminal block designed for specific applications. This block accommodates one disconnect feed-through pole with two wires and integrates push-in cage clamp connections for secure wiring. It is suitable for Ex e II applications and is mounted on a DIN rail for straightforward installation.

• Rated current of sixteen amperes
• Nominal cross-section of two point five square millimeters
• Compatible with conductor sizes from zero point twenty-five square millimeters to four square millimeters (twenty-two AWG to twelve AWG)

Product Highlights

This terminal block features a durable polyamide construction and operates within a voltage rating of four hundred volts. The gray color indicates its design suited for various applications.

Product Information

Standard Information

• Catalog Number: 2002-1971
• Manufacturer: WAGO

Technical Specifications

• Current Rating: 16 A
• Voltage Rating: 400 V
• Conductor Material: Copper
• Conductor Range: 12-22 AWG
• Dimensions: H72.9mm x W5.2mm x D32.9mm
• Weight: 8.297 grams
• RoHS Indicator: Yes
• Mounting: DIN Rail
