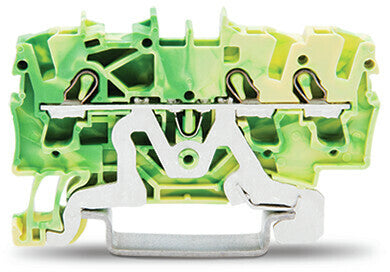

WAGO 2002-1307 3-Conductor Ground Terminal Block 2.5 mm2

Product Description

The WAGO 2002-1307 is a 3-conductor ground terminal block designed for use in Ex e II applications. This terminal block features a side and center marking for easy identification during installation. It is compatible with DIN rail sizes 35 x 15 millimeters and 35 x 7.5 millimeters. The push-in CAGE CLAMP design ensures a secure connection for conductors.

• Suitable for conductors from 12 to 22 AWG.
• Made from polyamide for enhanced durability.
• IP20 rated for optimal protection in indoor environments.

Product Highlights

This product is ideal for industrial communication and control applications. It provides reliable grounding for electrical systems, ensuring safety and stability.

Product Information

Standard Information

• Brand: WAGO
• Manufacturer Part Number: 2002-1307

Technical Specifications

• Rated Current: 32 Amperes
• Nominal Cross Section: 2.5 mm²
• Conductor Range: 12-22 AWG
• Material: Polyamide (PA66)
• Dimensions: H59.2 mm x W5.2 mm x D32.9 mm
• Weight: 9.13 grams
• RoHS Compliant: Yes
• Country of Origin: Germany
