Product Description

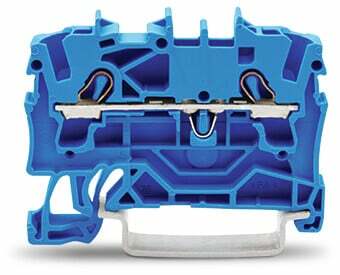

The WAGO 2002-1204 Terminal Block is a high-quality terminal designed for secure wire connection. This model, belonging to the TOPJOB S series, is suitable for explosive atmospheres (Ex e II/Ex I applications) and makes wiring installations simpler and more reliable.
- Push-in CAGE CLAMP technology for quick and tool-free wiring.
- Blue color coding for neutral connections, supporting 12-22 AWG conductor range.
- Integrated side and center marking slots for clear identification and organization.
Product Highlights
Rated for currents up to 24A with a voltage rating of 800 volts, it ensures a secure electrical connection. Its compact design, just 5.2mm wide, allows for efficient use of space on DIN-35 rails.
Product Information
Standard Information
-
Brand: WAGO
-
MPN: 2002-1204
-
Color: Blue
-
Material: Polyamide (PA66)
Technical Specifications
-
Connection Type: Push-in CAGE CLAMP
-
Current Rating: 24A
-
Voltage Rating: 800V
-
Wire Size: 12-22 AWG
-
Mounting Type: DIN-35 rail
-
Dimensions: H48.5mm x W5.2mm x D32.9mm
-
Rohs Compliant: Yes
-
Country of Origin: Germany
