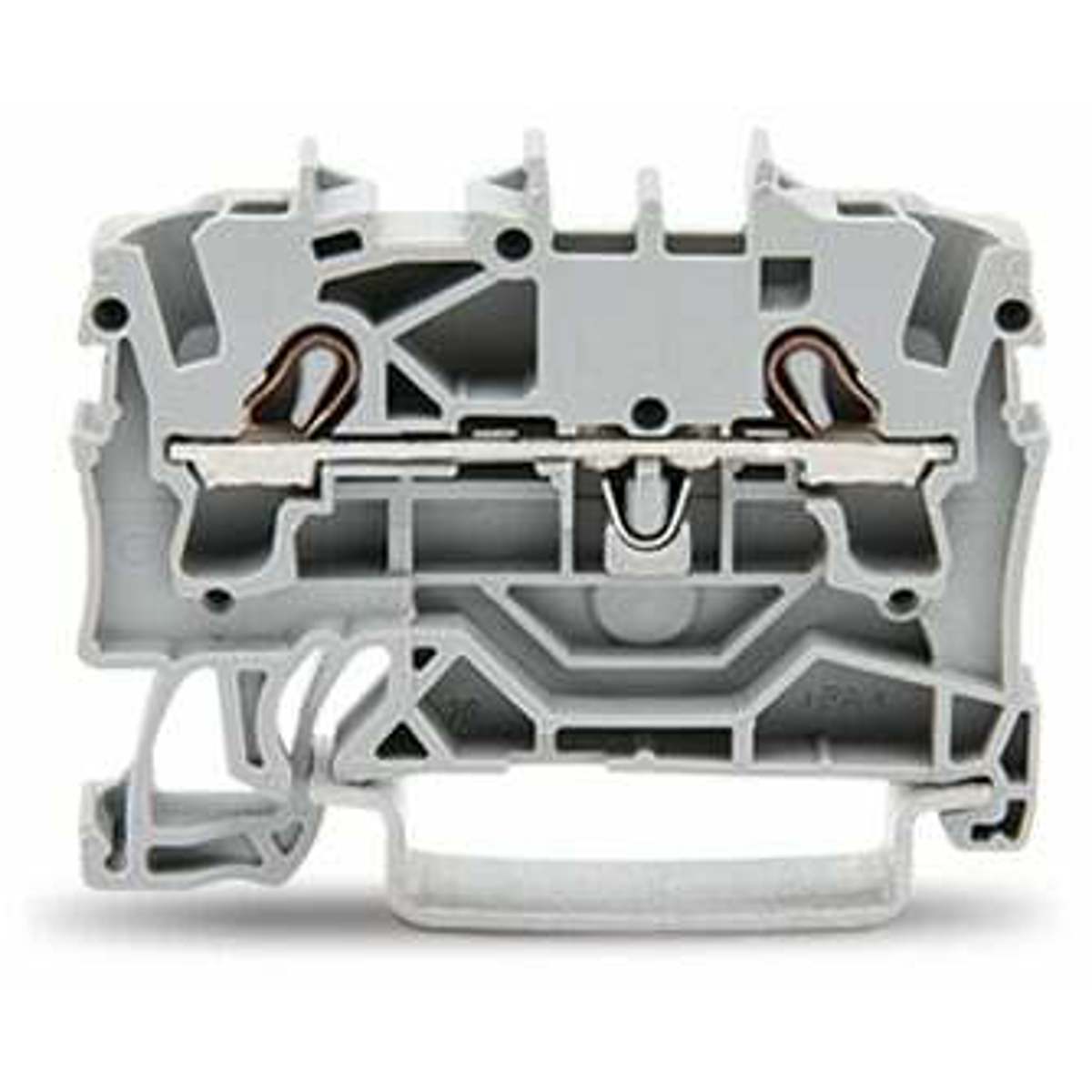

WAGO 2002-1201 Feed-Through Terminal Block 24A Gray Single Pack 2002-1201

Product Description

Introducing the WAGO 2002-1201 terminal block, designed for efficient power distribution and protection in a compact form. This feed-through terminal block is equipped with push-in CAGE CLAMP spring connections, facilitating quick and secure wire installation without the need for tools.

• Suitable for Ex e II applications, ensuring compliance in hazardous environments.
• Supports wire sizes from #22AWG to #12AWG, accommodating a wide range of wiring needs.
• Designed for mounting on DIN-35 rails, making it versatile for various industrial settings.

Product Highlights

Engineered in Germany, this terminal block is built with high-quality polyamide (PA66) and copper conductors, ensuring durability and optimal electrical conductivity. Its compact design (width of 0.205 inches) allows for space-efficient installation in panels and equipment.

Product Information

Standard Information

• Brand: WAGO
• Color: Gray
• Connection Type: Cage-clamp

Technical Specifications

• Current Rating: 24 A
• Material: Polyamide (PA66)
• Mounting Type: Din Rail
• Dimensions: H1.909 inches x W0.205 inches x D1.295 inches
• Conductor Range: 12-22 AWG
• Voltage Rating: 800 V
