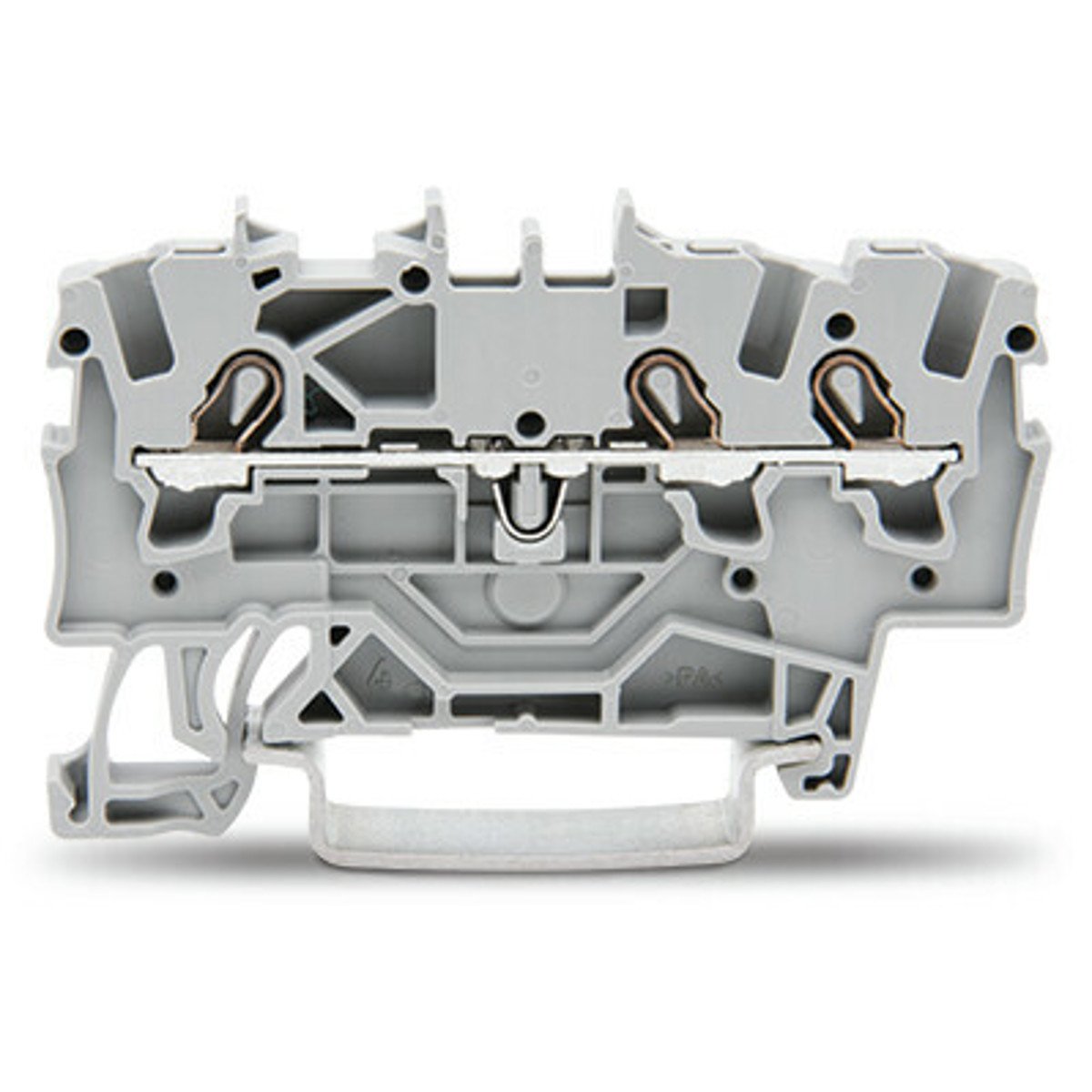

WAGO 2001-1301 Feed-through Terminal Block 1P 3 Wires

Product Description

The WAGO 2001-1301 is a feed-through terminal block designed for Ex e II applications. This terminal block supports one feed-through pole with three wires, designed for a nominal cross-section of one point five square millimeters. It features push-in connections and mounts onto DIN-35 rails, making it suitable for various installations.

• One feed-through pole and three wires
• Rated for a current of 18 Amperes
• Compatible with conductor sizes from twenty-two to fourteen AWG

Product Highlights

Ideal for wiring in hazardous locations, with reliable push-in CAGE CLAMP connections.

Product Information

Standard Information

• Catalog Number: 2001-1301
• Manufacturer: WAGO

Technical Specifications

• Color: Gray
• Country of Origin: Germany
• Conductor Material: Copper
• Conductor Range: Fourteen to twenty-two AWG
• Current Rating: 18 A
• Voltage Rating: 800 V
• Nominal Cross Section: 1.5 mm²
• Dimensions: Height 59.2 mm, Width 4.2 mm, Depth 32.9 mm
