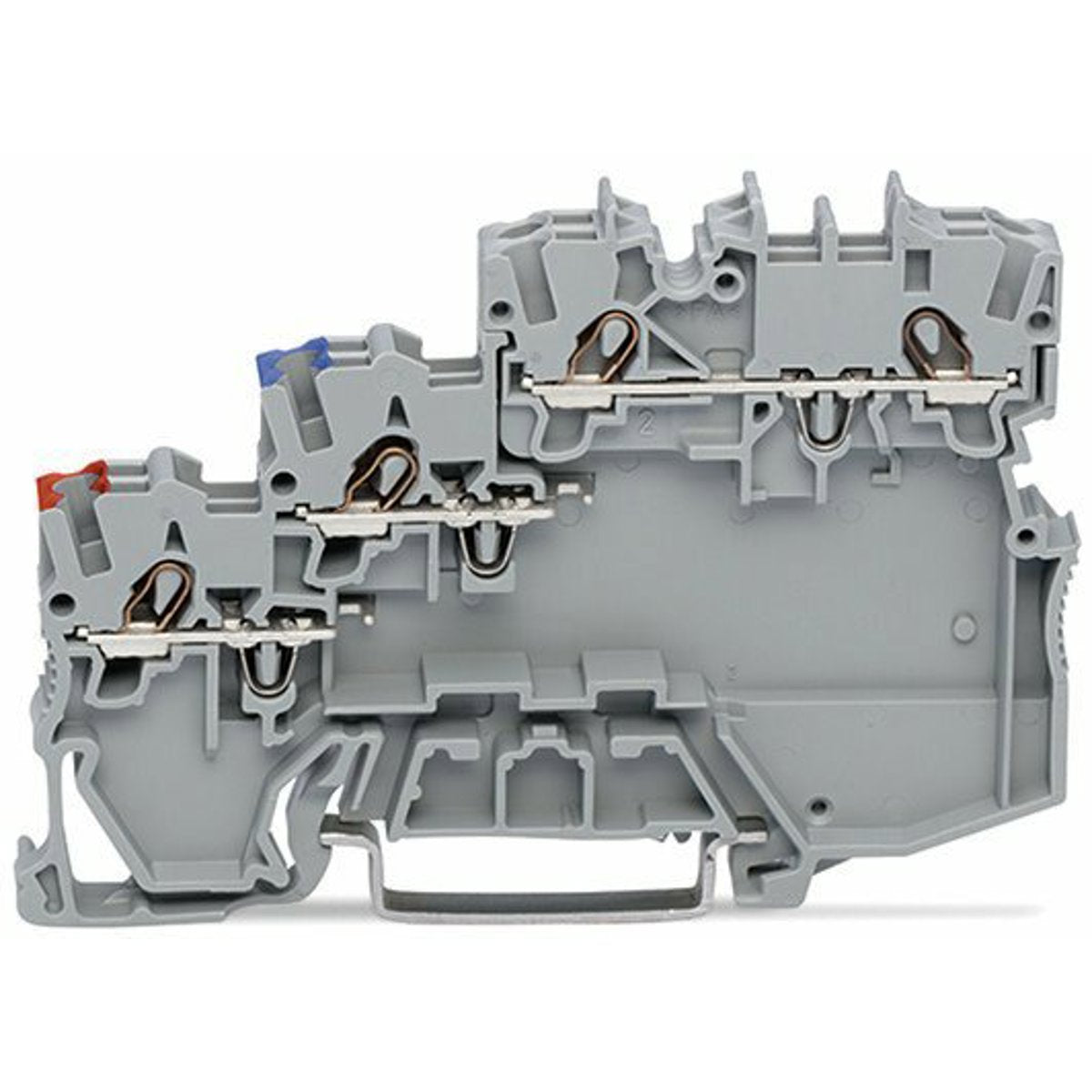

WAGO 2000-5311 Sensr Terminal Block Triple Deck - Replacement 2000-5311

Product Description

The WAGO 2000-5311 Triple-Deck Terminal Block provides efficient PNP high-side switching with robust design and reliable performance. This gray terminal block is engineered for accommodating three conductors and supporting eight wires with push-in connections, making installation swift and secure.

• Supports a wire size range from 24AWG to 16AWG
• Designed for fast DIN-35 rail mounting
• Features push-in CAGE CLAMP spring connections

Product Highlights

Offering a 13.5A current rating and a compact design, this terminal block ensures optimal conductivity and functionality in a variety of electrical settings. Its use of polyamide (PA66) material enhances durability, suitable for demanding industrial environments.

Product Information

Standard Information

• MPN: 2000-5311
• Brand: WAGO

Technical Specifications

• Voltage Rating: 250V
• Conductor Range: 16-24 AWG
• Current Rating: 13.5A
• Country of Origin: Germany
• RoHS Compliant: Yes
• Dimensions: Height 81.1 mm, Width 7 mm, Depth 52.4 mm
