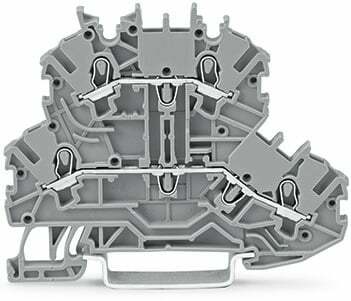

WAGO 2000-2201 Double-Deck Terminal Block 13.5A 16-24 AWG Gray

Product Description

The WAGO 2000-2201 Terminal Block provides reliable connection solutions for power distribution and protection setups. This gray, polyamide terminal block features a double-deck design and supports a conductor range of 16-24 AWG with a nominal cross-section of 1 mm².

• Equipped with Push-in CAGE CLAMP spring connections for quick and secure wiring
• Suitable for DIN-35 rail mounting, enhancing installation flexibility
• Capable of handling up to 13.5A current, suitable for Ex e II applications

Product Highlights

WAGO's innovative double-deck design allows for density in applications where space is at a premium, ensuring efficient use of panel space.

Product Information

Standard Information

• RoHS Compliance: Yes
• Country of Origin: Made in China

Technical Specifications

• Catalog Number: 2000-2201
• Conductor Material: Copper
• Mounting Type: DIN Rail
• Voltage Rating: 500V
• Connection Type: Terminals (Cage-clamp)
• Dimensions: H69.7mm x W3.5mm x D51.7mm
• Weight: 7.33 grams
