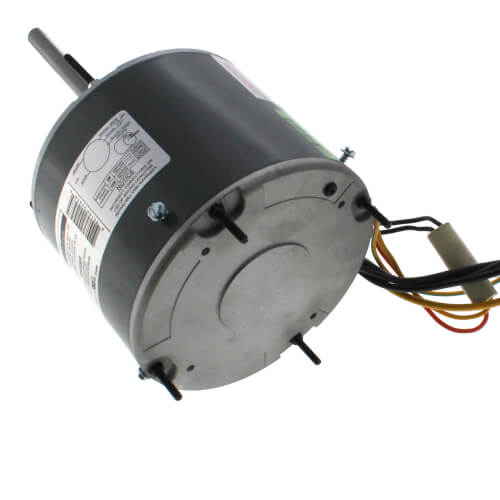

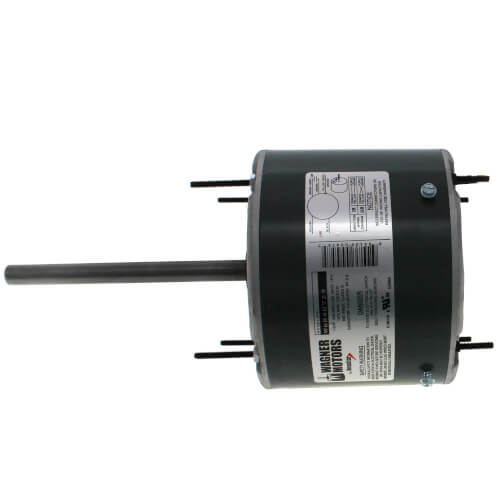

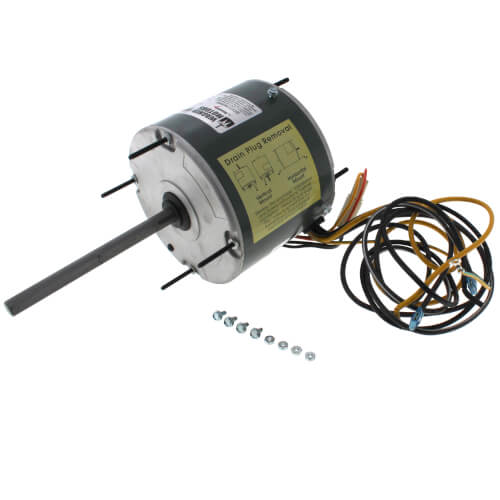

DiversiTech WG840729 1/3 HP 208-230 VAC Condenser Fan Motor

Product Description

The DiversiTech WG840729 is a 1/3 horsepower condenser fan motor designed for HVAC applications. It operates at 208-230 VAC and is suitable for various mounting configurations. This motor features a standard 48-frame size which offers easy installation with standard mounting brackets.

• Low power consumption for energy efficiency
• Class B insulation for reliable operation
• Equipped with automatic thermal overload protection

Product Highlights

Designed for efficient cooling applications, this motor is electrically reversible for versatile airflow direction. It includes extended mounting bolts and wires for enhanced installation ease in tight spaces.

Product Information

Standard Information

• Brand: DiversiTech
• MPN: WG840729

Technical Specifications

• Horse Power: 1/3
• Voltage: 208/230 VAC
• Amperage: 2.8
• RPM: 1075
• Speeds: 1
• Frame Size: 48
• Insulation Class: B
• Lead Wire Length: 30 inches
• Motor Length: 10.41 inches
• Motor Diameter: 5.59 inches
• Shaft Diameter: 1/2 inch
• Rotation: CW/CCW
• Temperature Rating: 60 degrees C / 140 degrees F
