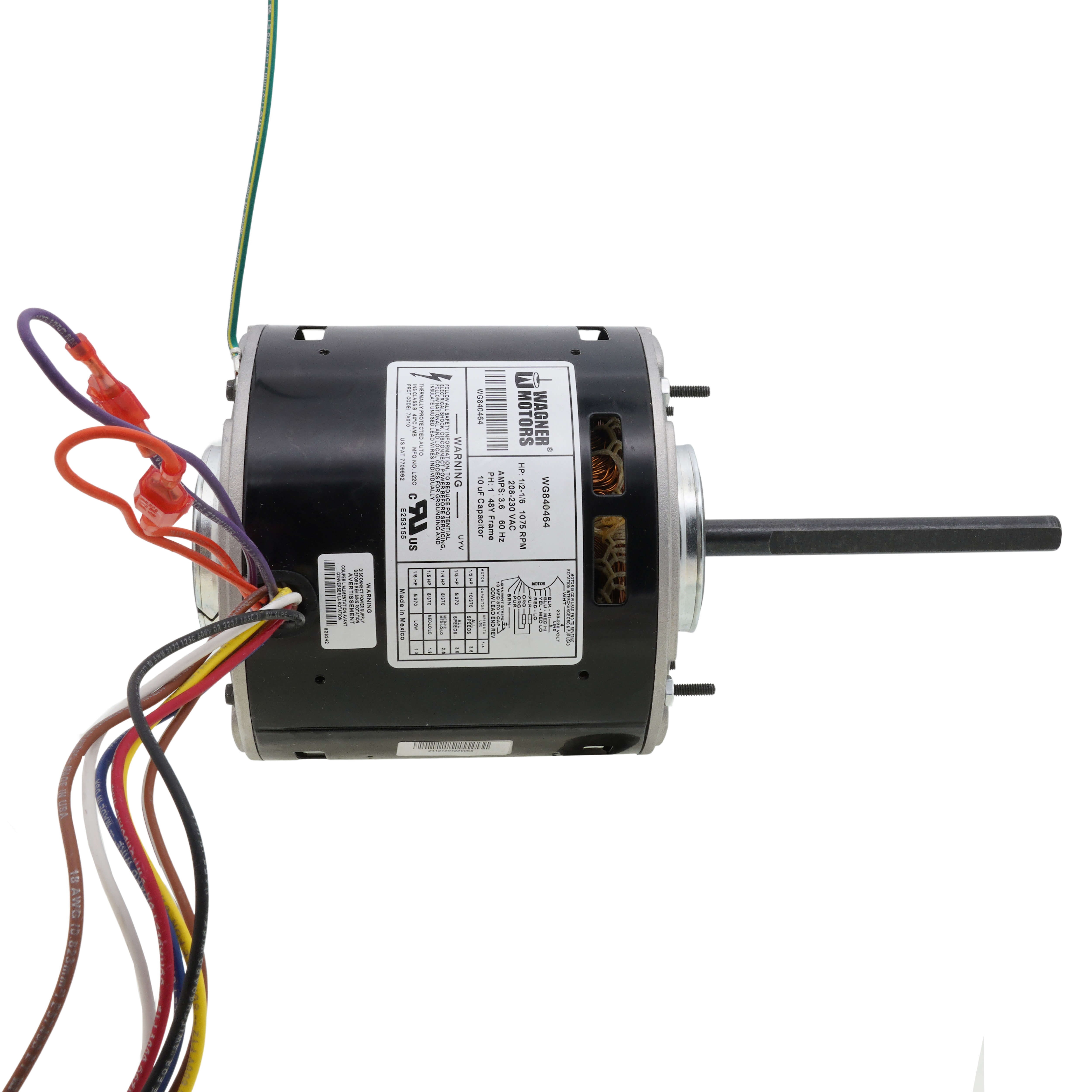

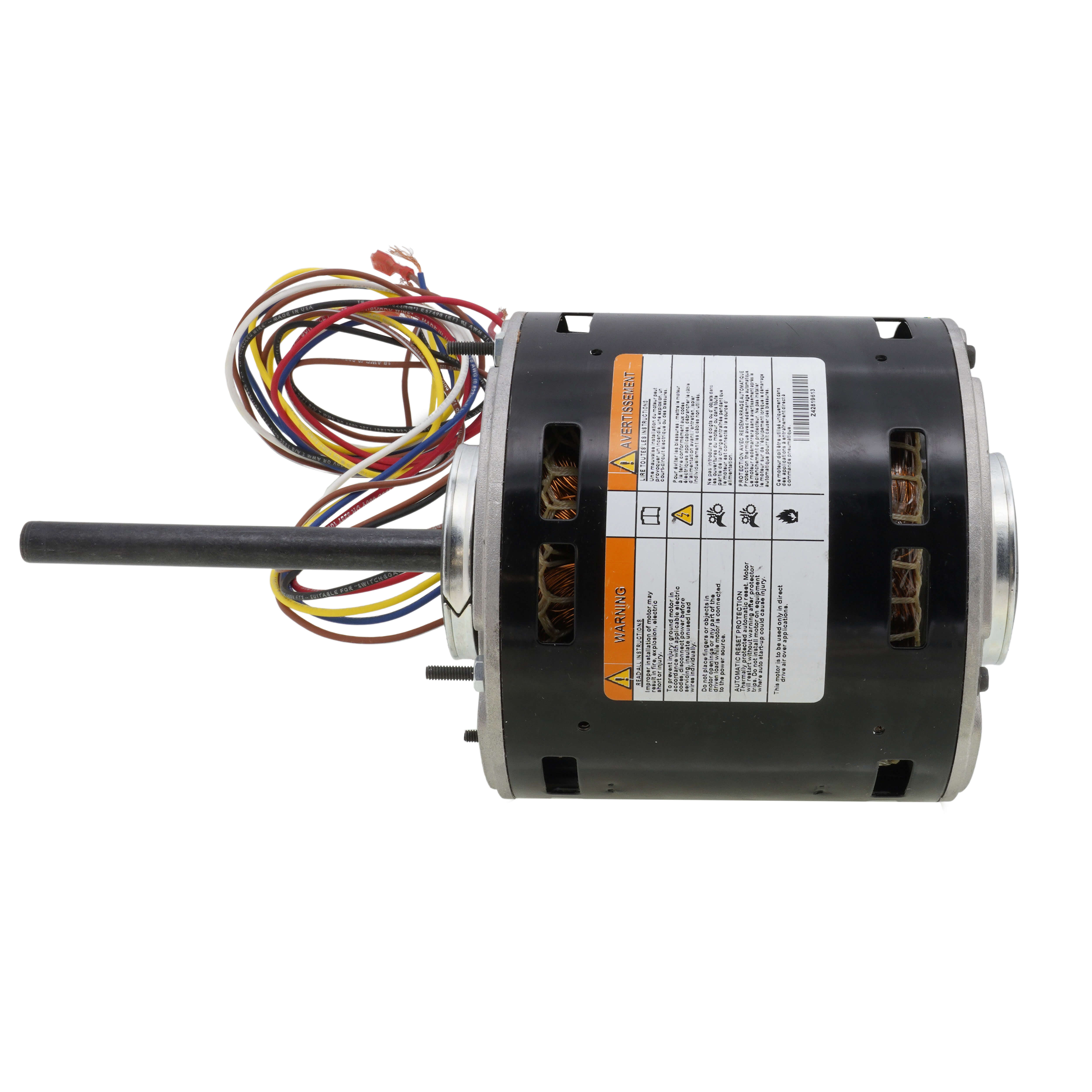

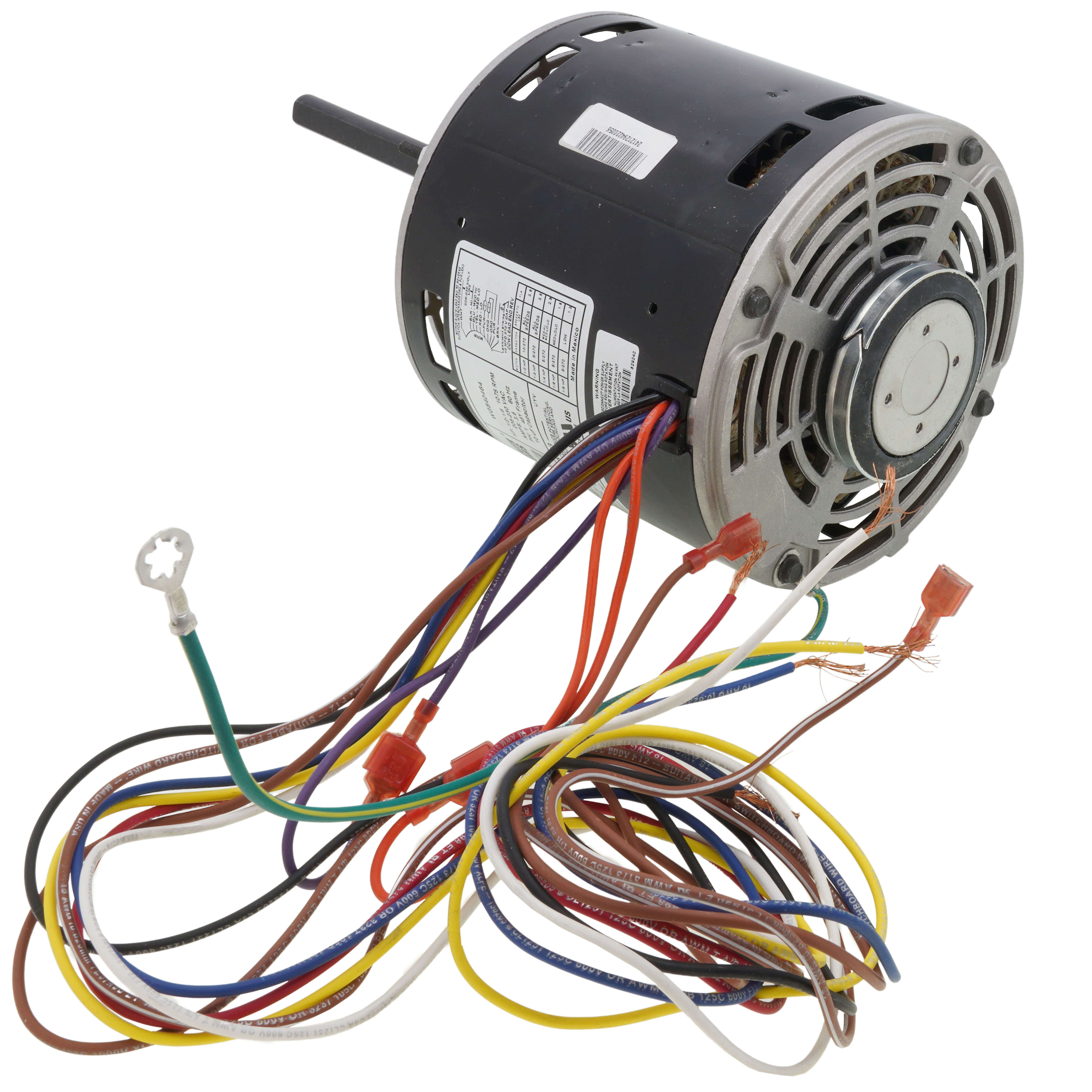

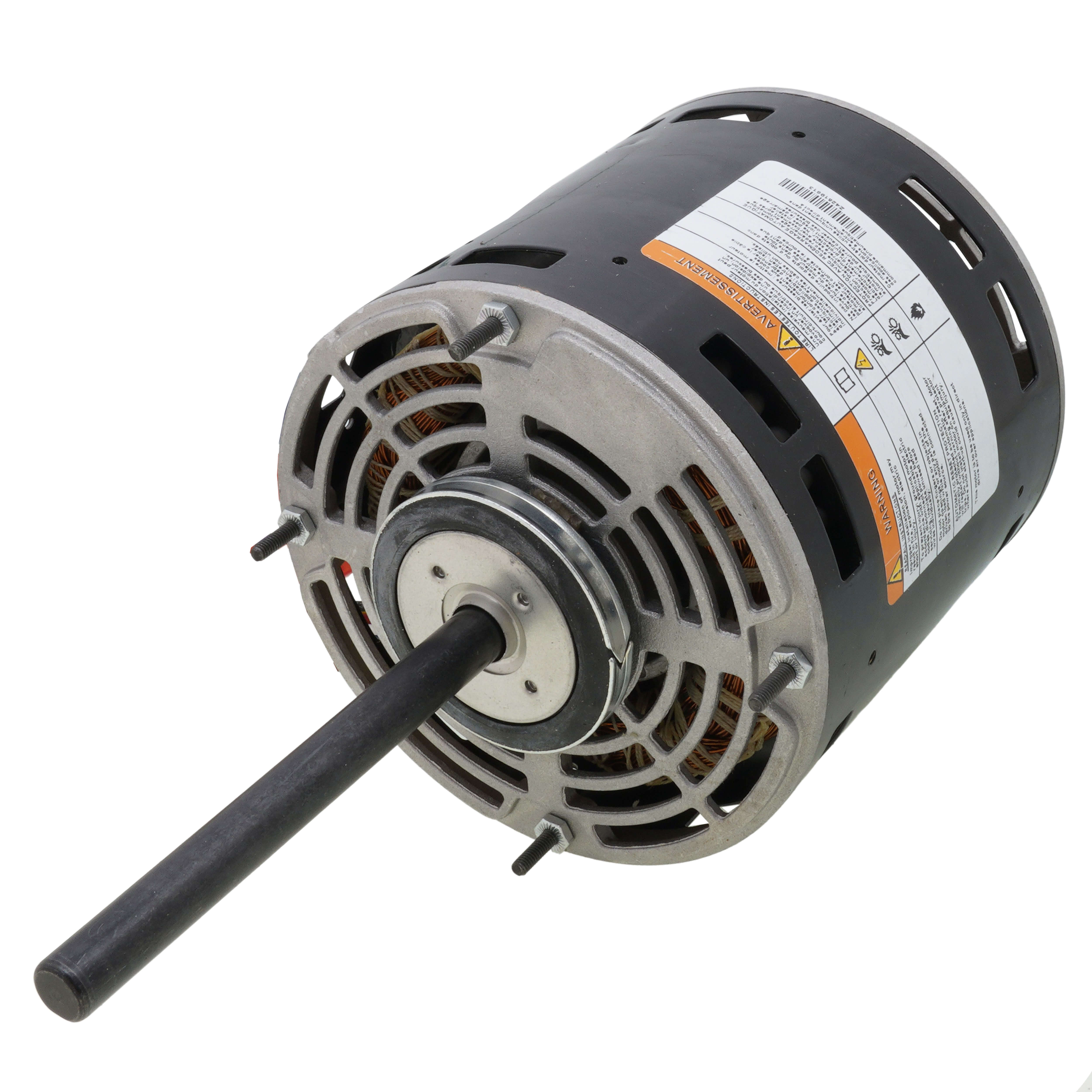

DIVERSITECH WG840464 MULTI-HP FURNACE BLOWER MOTOR 208-230V 1075 RPM

Product Description

The DiversiTech WG840464 Multi-Horsepower Direct Drive Furnace Blower Motor is engineered for versatility and durability. This blower motor is capable of operating at multiple horsepower settings, making it a flexible solution for various HVAC applications.

• Multi-horsepower settings include 1/2, 1/3, 1/4, 1/5, and 1/6 HP.
• Operates on 208-230V power supply, with a speed of 1075 RPM.
• Suitable for continuous air over applications with automatic thermal overload protection.

Product Highlights

This motor features multiple speeds, thermally protected design and is built to accommodate a range of 48-frame installations. Its low power consumption and quiet operation enhance its efficiency and usability in commercial and residential settings.

Product Information

Standard Information

• Frame Size: 48 standard
• Shaft Dimensions: Standard length with flats
• Thermal Protection: Automatic overload
• Insulation: Class B

Technical Specifications

• Voltage: 208-230V
• Amp Ratings: 1.8, 3.6, 2.5, 3.9, 1.3
• Speeds: 4
• Horse Power: 1/5, 1/3, 1/6, 1/2, 1/4
• Rotation: Reversible
• Bearings: Ball
• Max Ambient Temperature: 140 degrees Fahrenheit
