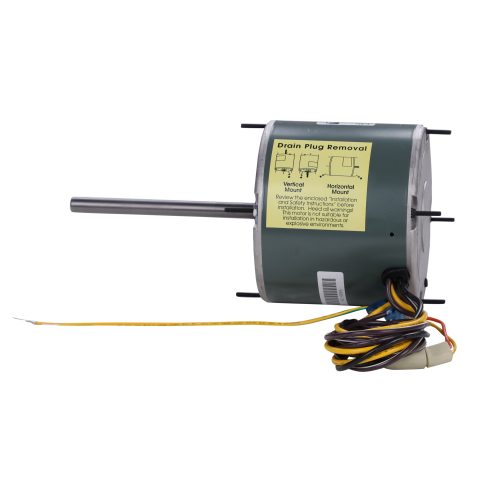

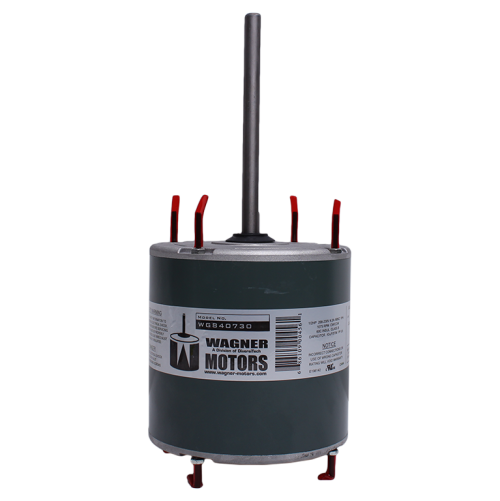

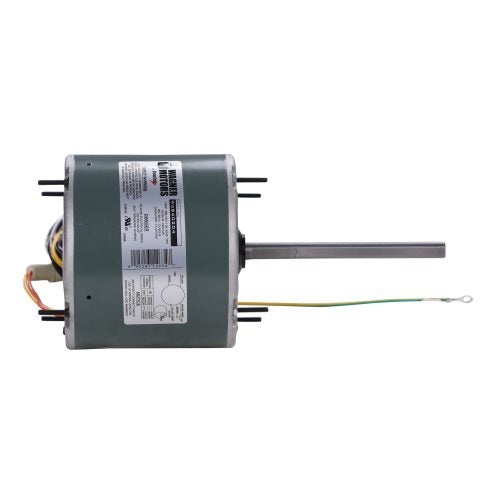

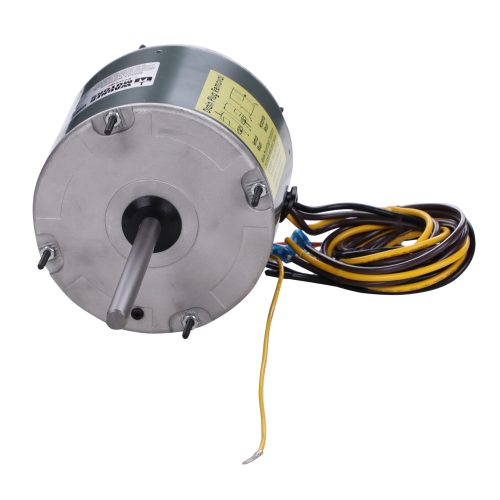

Wagner Motors WG840731 Single Speed Condenser Fan Motor 3/4HP, 1075/1 RPM, 4.5FLA, 208-230V, 60C Ambient

Product Description

The Wagner Motors WG840731 is a single-speed condenser fan motor designed for HVAC applications. This 3/4 HP motor operates at 1075 RPM with a 4.5 FLA rating and is suitable for 208-230V power sources. It features a standard 48 frame motor casing and installs with standard 48 frame mounting brackets. The motor is electrically reversible and includes an automatic thermal overload protector.

• Installs with all standard 48 frame mounting brackets
• Features an automatic thermal overload protector and class B insulation
• Includes drain holes with plugs on both end plates

Product Highlights

This condenser fan motor is designed for quiet operation and features extended studs for easy installation in cramped spaces. It has ball bearings for greater heat endurance and enhanced motor life.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840731

Technical Specifications

• Power Rating: 3/4 HP
• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Motor FLA: 4.5 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48
• Insulation Class: B
• Mounting: Shaft Up/Shaft Down/Belly Band
• Application: HVAC
