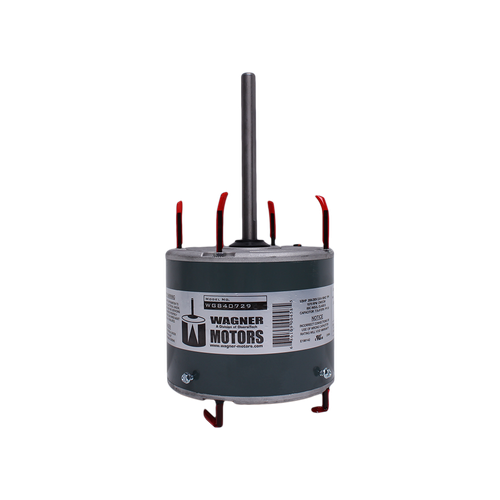

Wagner Motors WG840729 Condenser Fan Motor 1/3HP 1075/1 RPM

Product Description

The Wagner Motors WG840729 condenser fan motor is a single-speed, electrically reversible motor with automatic overload protection. This 1/3 HP motor operates at 1075 RPM and is designed with a standard 48 frame motor size. It features 36-inch leads and operates on a 60 Hz frequency with low power consumption.

• Features reversing plugs and extended thru bolts.
• Ball bearing design allows for greater heat endurance and improved performance.
• Extended mounting bolts provide easier installation in cramped spaces.

Product Highlights

This condenser fan motor is ideal for HVAC applications, offering reliable performance and easy installation.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840729

Technical Specifications

• Volts: 208 - 230
• Rated Horsepower (HP): 1/3
• Hertz: 60
• Amps: 2
• Bearing Type: Ball
• Body Diameter ( in.): 5.625
• Capacitor: 7.5/370
• Enclosure Type: Totally Enclosed
• Insulation Class: B
• Motor Type: PSC
• Mounting Type: Belly Band
• Rotation: Reversible
• RPM: 1075
• Speeds: 1
• Temperature Rating: 60° C / 140° F
• Shaft Size: 1/2 in Dia x 5 in L
• Motor FLA: 2.8 Amp
• NEMA Frame Size: 48
• Application: HVAC
• Frequency Rating: 60 Hz
• Phase: 1
