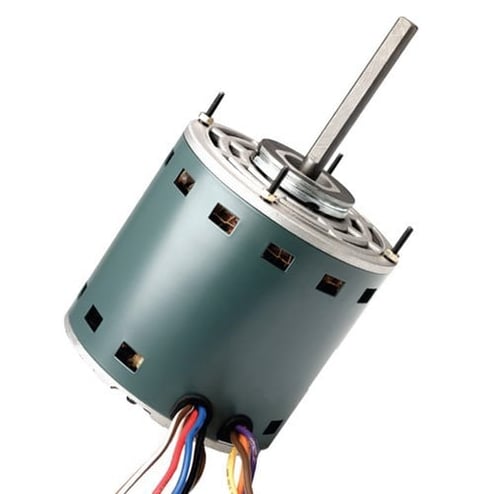

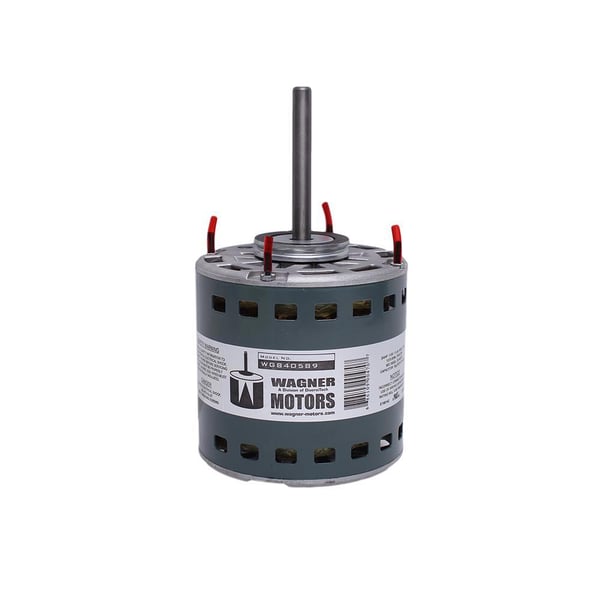

Wagner Motors WG840589 Direct Drive Furnace Blower Motor 3/4HP 1075 RPM

Product Description

The Wagner Motors WG840589 direct drive furnace blower motor operates at 3/4 horsepower with a RPM rating of 1075/3. This motor runs on 115 volts and is designed for easy installation with standard 48 frame mounting brackets. The motor is equipped with 36-inch leads for straightforward setup. With automatic overload protection and class B insulation, this motor is reliable for various applications.

• Installs with standard 48 frame mounting brackets
• Protected by an automatic overload
• Class B insulation

Product Highlights

This direct drive motor is an electrically reversible solution suitable for applications like condenser fans and blower motors.

Product Information

Standard Information

• Brand: Wagner Motors
• MPN: WG840589

Technical Specifications

• Horsepower: 3/4HP
• Voltage Rating: 115V
• Amperage Rating: 11.3 A Full Load
• Application Type: Condenser Fan Motors, Fan & Blower Motors
• Bearing Type: Sleeve
• Enclosure Type: OAO
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: Belly Band/Shaft Up/Down
• Number of Speeds: 3
• Phase: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Speed: 1075 rpm
• Temperature Rating: 140 deg F
