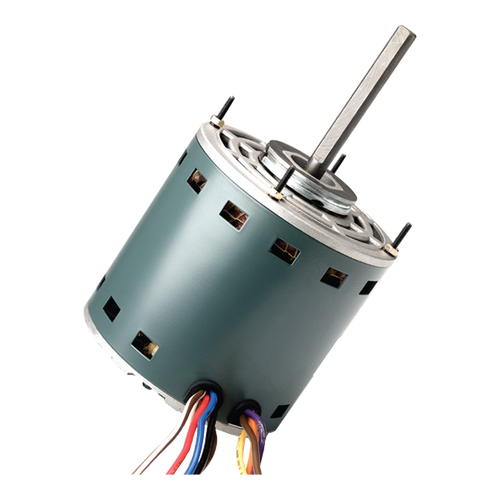

Wagner Motors WG840583 Direct Drive Furnace Blower Motor 1/4HP 1075/3 RPM

Product Description

The Wagner Motors WG840583 direct drive furnace blower motor is designed for effective heating applications. This motor features a power rating of one fourth horsepower and operates at speeds of one thousand seventy-five RPM and sixty hertz. Additionally, it operates on one hundred fifteen volts, making it versatile for various installations.

• Features reversing plugs and extended thru bolts for flexible installation.
• Incorporates automatic overload protection and class B insulation.
• Includes thirty-six inch leads for user-friendly setup.

Product Highlights

The motor is suitable for furnace applications, ensuring reliable airflow and temperature control.

Product Information

Standard Information

• Brand: Wagner Motors
• MPN: WG840583

Technical Specifications

• Volts: 115
• Rated Horsepower (HP): 1/4
• Hertz: 60
• Amps: 3.8
• Body Diameter: 5.625 inches
• Capacitor: 10/370
• Enclosure: Open
• Insulation Class: B
• Motor Type: PSC
• Mounting: Belly Band
• RPM: 1075
• Speeds: 3
• Temperature Rating: 40°C / 130°F
• Shaft: 1/2 in x 5 in
• Phase: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 4-1/2 in L
• Overload Protector: Automatic Thermostatic
• FLA: 4.6
