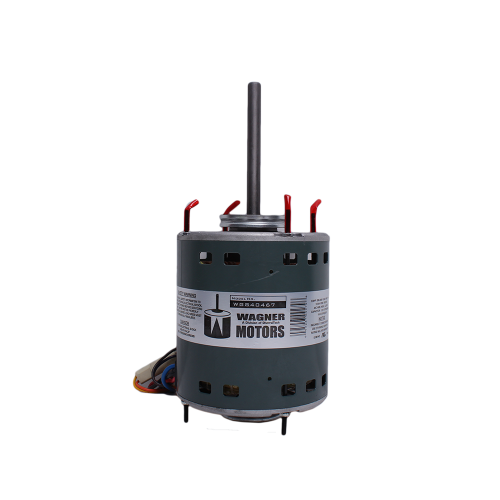

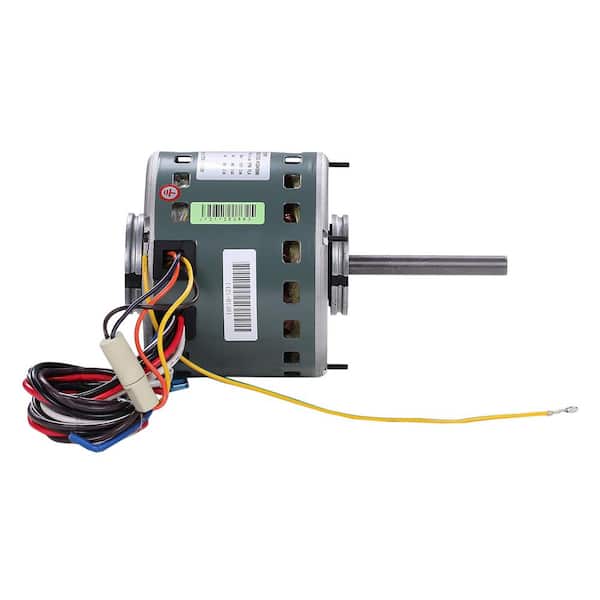

Wagner Motors WG840467 Multiple Horsepower Motor, DDFB, 208-230V, 1075/4 Speed, 3/4HP MAX

Product Description

The Wagner Motors WG840467 Multiple Horsepower Direct Drive Furnace Blower Motor is designed for a range of applications. This 208-230V motor features 1075/4 speeds, a maximum of 3/4HP, and is electrically reversible. It includes 36 in. leads to ease installation.

• Features reversing plugs and extended thru bolts.
• Includes 36 inch leads and low power consumption.
• Ball bearing design allows for greater heat endurance and improved performance.

Product Highlights

The WG840467 motor is ideal for furnace blower applications, offering multiple horsepower options and easy installation.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840467
• Country of Origin: China

Technical Specifications

• Volts: 208 - 230
• Rated Horsepower (HP): 3/4 - 1/5
• Hertz: 60
• Amps: 4.2
• Bearing: Sleeve
• Body Diameter ( in.): 5.625
• Capacitor: 20/370
• Enclosure: Open
• Insulation Class: B
• Motor Type: PSC
• Mounting: Belly Band
• Rotation: REVERSIBLE
• RPM: 1075
• Speeds: 4
• Temp. Rating: 40° C / 130° F
• Shaft ( in.): 1/2 in. x 5 in.
• Ducted or Ductless: Ducted
• Brand: DiversiTech
• Power Frequency: 60 hz
• Model: Furnace Blower Motor
• MPN: WG840467
• UPC: Does not apply
• Country of Origin: China
