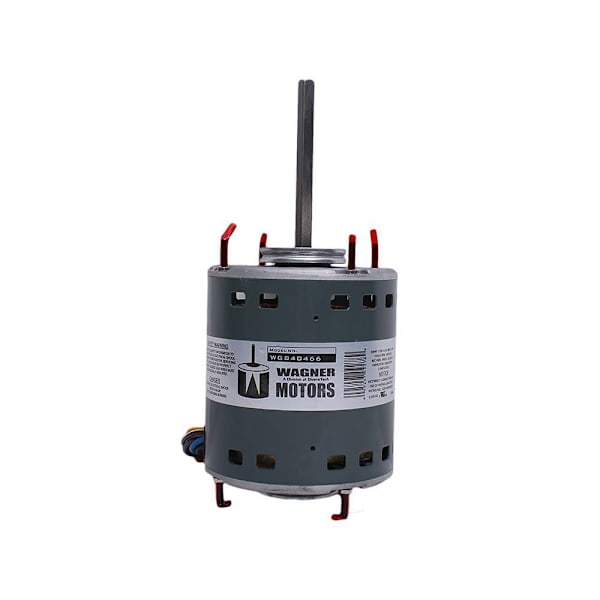

Wagner Motors WG840466 Multiple Horsepower Motor 3/4HP MAX

Product Description

The Wagner Motors WG840466 Multiple Horsepower Direct Drive Furnace Blower Motor is designed for a range of applications. This 115V motor features 1075/4 speed and a 3/4HP MAX. It is electrically reversible and includes 36 in. leads to ease installation.

• Features reversing plugs and extended thru bolts.
• Includes 36 inch leads and low power consumption.
• Motor is electrically reversible.

Product Highlights

The Wagner Motors WG840466 is a multiple horsepower motor with a reversible design and easy installation.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840466
• Country of Origin: CHINA

Technical Specifications

• Volts: 115
• Rated Horsepower (HP): 3/4 - 1/5
• Hertz: 60
• Amps: 8.1
• Bearing: Sleeve
• Body Diameter ( in.): 5.625
• Capacitor: 20/370
• Enclosure: Open
• Insulation Class: B
• Motor Type: PSC
• Mounting: Belly Band
• Rotation: REVERSIBLE
• RPM: 1075
• Speeds: 4
• Temp. Rating: 40° C / 130° F
• Shaft ( in.): 1/2 in. x 5 in.
• Amperage Rating: 8.1/6.6/4.6/3.8/3.1 A Full Load
• Application Type: Condenser Fan Motors, Fan & Blower Motors
• Frame: NEMA 48
• Horsepower: 3/4, 1/2, 1/3, 1/4, 1/5 hp
• Mounting Type: Belly Band/Shaft Up/Down
• Number of Speeds: 4
• Phase: 1 ph
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 5-1/2 in L
• Speed: 1075 rpm
• Temperature Rating: 140 deg F
• Type: Multi-Horsepower
• Voltage Rating: 115 VAC
• Maximum rpm: 1075 RPM
• Motor Mounting Type: Belly Band / Shaft Up‑Down Mount
• Motor Shaft Rotation: REV
• Name Plate RPM: 1075 RPM
• Shaft Diameter: 1/2 in.
• Shaft Length: 5-1/2 in.
• Voltage: 115V
