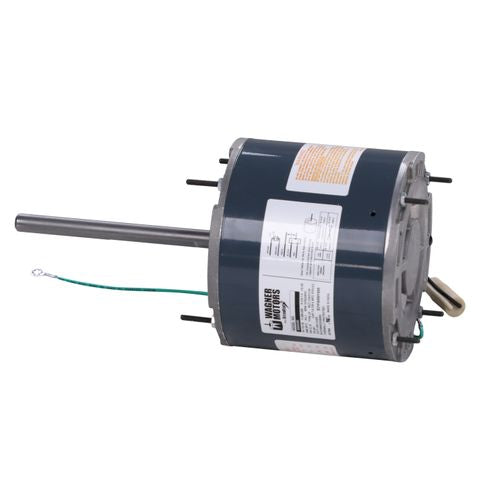

Wagner Motors WG840465 Multiple Horsepower Motor 208-230V 1/3HP MAX

Product Description

The Wagner Motors WG840465 is a multiple horsepower motor designed for durability and efficiency. This motor operates at 208-230 volts with a maximum horsepower rating of one-third. It features a totally enclosed design, making it suitable for various applications.

• Voltage range of 208 to 230 volts
• Capable of 2-speed operation with RPM of 1075
• Ball bearing design for increased reliability

Product Highlights

This motor includes features such as reversing plugs and extended mounting bolts for easy installation in tight spaces. The ball bearing design allows for better heat management and enhanced performance.

Product Information

Standard Information

• Brand: Wagner Motors
• MPN: WG840465

Technical Specifications

• Rated Horsepower: 1/3 - 1/6 HP
• Hertz: 60
• Amps: 2.6
• Body Diameter: 5.625 inches
• Capacitor: 5/370
• Enclosure: Totally Enclosed
• Insulation Class: B
• Motor Type: PSC
• Mounting: Belly Band
• Speeds: 2
• Temperature Rating: 60 °C / 140 °F
• Shaft Dimensions: 1/2 inch x 5 inches
• Ducted or Ductless: Ducted
• A2L Certified: Not Applicable
