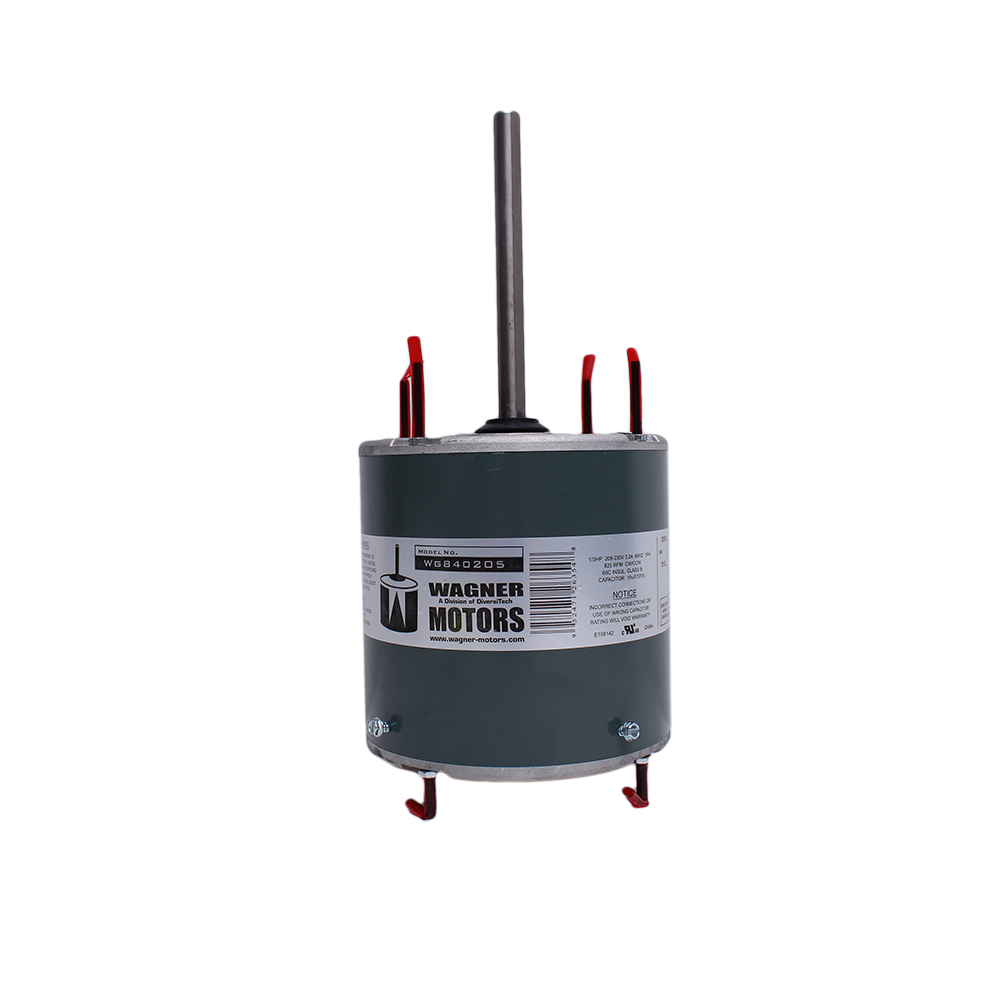

Wagner Motors WG840205 Condenser Fan Motor 1/3HP 825/1 RPM 208-230V 60C Ambient

Product Description

The Wagner Motors WG840205 condenser fan motor is a single-speed, electrically reversible motor with automatic overload protection. This 1/3 HP motor operates at 825 RPM and 208-230V, with a 60 Hz frequency. It features a standard 48 frame motor size and includes 36-inch leads, suitable for condenser fan applications.

• Features reversing plugs and extended thru bolts.
• Ball bearing design for greater heat endurance and improved performance.
• Extended mounting bolts provide easier installation.

Product Highlights

Condenser fan motor with ball bearing design, overload protection, and extended mounting bolts for easy installation.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840205
• Country of Origin: CHINA

Technical Specifications

• Volts: 208 - 230
• Rated Horsepower (HP): 1/3
• Hertz: 60
• Amps: 2.4
• Bearing: Ball
• Body Diameter ( in.): 5.625
• Capacitor: 7.5/440
• Enclosure: Totally Enclosed
• Insulation Class: B
• Motor Type: PSC
• Mounting: Belly Band
• Rotation: REVERSIBLE
• RPM: 825
• Speeds: 1
• Temp. Rating: 60° C / 140° F
• Shaft ( in.): 1/2 in. x 5 in.
• Motor Mounting Type: Shaft Up/Shaft Down/Belly Band
• Name Plate RPM: 825
• Package Quantity: 1
• Phase: Single
• Shaft Diameter: 1/2 in.
• Shaft Length: 6 in.
• Voltage: 208/230V
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Motor HP: 1/3 HP
• Speed: 825 rpm
• Voltage Rating: 208 / 230 V
• Application: Condenser Fan Motors
• Number of Speeds: 1
