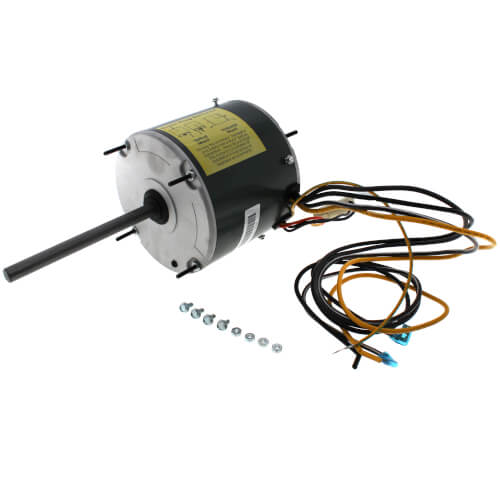

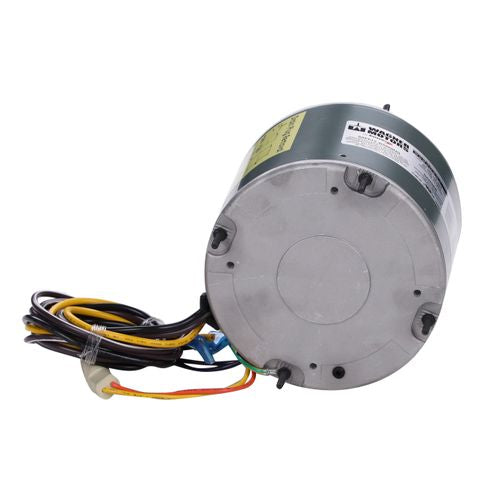

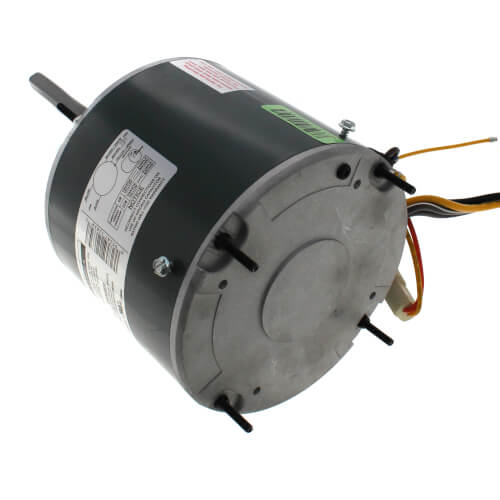

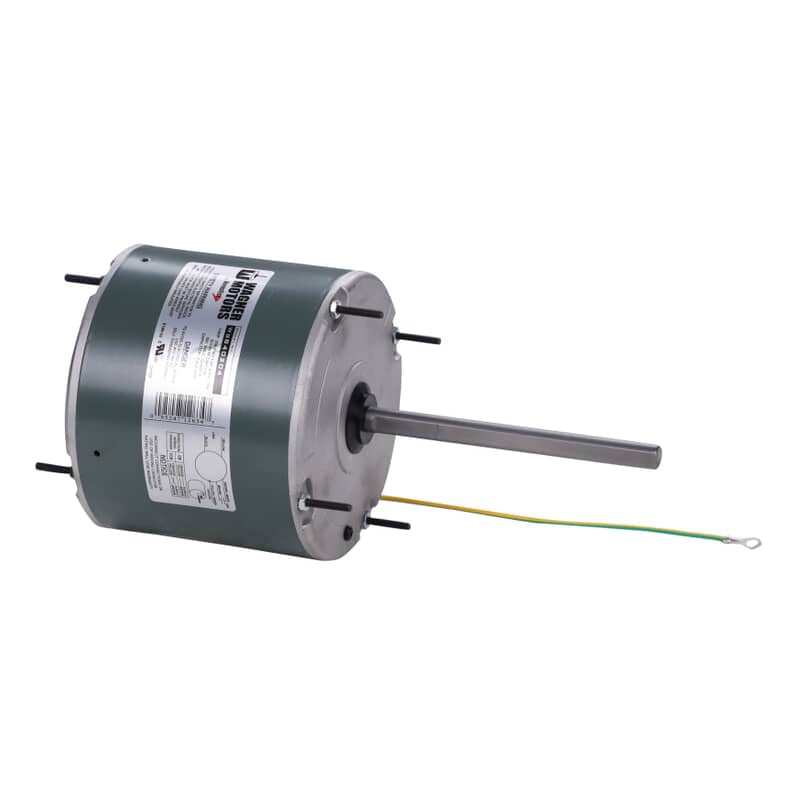

Wagner Motors WG840204 Condenser Fan Motor 1/4 hp 208-230 VAC

Product Description

The Wagner Motors WG840204 condenser fan motor is a 1/4 HP motor designed for condenser fan applications. It features a standard 48 frame, automatic thermal overload protection, and is electrically reversible. This motor has 30" leads, drain holes with plugs, and operates at 208-230 VAC and 60 Hz.

• Installs with all Standard 48 Frame Mounting Brackets
• Automatic Thermal Overload Protector
• Electrically Reversible

Product Highlights

This condenser fan motor is designed for easy installation and reliable performance in a variety of applications. It features extended mounting bolts and insulated run capacitor connections.

Product Information

Standard Information

• Brand: Wagner Motors
• Manufacturer Part Number: WG840204

Technical Specifications

• Amperage: 1.5
• Motor Type: Permanent Split Capacitor
• Horse Power: 1/4 HP
• Voltage: 208/230 V
• RPM: 825
• Speeds: 1
• Capacitor: 370 VAC
• Hertz: 60 Hz
• Insulation Class: B
• Mounting: Shaft up, shaft down, or belly band
• Bearing Type: Ball
• Finish: Grey-green powdercoat
• Frame Size: NEMA 48
• Rotation: CW/CCW
• Temperature Rating: 60 deg C / 140 deg F
• Lead Wire Length: 30 inches
• Lead Wire Gauge: #18 AWG
• Number of Speeds: 1
• Application: Condenser Fan Motors
