Product Description

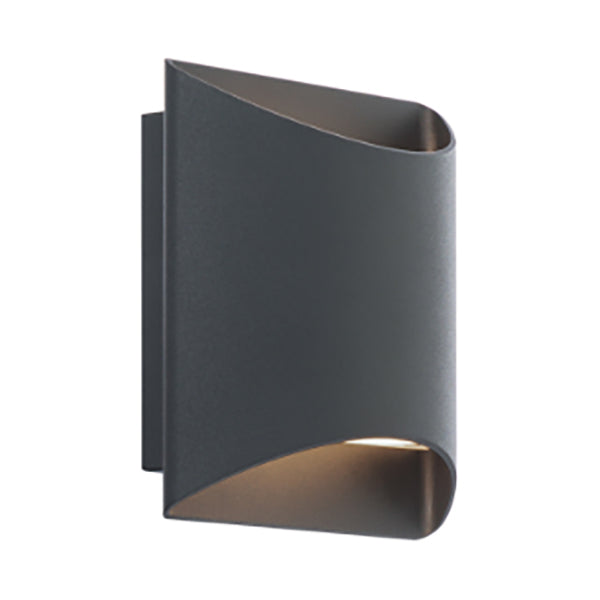

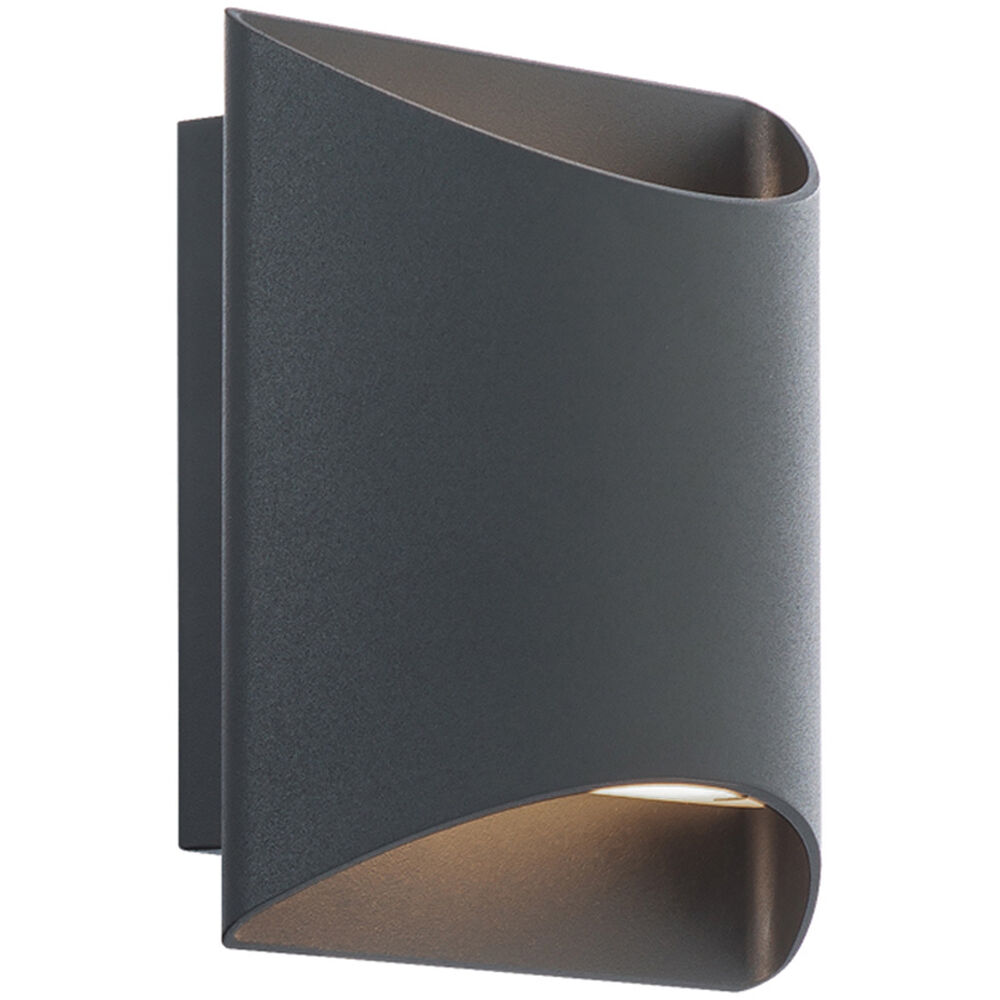

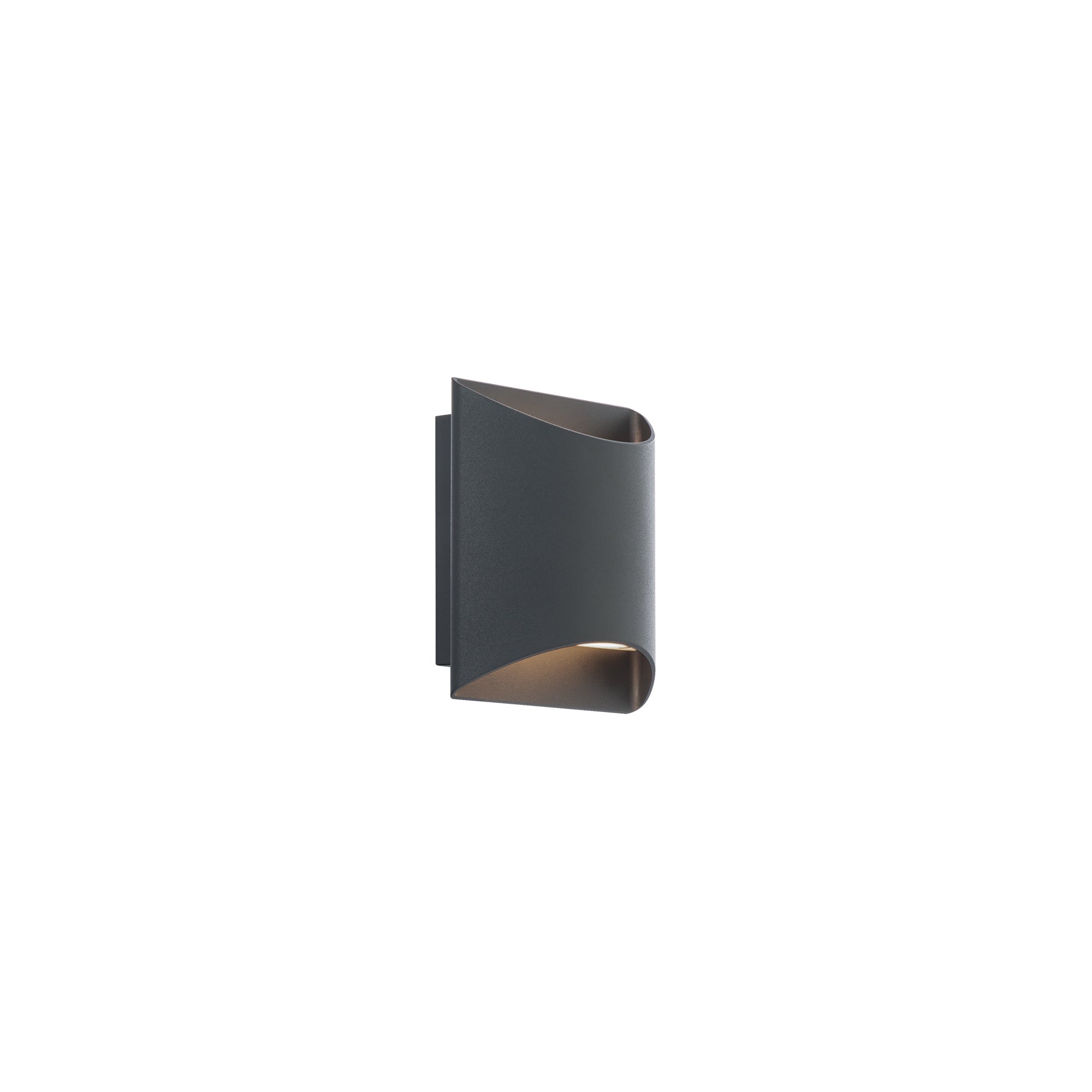

The WAC LIGHTING WS-55206-30-BK Duet Wall Sconce provides versatile up and downlight illumination. Constructed with a durable aluminum body and frosted glass diffuser, this 9.6W fixture delivers 380 lumens with a high CRI of 90. It features adjustable color temperature options (2700K, 3000K, 3500K) and supports ELV and TRIAC dimming from 100-10%. Designed for wall mounting in all orientations, its driver is concealed within the canopy.
- Provides up and downlight illumination with 380 delivered lumens and a 90 CRI.
- Features adjustable color temperature (2700K, 3000K, 3500K) and supports ELV/TRIAC dimming (100-10%).
- Constructed with an aluminum body and frosted glass diffuser, designed for versatile wall mounting.
Product Highlights
Versatile 9.6W LED wall sconce with adjustable CCT, dimming capabilities, and durable aluminum construction.
Product Information
Standard Information
-
Brand: WAC LIGHTING
-
Manufacturer Part Number: WS-55206-30-BK
-
Country of Origin: USA Assembled
Technical Specifications
-
Model: WS-55206
-
Color Temperature: 3000K
-
Finish: Black
-
LED Wattage: 9.6W
-
LED Lumens: 1000
-
Delivered Lumens: 380lm
-
CRI: 90
-
Input Voltage: 120 VAC, 50/60Hz
-
Dimming: ELV Dimming (100-10%), TRIAC Dimming (100-10%)
-
Rated Life: 50000 Hours
-
Construction Material: Aluminum body, frosted glass diffuser
-
Category: Wall Sconce
-
Bulb Shape: LED Module
-
Beam Spread: Flood
-
Lamping Included: Bulbs Included
-
Lamping Type: Integrated LED
-
Number of Bulbs: 2
-
Socket Type: LED Module - ACLED Module
-
Total System Wattage: 10.70W
-
Max Wattage Per Bulb: 5.35W
-

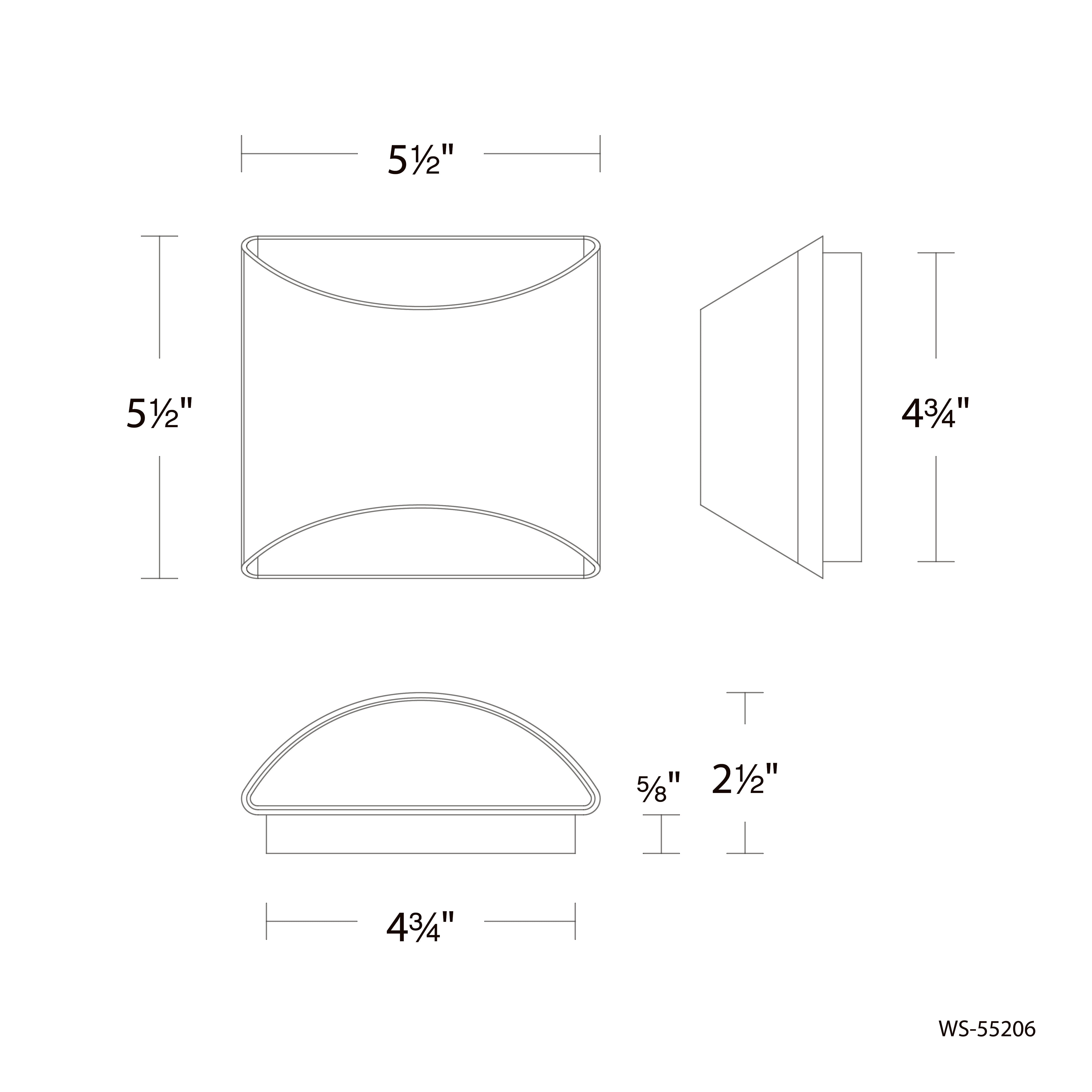

Backplate Depth: 0.68 inches
-
Backplate Height: 0.68 inches
-
Backplate Width: 4.75 inches
-
ADA Compliant: Yes
-
Title 20 Compliant: Yes
-
Title 24 Compliant: Yes
-
Certifications: ETL/cETL/IP44 Damp
-
Mounting Type: Wall
-
Complete System: Yes
-
Location Rating: Interior or Covered Exterior
-
Power Connection: Hardwired
-
Backplate Shape: Square
-
Shade Shape: Drum
-
Shade Color: Frosted
-
Collection: Duet
-
Light Count: 2-Light
-
Dark Sky Compliant: No
-
Energy Star Rated: No
