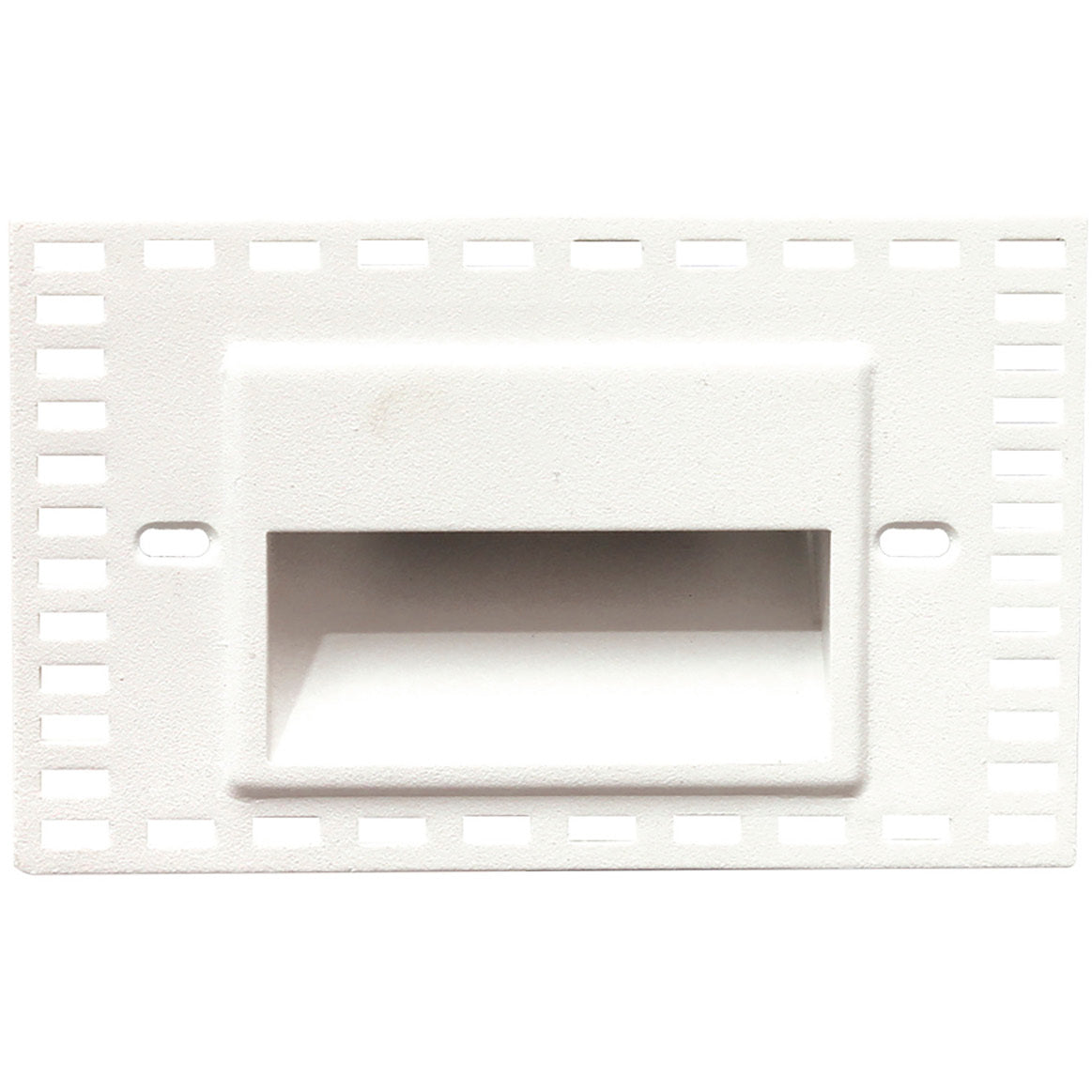

Wac Lighting WL-LED100TRCWT is a 120V invisible trim step and wall LED designed to mount into a standard 2" x 4" electrical junction box. The hardwired fixture includes a replaceable 3.3 W LED module producing 3000K light with 72 delivered lumens and CRI 90, and a rated life up to 50,000 hours. It features an IP44 damp rating, frosted glass lens, and ELV dimming to 10%.
Hardwired 120V step and wall light with replaceable 3.3 W LED module and 3000K color temperature
Installs into standard 2" x 4" junction box (fits minimum 3"L x 2"W x 2"D) and can be spackled/painted for invisible trim
Dimmable (ELV to 10%), IP44 damp rated, ADA compliant, frosted glass lens, rated life up to 50,000 hours
Product Highlights
Invisible trim design, replaceable LED module, ELV dimmable to 10%, IP44 damp rated
Product Information
Standard Information
Brand: WAC LIGHTING
Manufacturer Part Number: WL-LED100TRCWT
Country of Origin: China
Technical Specifications
Brand
Wac Lighting
Manufacturer Part Number
WL-LED100TRCWT
SKU
WL-LED100TR-C-WT
Model Name
120V Invisible Trim Step Light
Input Voltage
120V
Power Consumption
3.3 W
Delivered Lumens
72 lm
Efficacy
22 lm/W
Color Temperature
3000K
Color Rendering Index (CRI)
90
Beam Spread
56 degrees
Rated Life
50,000 hours
Dimmable
Yes (ELV dimming to 10%)
Mounting Type
Fits into 2" x 4" junction box; junction box mounting bracket included
