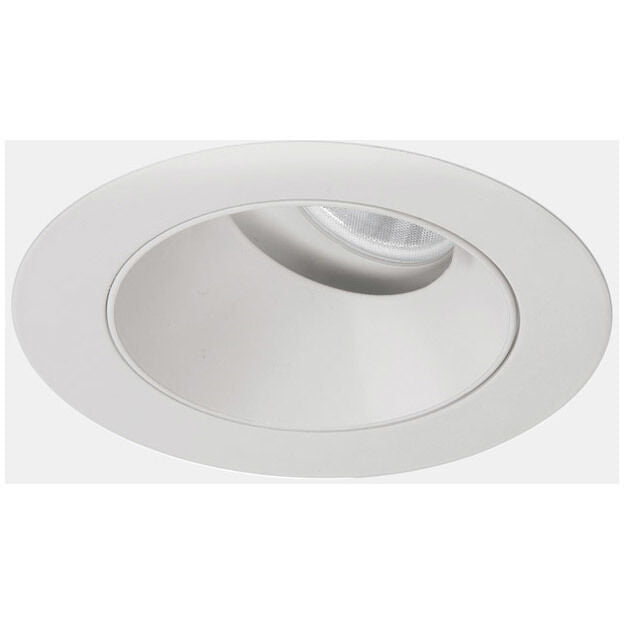

Wac Lighting R3ARAT-S927-WT Aether Round Adjustable Trim 16.5W (Spot 15)

Product Description

Wac Lighting R3ARAT-S927-WT is an Aether round adjustable trim with an integrated LED light engine that delivers a spot 15� beam at 2700K and 90 CRI. The unit is specified for recessed architectural lighting and lists a technical power of 16.5W. It includes a replaceable LED module, fits shallow housings for tight plenum spaces, and supports dimming for controlled output.

• Integrated LED light engine with replaceable module, 16.5W technical rating
• Spot 15� beam angle, 2700K color temperature, 90 CRI, approximately 740 lumens
• Dimmable to 1% with electronic low-voltage or 0-10V controls; ETL and cETL listed

Product Highlights

Recessed adjustable round trim, 16.5W integrated LED, 15� spot beam, 2700K/90 CRI, dimmable, ETL/cETL and Energy Star listings

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: R3ARAT-S927-WT
• Country of Origin: US

Technical Specifications

• Brand: WAC Lighting
• Manufacturer Part Number: R3ARAT-S927-WT
• Model Name: Aether Round Adjustable Trim with LED Light Engine
• Category: Led Recessed Architectural & Specification Lighting
• Power Consumption (Wattage): 16.5W
• Input Voltage: 120 Volts
• Lumens: 740 Lumens
• Beam Angle: 15� (Spot 15)
• Color Temperature: 2700K
• Color Rendering Index (CRI): 90
• Light Source: Integrated LED light engine (replaceable module)
• Number of Light Sources: 1
• Dimmable: Yes; smooth continuous dimming to 1% with electronic low-voltage or 0-10V dimmers
• Rated Life: 60,000 hours
• Mounting Type: Recessed ceiling mount

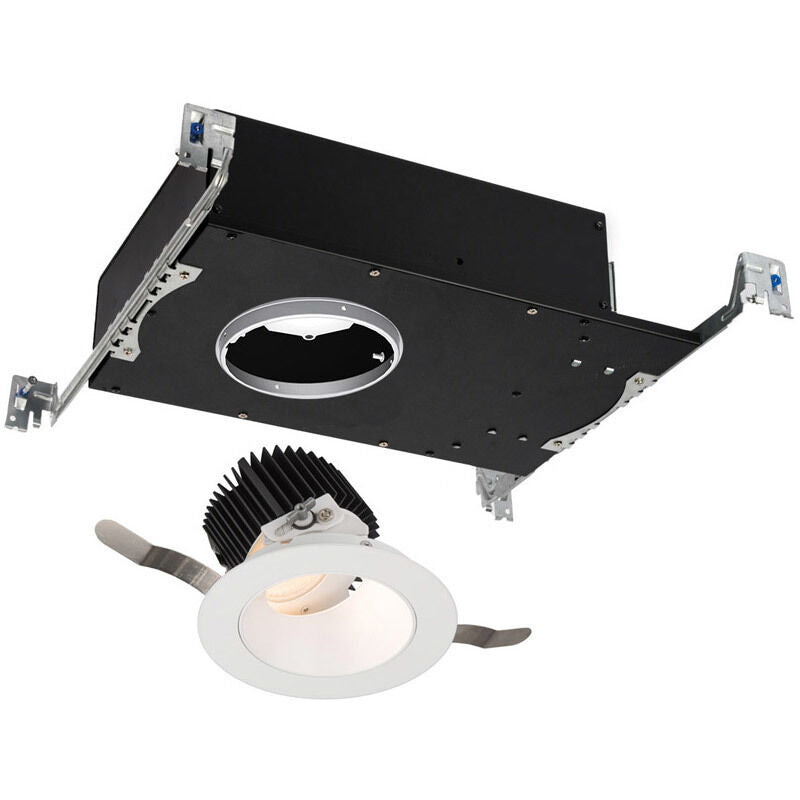

• Housing Compatibility: Fits 4.5" housing cutout with ~3.5" aperture; compatible with HR-3LED-H17A or HR-3LED-H17AC housings
• Dimensions: 5.13" L x 5.13" W x 3.50" H
• Material: Aluminum
• Certifications: ETL, cETL, Energy Star, Damp location listed, Title 24 compliant
• UPC: 790576419855
