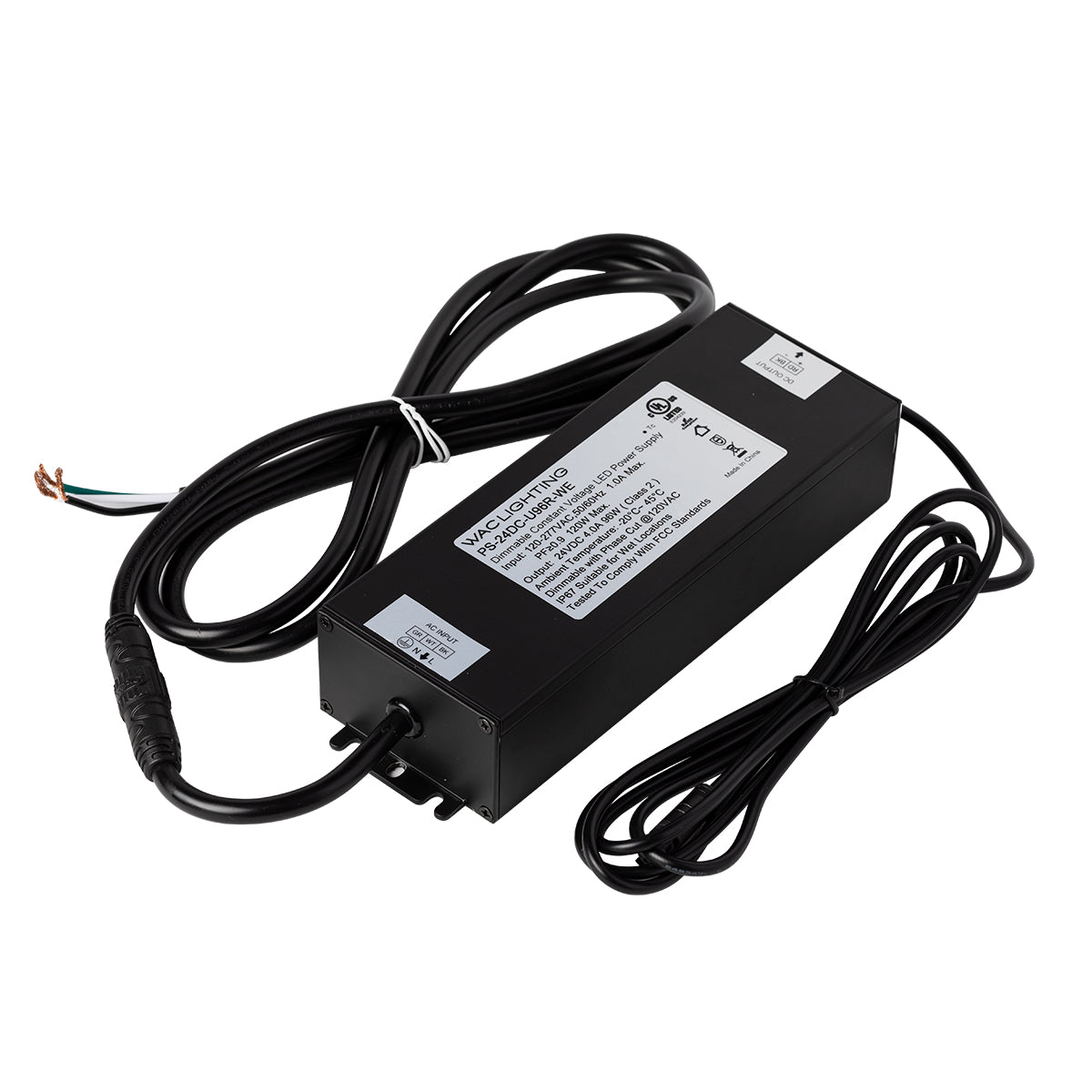

Wac Lighting PS-24DC-U96R-WE InvisiLED Outdoor Power Supply IP67 96W 120-277VAC/24VDC

Product Description

The WAC LIGHTING PS-24DC-U96R-WE is an InvisiLED Outdoor Power Supply, providing 96W of power with a 24VDC output. It accepts a universal input of 120-277 VAC at 50/60Hz. This unit features an IP67 enclosure rating, making it suitable for outdoor installations. It includes overload and short circuit protection for operational safety. The power supply supports ELV, MLV, and TRIAC dimming, and has a rated life of 50,000 hours. Its compact design allows for versatile mounting.

• Universal input voltage range of 120-277VAC, 50/60Hz.
• IP67 rated enclosure for protection against dust and water ingress.
• Features overload and short circuit protection for safe operation.

Product Highlights

Outdoor-rated 96W power supply with universal input, 24VDC output, and dimming capabilities.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: PS-24DC-U96R-WE

Technical Specifications

• Manufacturer Part Number: PS-24DC-U96R-WE
• Power Output: 96W
• Input Voltage: 120-277 VAC
• Output Voltage: 24VDC
• Enclosure Rating: IP67
• Input Frequency: 50/60Hz
• ELV Dimming Range: 100-1%
• MLV Dimming Range: 1-100%
• TRIAC Dimming Range: 100-1%
• Rated Life: 50000 Hours
• Power Factor: >= 0.9
• Output Class: Class 2
• Compliance: FCC Part 15 Class B Compliant
