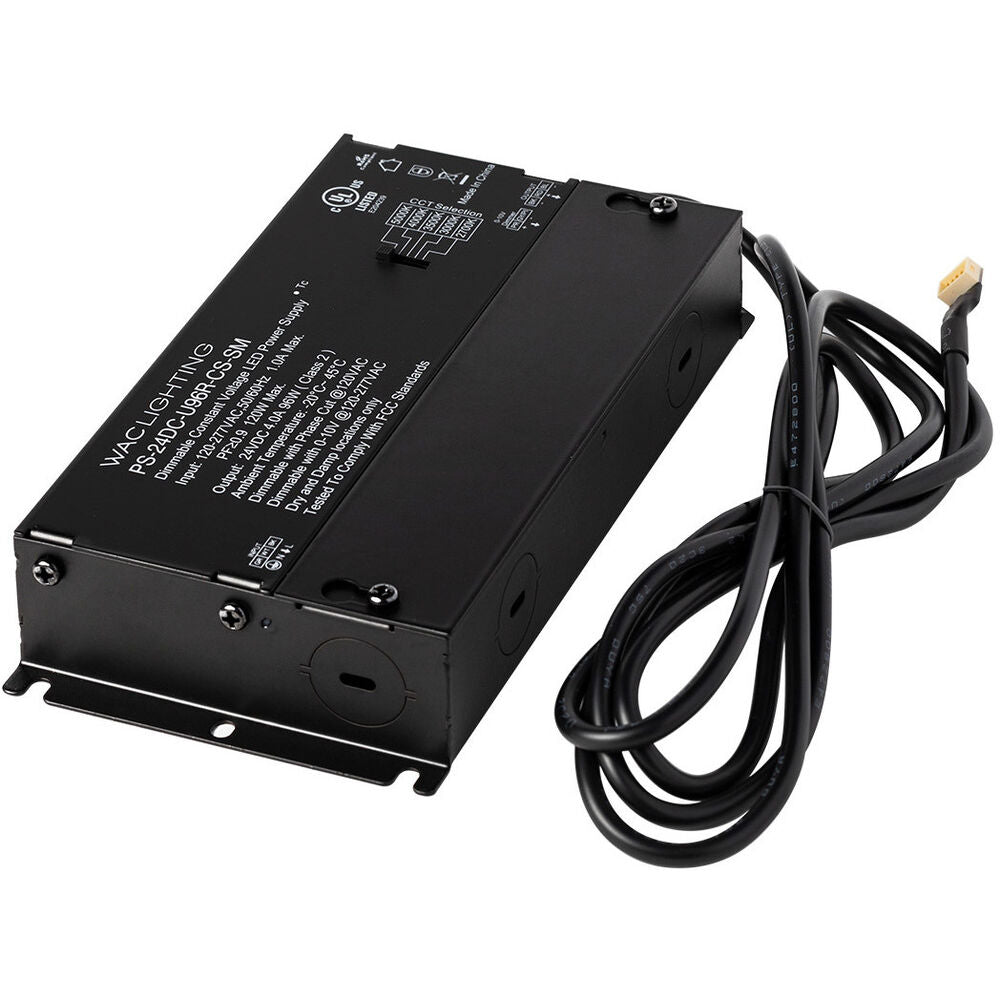

Wac Lighting PS-24DC-U96R-CS-SM InvisiLED / Pixels CCT Remote Power Supply 96W

Product Description

The WAC LIGHTING PS-24DC-U96R-CS-SM is a 96W 24VDC CCT remote power supply designed for LED lighting applications. It accepts a universal input of 120-277VAC, 50/60Hz, and provides a 24VDC output. This power supply features overload and short circuit protection, ensuring safe operation. It is dimmable to 1% with ELV or 0-10V dimmers and allows for color temperature selection.

• Universal input voltage range of 120-277 VAC, 50/60Hz.
• Features ELV and 0-10V dimming control, allowing dimming from 100% down to 1%.
• Includes overload and short circuit protection for enhanced safety and reliability.

Product Highlights

Provides 96W 24VDC power with CCT selection and versatile dimming capabilities.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: PS-24DC-U96R-CS-SM
• Country of Origin: China

Technical Specifications

• Model: PS-24DC-U96R-CS-SM
• Product Type: Power Supply
• Power Output: 96W
• Input Voltage: 120-277VAC
• Output Voltage: 24VDC
• Dimmable: Yes
• Dimming Control: ELV / 0-10V
• Rated Life: 50000 Hours
• Power Factor: >= 0.9
• Output Class: Class 2
• FCC Compliance: Part 15 Class B
• Mounting: Ceiling or wall in all orientations
• Brand: WAC Lighting
• Certifications: UL/cUL, Damp Location
• Output Current Type: DC
• Lighting Technology: LED
